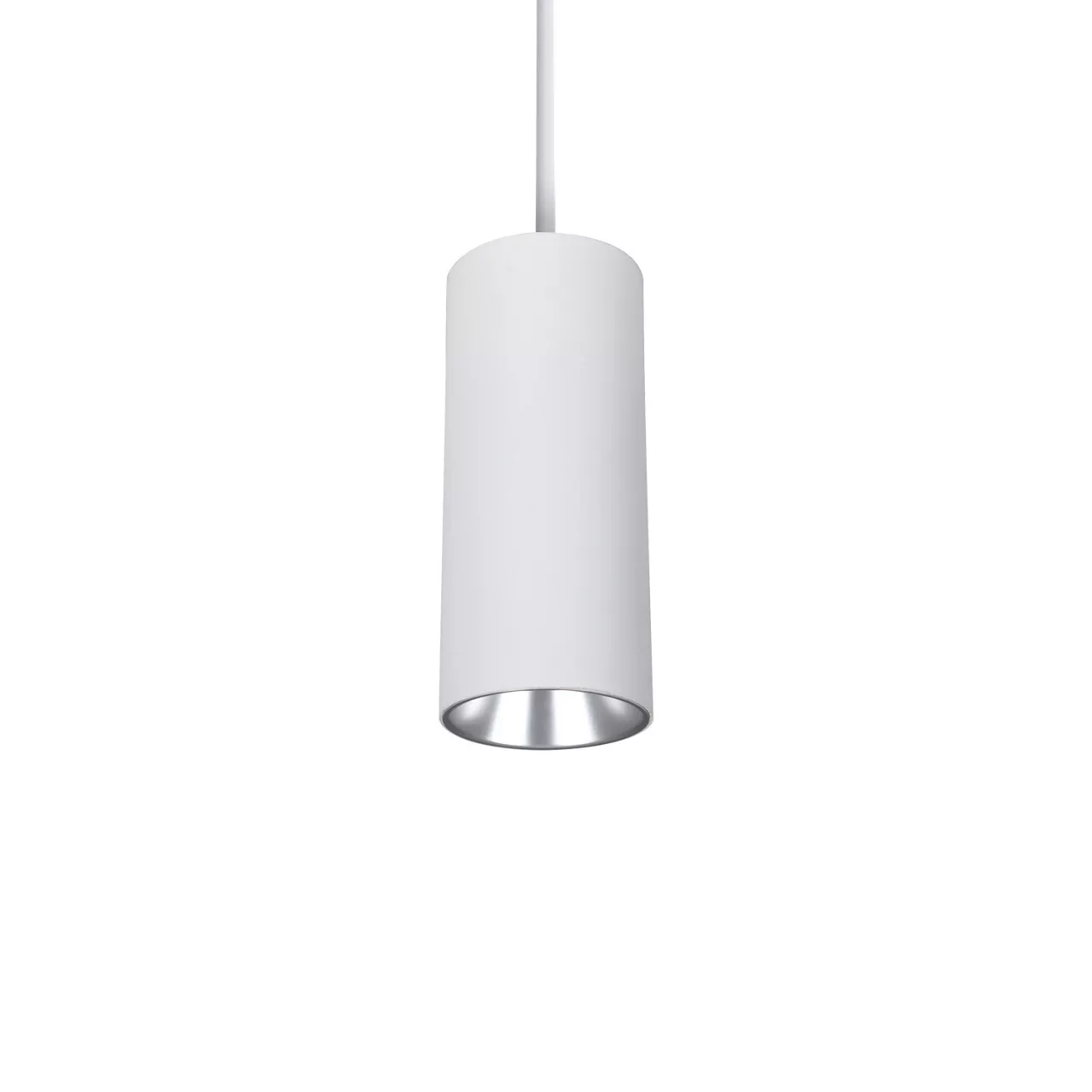

2" Gravity Cylinder (6-inch)

GC2DR - 6in

The Gravity 2-inch architectural cylinder are sleek and powerful. It features a highly configurable single point source LED package and is capable of delivering up to 1500 lumens from a 2-inch aperture. its available in a verity of mounting styles including surface, rigid pendant and cable. The luminaire is available as a round cylinder with our specification grade trimmless trim in 4 distinct finishes and a choice of outputs, CCT’s, CRI options, beam spreads and accessories.

Country of Origin: Please Contact Customer Service

Product Information

  • Product Features

    Aperture Size : 2 in

    Application : Downlight

    Construction Type : New Construction

    Family : Gravity

    Light Source : LED

    Lumen Output : 501-1000,1001-1500

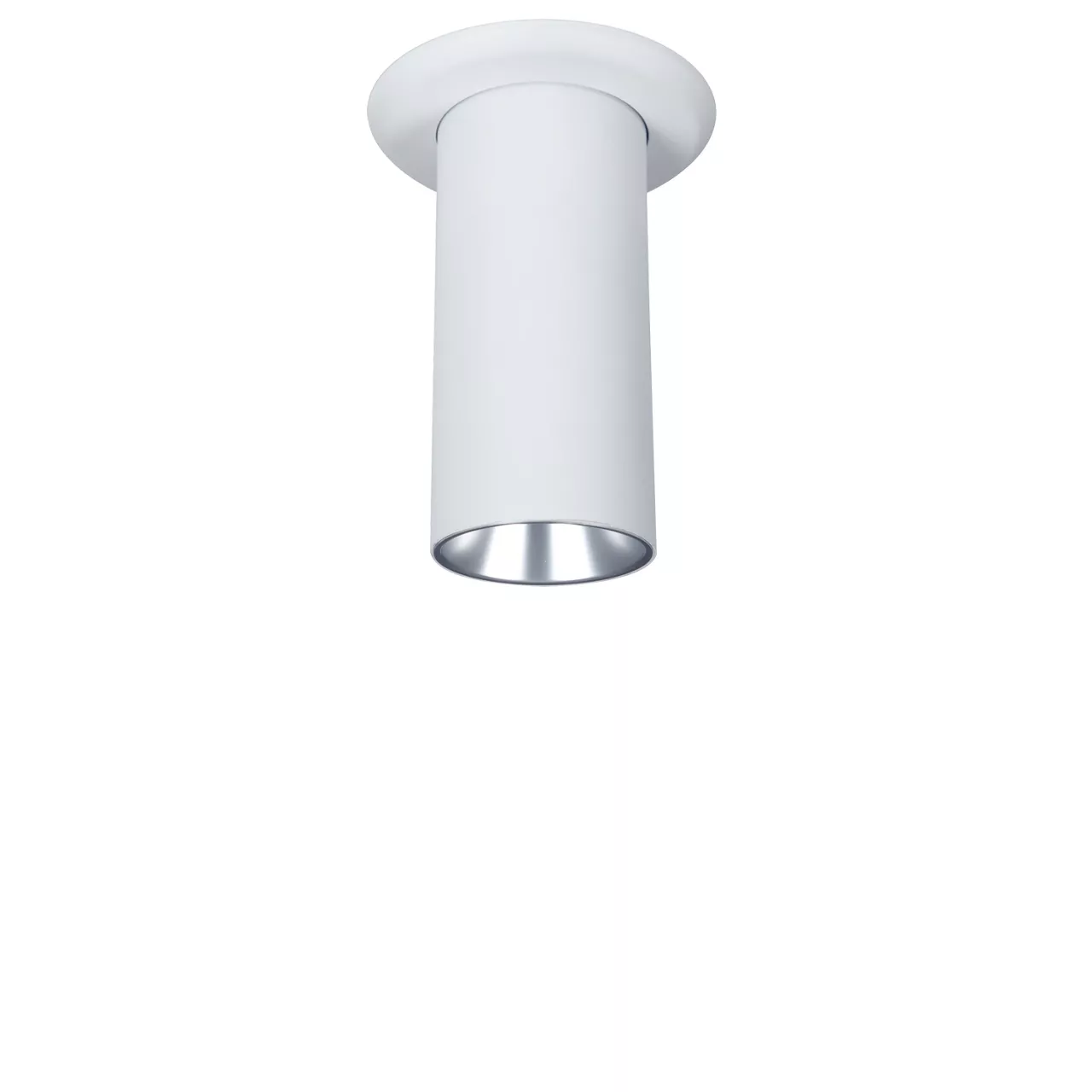

    Mounting : Surface,Pendant,Cable

    Product Shape : Round

    Product Type : Cylinder

    Trim Type : Trim

FEATURES

  • Dedicated High performance 7° Narrow Spot
  • Field changeable 16° to 60° Optics
  • Integral field changeable accessory holder
  • In-field adjustable module height accommodates 1/2” to 1-1/2” ceiling thickness

LED LIGHT ENGINE

  • 10W, 15W & 20W
  • 7° Optic: 3 SDCM, 82/92CRI in 2700K, 3000K & 3500K
  • 16° to 60° Optics: 2 SDCM, 82/92CRI in 2700K, 3000K, 3500K & 4000K
  • Rated life of >50,000 hours L70 based on LED testing per LM-80-08 and projected values using IESNA TM21-11
