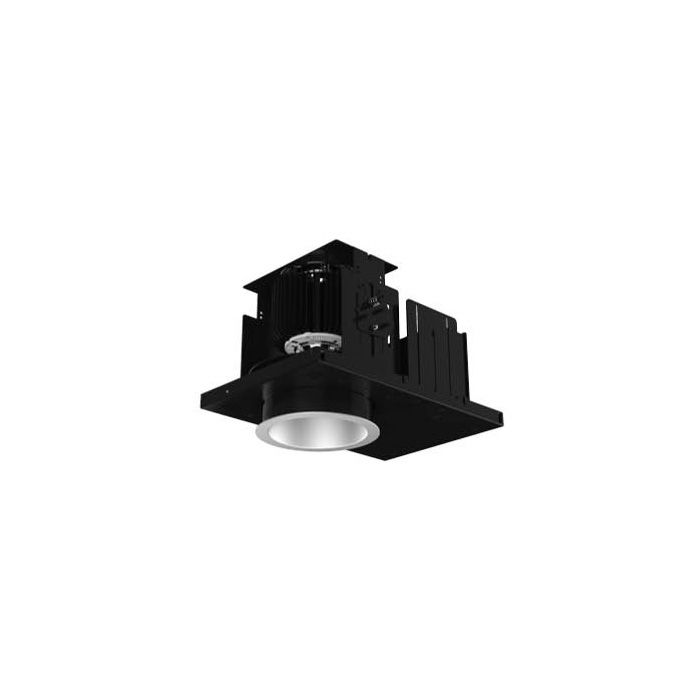

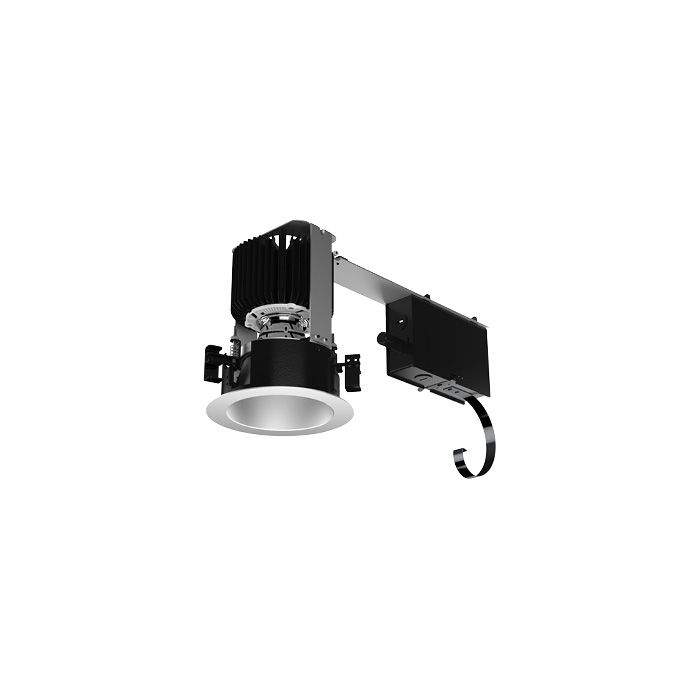

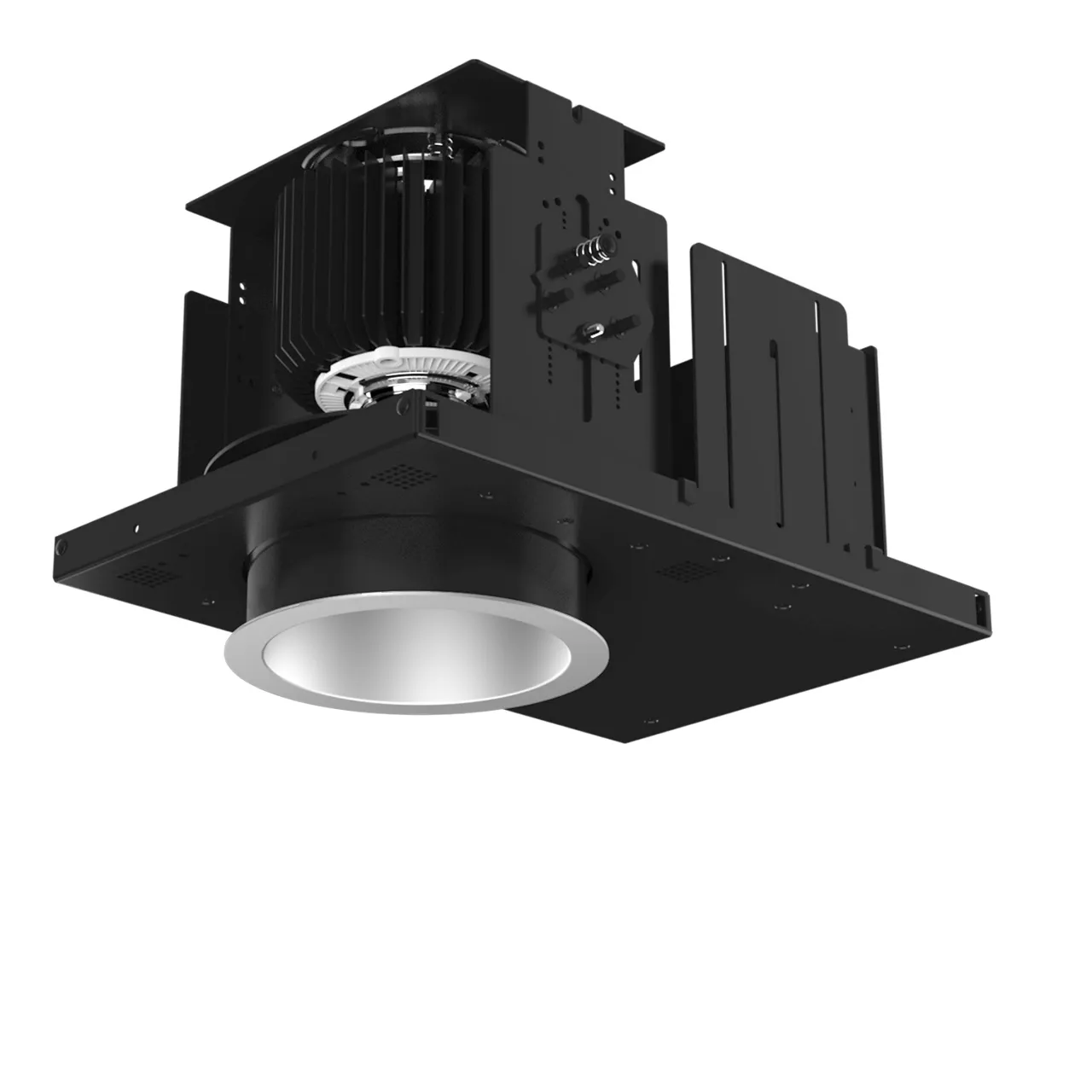

4" Gravity Downlight

GD4DR

The Gravity 4-inch downlight is a high-performance LED downlight ideal for numerous ceiling heights and lighting applications. It features a highly configurable single point source LED package and is capable of delivering up to 4700 lumens. An innovative collar design adjusts to ceiling thicknesses ranging from 1/2" to 2 1/4" offering the ultimate flexibility in the field. The luminaire comes in round or square specification grade trims in 5 distinct finishes and a choice of outputs, CCT’s, CRI options, beam spreads and accessories.

Country of Origin: Please Contact Customer Service

Product Information

  • Product Features

    Aperture Size : 4 in

    Application : Downlight

    Construction Type : New Construction

    Family : Gravity

    Light Source : LED

    Listings : Energy Star,Wet Location

    Lumen Output : 1001-1500,1501-2000,2001-3000,3001-4000,4001-5000

    Product Shape : Round

    Product Type : Recessed

    Trim Type : Trim , Trimless



FEATURES

■ High delivered lumens maintained in ceiling from 1/2” to 2 1/4” using patent pending design

■ Future proof luminaire with easy module install via twist-to-lock mounting and driver access through raised junction box

LED LIGHT ENGINE

■ 10W, 14W, 19W, 24W, 29W, 34W, 41W, 46W & 56W

■ 82/92 CRI at 2700K, 3000K, 3500K & 4000K with 2 Step MacAdam (2 SDCM)

■  Rated life of >50,000 hours L70 based on LED testing per LM-80-08 and projected values using IESNA TM21-11
