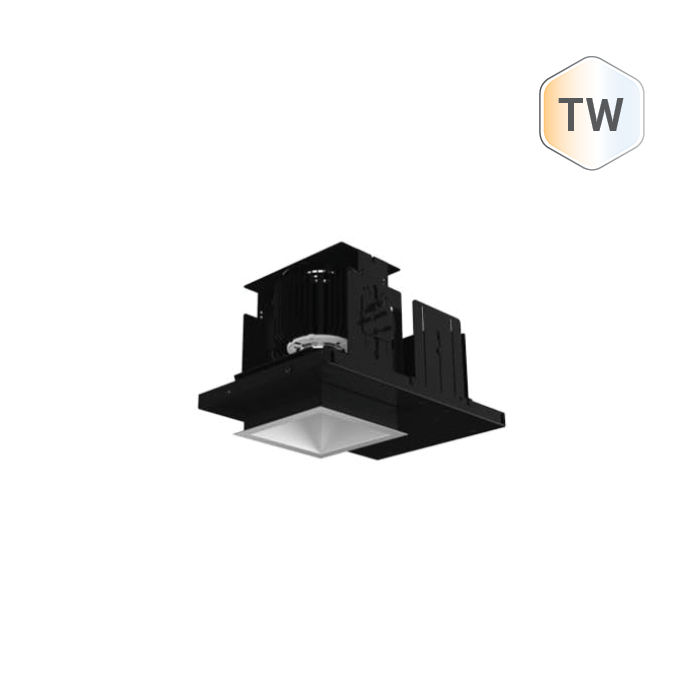

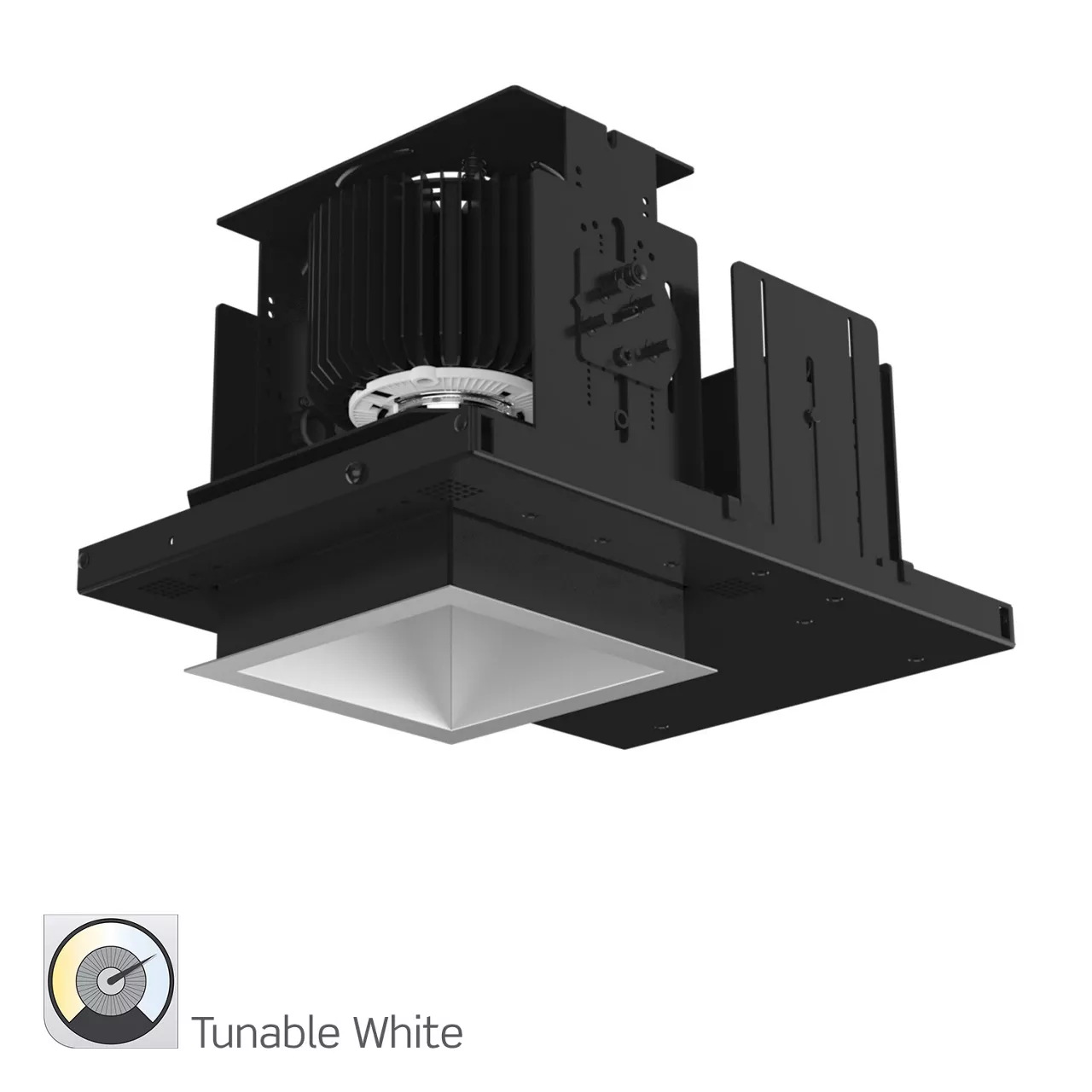

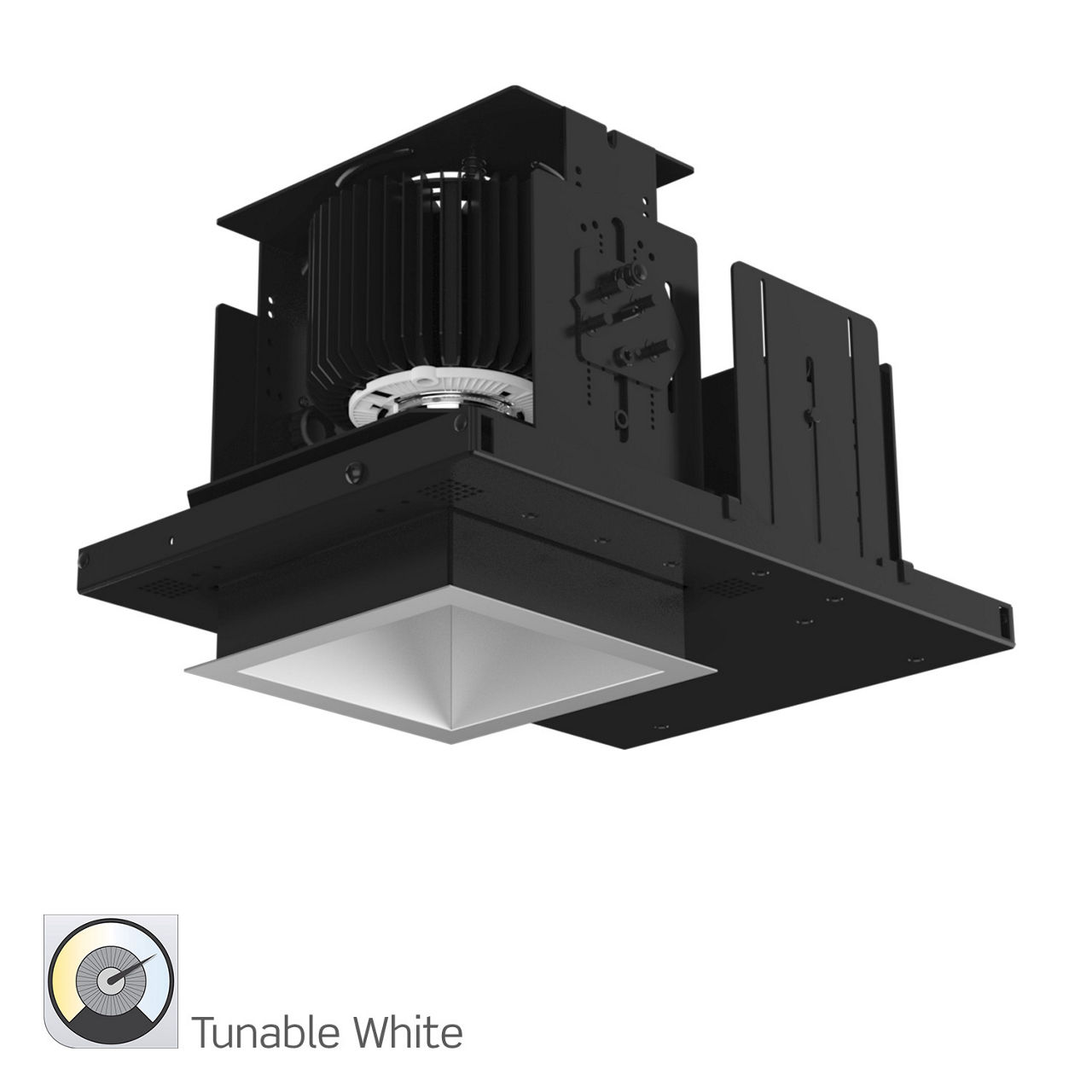

4" Square Tunable White Gravity Downlight

GD4DSTW

Tuning range from 2100K to 4300K

The Gravity Downlight is a high-performance LED luminaire ideal for a wide range of ceiling heights and lighting applications. The modular design allows for in-field modifications. This 4-inch downlight offers an innovative collar design with lockable adjustment for ceiling thicknesses ranging from 1/2" to 2-1/4". The Optic and LED adjust with the collar height to eliminate reduction in light output.

A highly configurable single point source LED package is common across the line. Tunable White LED technology controls the color temperature and intensity, providing brilliant illumination with high, and more vibrant, color rendering across the tuning range from 2100K to 4300K. An extensive choice of beam spreads and dimming configurations is available. Field changeable twist-and-lock Optics available in 14°, 20°, 30°, 40°, and 50° deliver precision performance. Specification Grade Trims provide comfortable illumination with 55° cutoff and elegant finishes.

Specifications

Instruction Sheet

Technical Information

  • Product Features

    Aperture Size : 4-In

    Product Category : Downlight

    Construction Type : New Construction

    Product Family : Gravity

    Product Type : Downlight

    Light Source Features : Tunable White

    Lumen Output : 1000-1500,1501-2000,2001-2500,2501-3000

    Product Shape : Square

    Emergency Battery Back-up : N

    Trim Type : Reflector

    Listings : Wet Location

  • Standards and Certifications

    Buy American Act (BAA) Compliant : Yes
