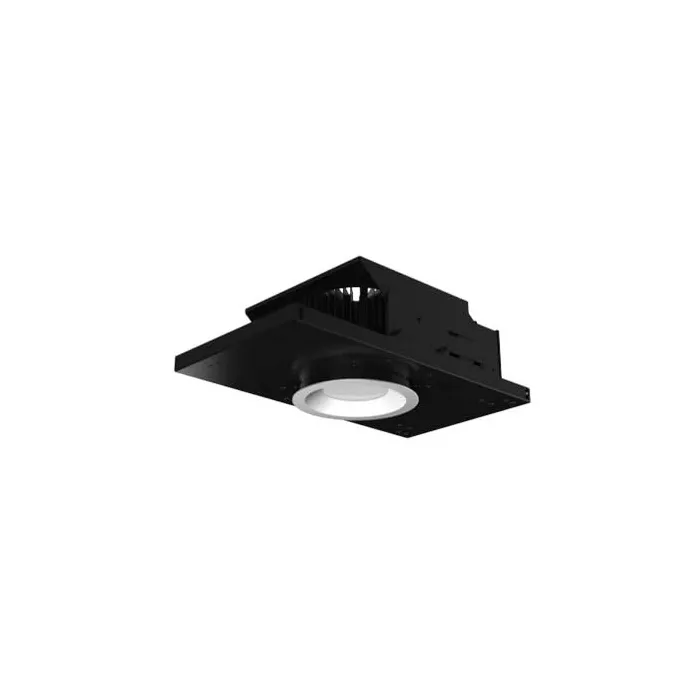

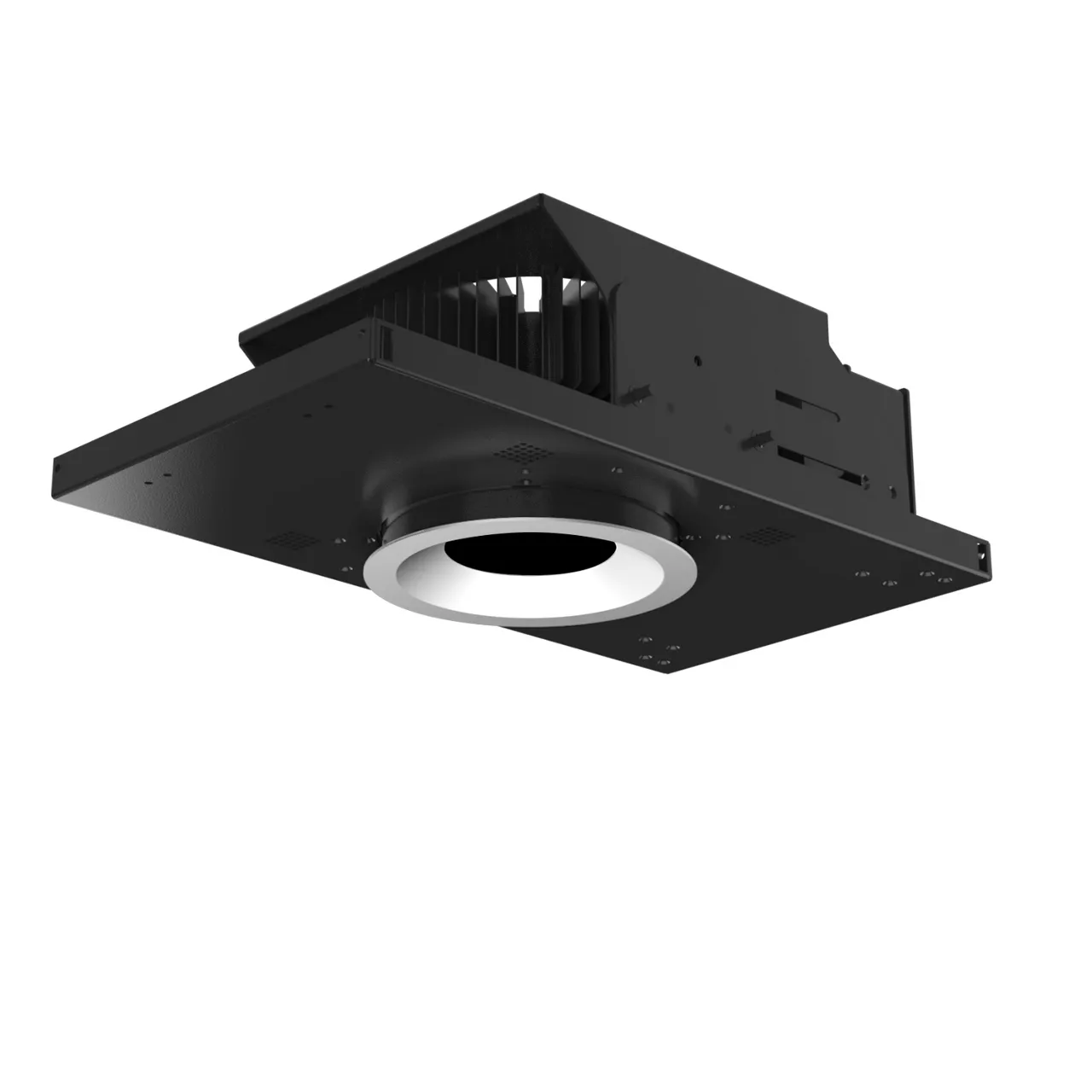

4" Shallow Gravity Downlight

GDS4DR

Only takes up 3.9-inches of plenum space

The Gravity Downlight is a high-performance LED luminaire ideal for a wide range of ceiling heights and lighting applications. The modular design allows for in-field modifications. The Shallow downlight only takes up 3.9-inches of plenum space, and accommodates ceiling thicknesses from 5/8" to 1-1/4" providing uniform, consistent lighting throughout the application.

A highly configurable single point source LED package is common across the line with an extensive choice of lumen packages, color temperatures, beam spreads, and dimming configurations. Field changeable twist-and-lock Optics available in 14°, 20°, 30°, 40°, and 50° deliver precision performance. Specification Grade Trims provide comfortable illumination with 55° cutoff and elegant finishes.

Specifications

Instruction Sheet

Resources

IES

Technical Information

  • Product Features

    Aperture Size : 4-In

    Product Category : Downlight

    Construction Type : New Construction

    Product Family : Gravity

    Light Source Features : Static White

    Listings : Wet Location

    Lumen Output : 1001-1500,1501-2000,2001-3000,3001-4000,4001-5000

    Product Shape : Round

    Product Type : Shallow

    Trim Type : Reflector

    Emergency Battery Back-up : Y

  • Standards and Certifications

    Buy American Act (BAA) Compliant : Yes
