Gravity Recessed Multiple
GRTR
Expertly engineered to complement the Gravity family of Downlights and Cylinders

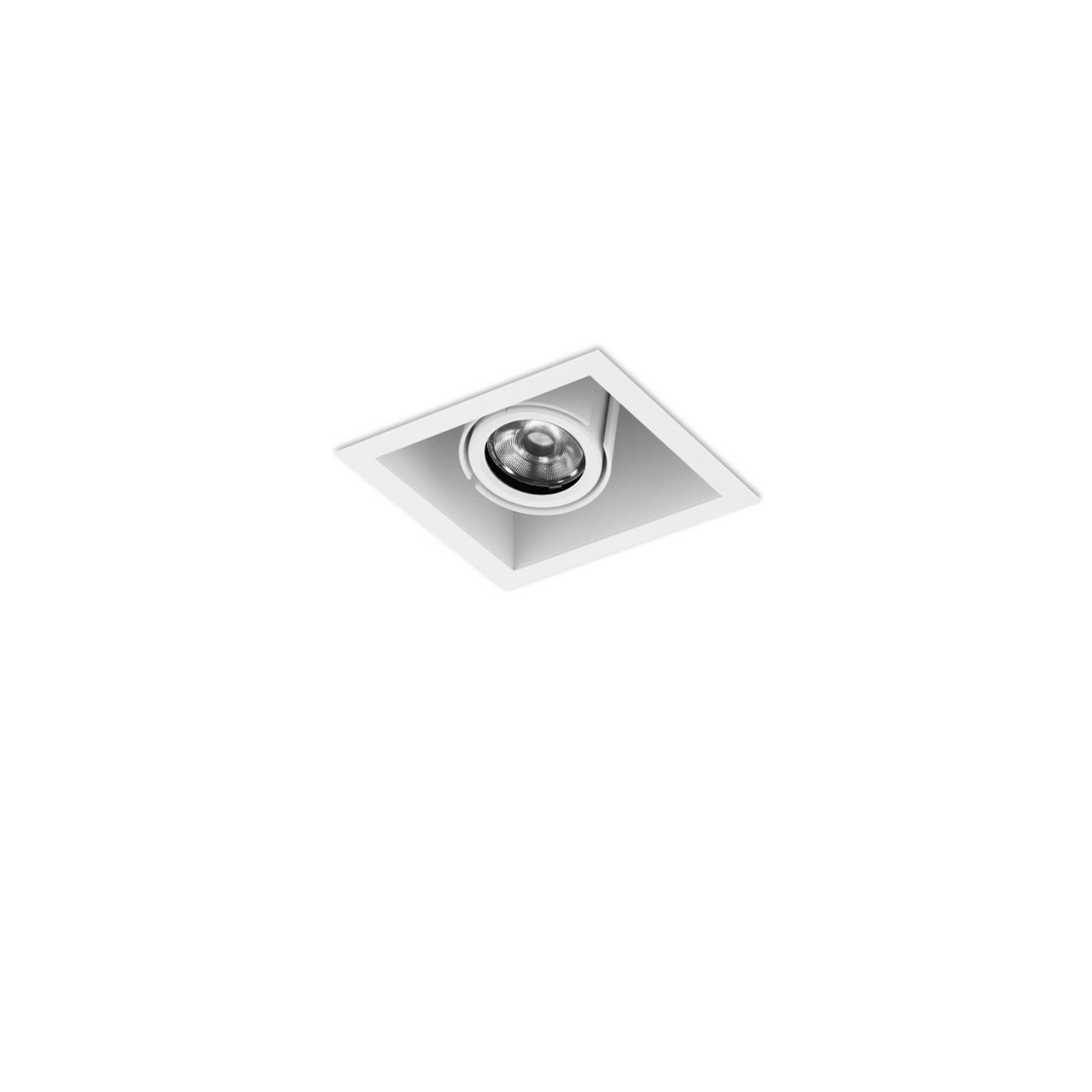

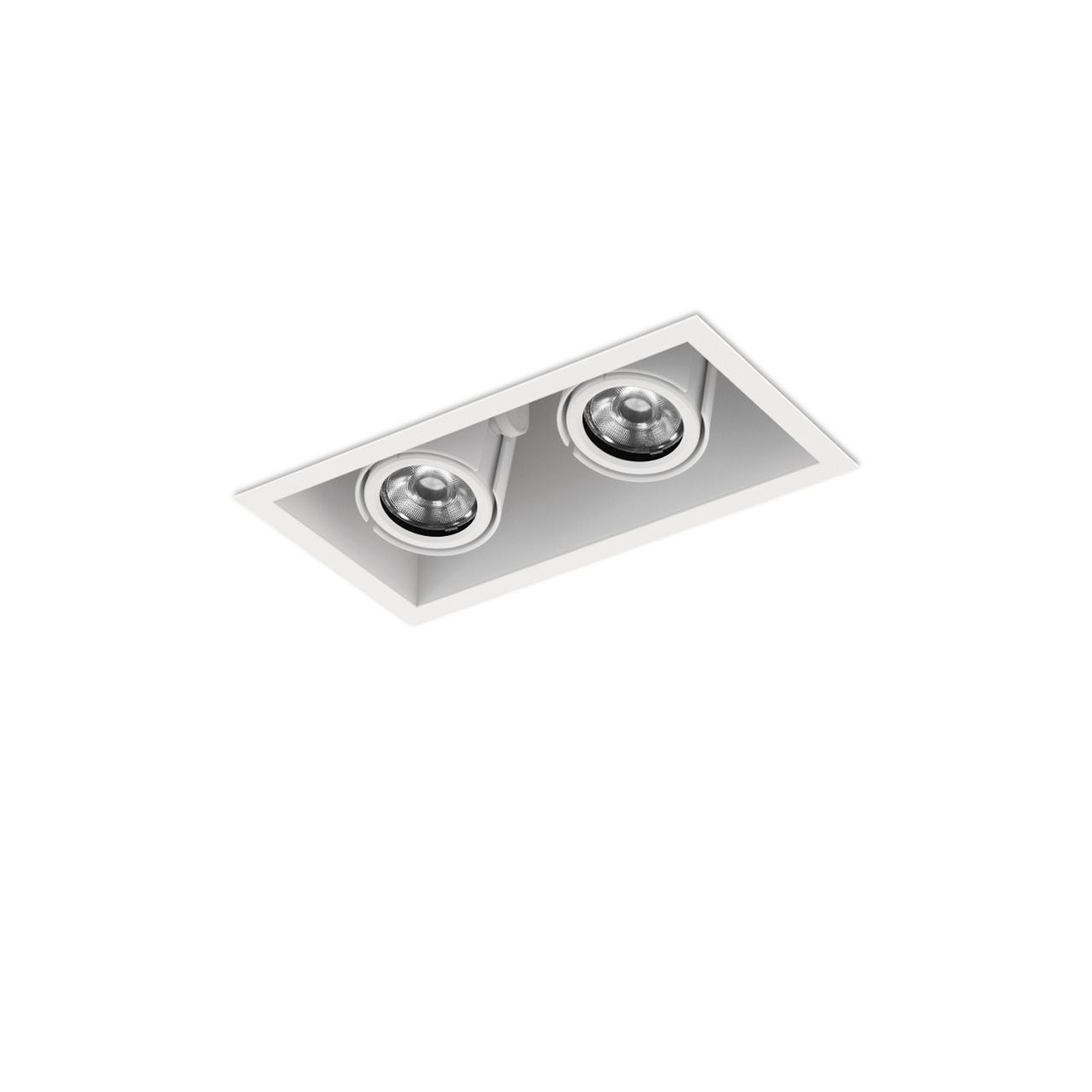

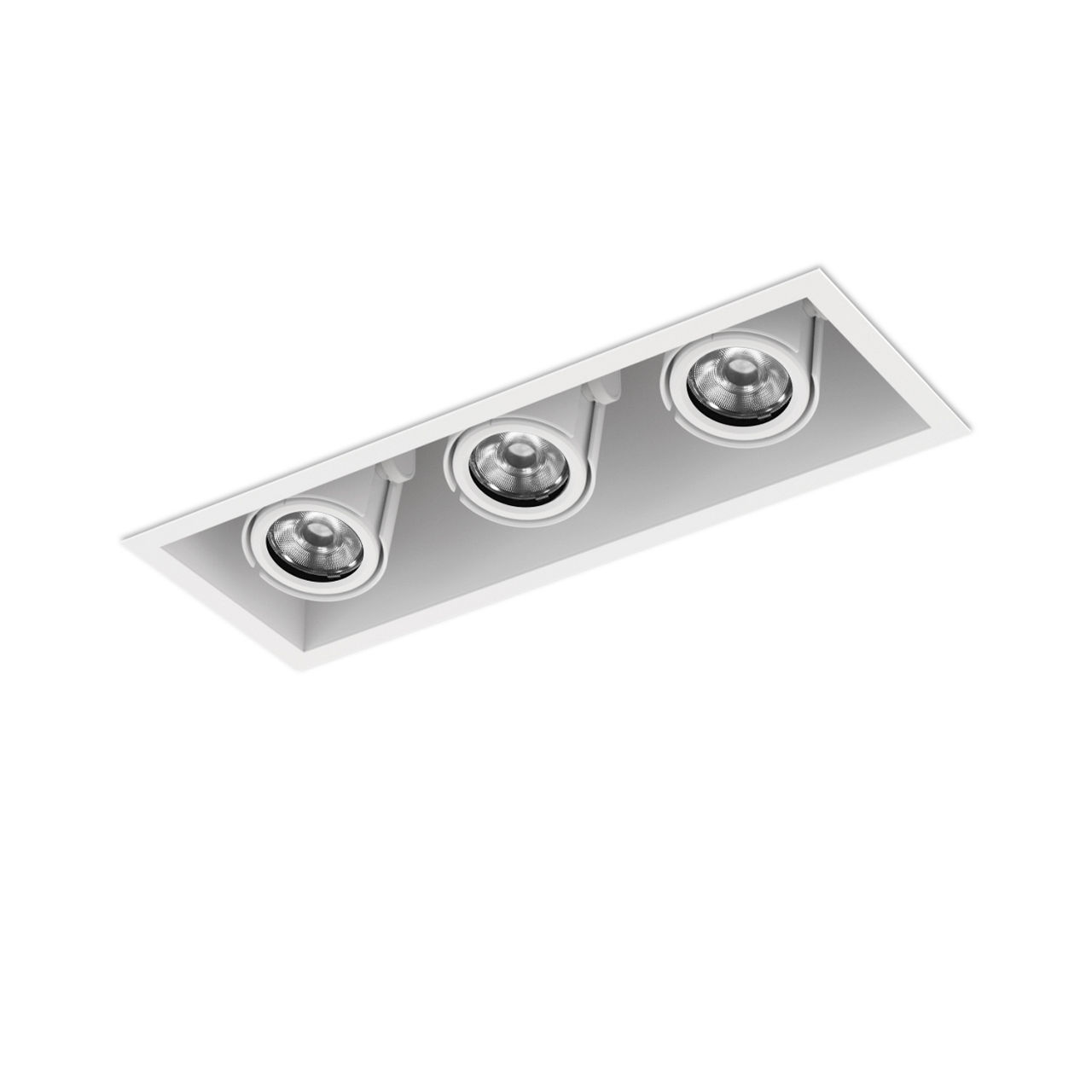

Designed on a single platform, the Gravity Recessed Multiple is expertly engineered to complement the Gravity family of downlights and cylinders. Sleek design with no visible hardware or heat sink. Select from single to three (3) head lamp configurations. Field changeable TIR Optics: 14° Spot, 24° Narrow Flood, 36° Flood, and 50° Wide Flood deliver precision beam control and aiming. Available in 2700K, 3000K, 3500K, and 4100K; 2 SDCM binning ensures color consistency across luminaires, select from 82 or 92 CRI. Optional external battery back-up powers one (1) head up to 7W at a minimum of 750 lumens for 90 minutes.
Non-IC Rated frame-in kit is equipped with quick-connect to trim assembly for easy installation. Luminaire can accommodate up to 1-1/2" ceiling thickness and is supplied with butterfly brackets to allow up-to 3" vertical adjustment. Suitable for Damp Locations.
Specifications
Instruction Sheet
IES
Technical Information
Product Features
Construction Type : New Construction
Product Family : Gravity
Light Source Features : Static White
Listings : Damp Location
Lumen Output : 1501-2000,2001-3000,3001-4000
Product Category : Downlight
Product Type : Multiple
Trim Type : Trim Assembly
Emergency Battery Back-up : Y
