3.5" MX G2 Wall Wash Non-IC Naked Downlight
MXFG2DRTR Wall Wash

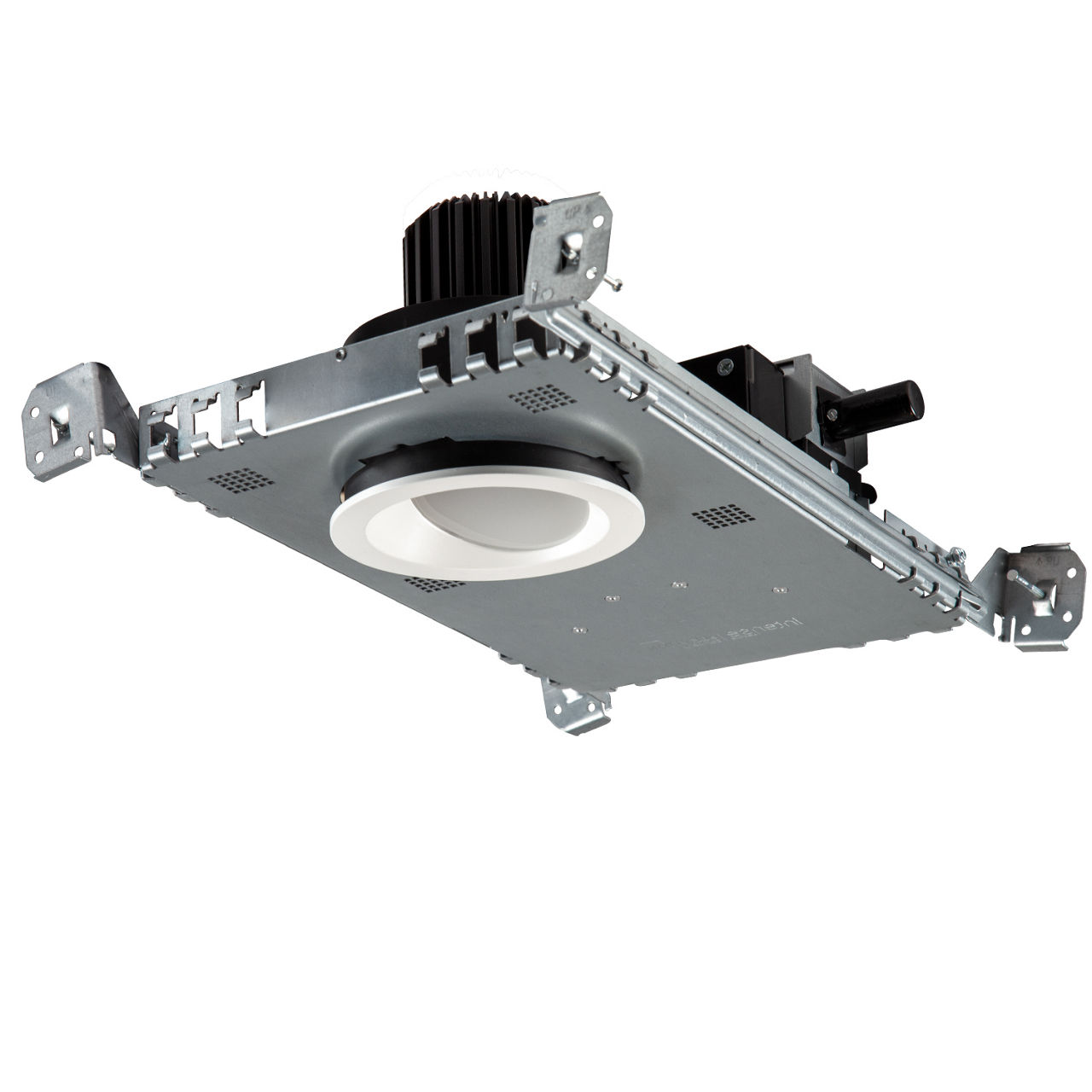

The MX Wall Wash Non-IC Naked Downlight matches the look and performance of the standard MX Downlight from below the ceiling, delivering high performance wall wash lighting with asymmetric distribution provides uniform vertical illumination. The standard in-field adjustable collar accommodates ceiling thicknesses from 1/2" to 1-1/4", with the extended collar option lengthening the range to 2-1/2”. Color temperature options range from 2700k to 4100k in both 82 and 92 CRI. Standard dimming down to 1% with 0-10V, Phase (Forward/ Reverse), EldoLED, and Lutron® dimmer options. Emergency external battery back-up operates the load at a minimum of 500lm to 850lm for 90 minutes, depending on backup wattage. Remote Test Switch included.
Specifications
Instruction Sheet
IES
Technical Information
Product Features
Aperture Size : 3-1/2-In,4-In
Product Type : Wall Wash
Construction Type : New Construction
Product Family : MX
Light Source Features : Static White
Listings : Damp Location,Non-IC
Lumen Output : 101-500,501-1000
Product Shape : Round
Product Category : Downlight
Trim Type : Wall Wash
Emergency Battery Back-up : Y
