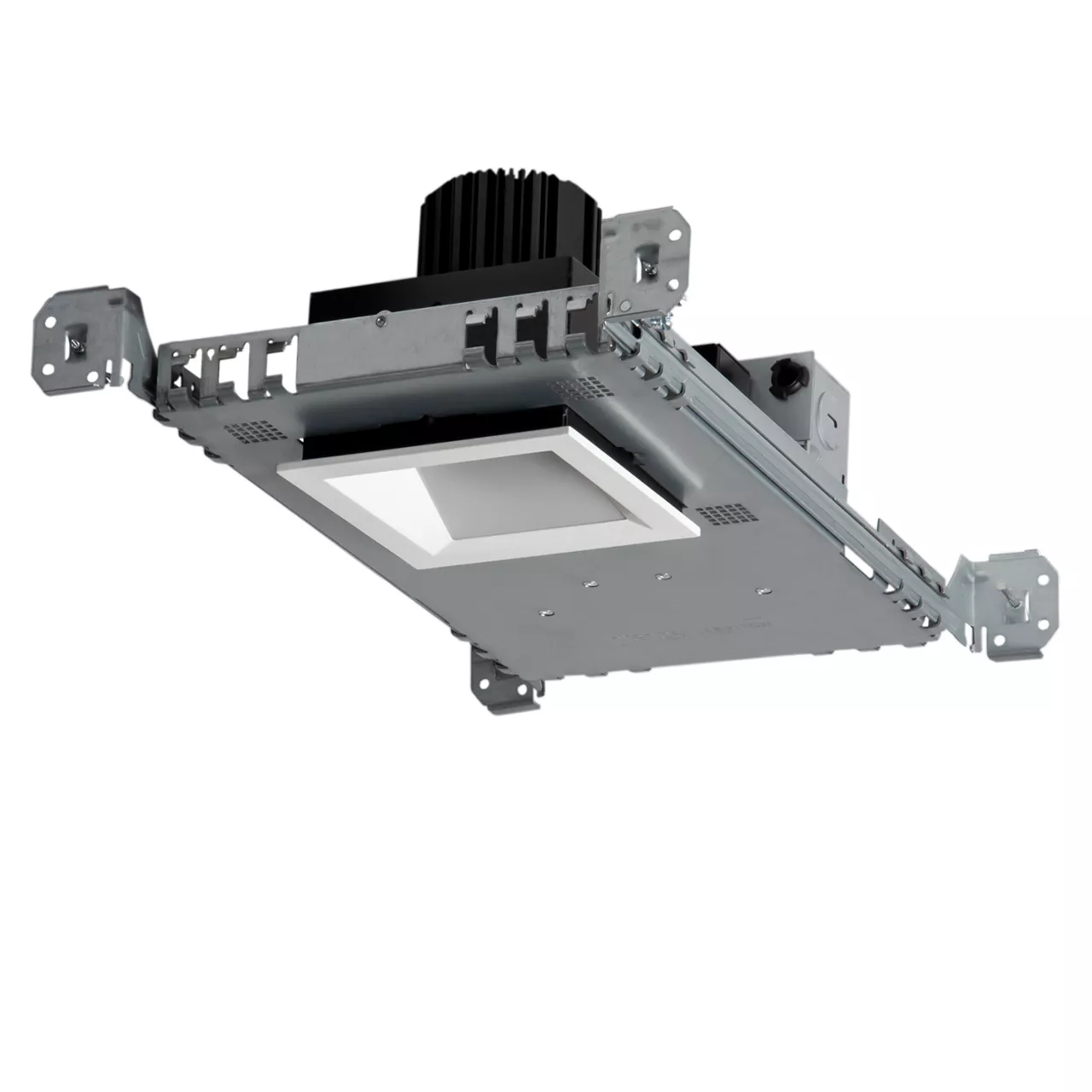

3.5" MX Naked G2 Square LED Wall Wash Square
MXFG2DSTR Wall Wash Square
The new MX Naked lensed wall wash matches the look and performance of the standard MX Wall Wash downlight from below the ceiling in an economical Non-IC design. With a new shallow housing option measuring under 4-inches and an in-field adjustable collar, MX Naked provides even more options in an affordable open frame housing. Color temperature options range from 2700k to 4100k in 82 and 92 CRI. Standard 1%, 0-10V dimming with phase and Lutron options available as well as EM.
Specifications
Instruction Sheet
IES
Technical Information
Product Features
Aperture Size : 3-1/2-In,4-In
Product Type : Wall Wash
Construction Type : New Construction
Product Family : MX
Light Source Features : Static White
Listings : Damp Location,Non-IC
Lumen Output : 501-1000,1001-1500
Product Shape : Square
Product Category : Downlight
Trim Type : Wall Wash
Emergency Battery Back-up : Y
Features & Benefits
LED Light Engine
- 92 CRI & 82 CRI in 2700K, 3000K, 3500K and 4100K with 2 SDCM binning
- >50,000 hours L70 (rated life at 70% output)
