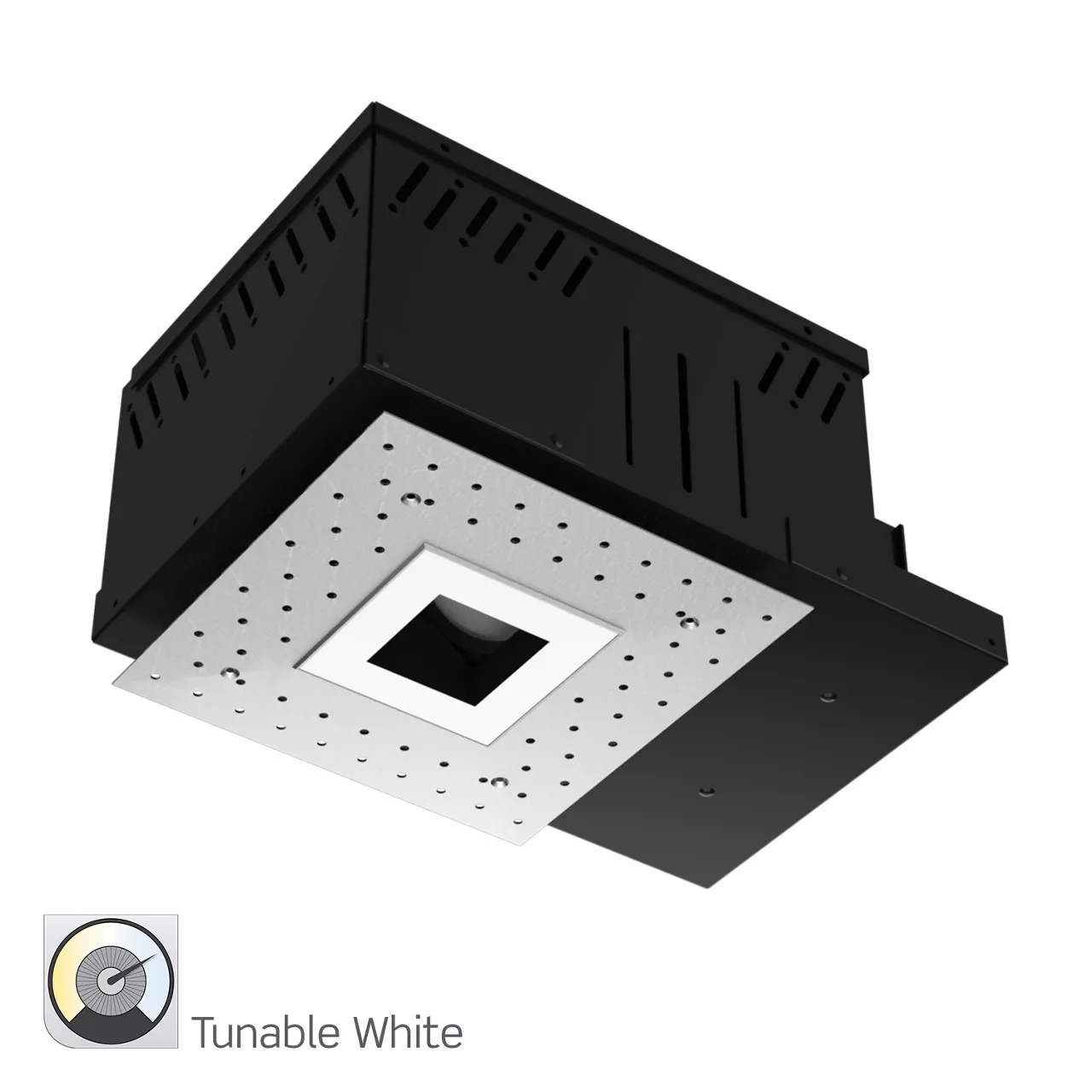

3.5" MX G2 Adjustable Trimless Tunable White Square Downlight

Tunable White LED Technology in a trimless square housing with adjustable, lockable aiming

The MX Adjustable Architectural Square Downlight is a dynamic solution for consistent lighting and limitless design possibilities. Inside the 3-1/2" aperture resides a compact yet powerful light engine with a custom extruded aluminum heat sink that ensures proper heat dissipation. Aiming with 35° vertical and 360° horizontal locking adjustment with 1/2” regress and 90° turns with 1” regress for greater visual comfort. Perforated mesh frame easily adheres to joint compound for seamless trimless mounting. Tunable White LED technology contros color temperature and intensity, providing brilliant illumination with high and more vibrant color rendering across the tuning range from 2700K to 6500K at a minimum of 92 CRI. High performance TIR Optics with field changeable 14°, 26°, 30°, and 45° beam options deliver quality light precisely where you need it.

Housing types include Air-Tight Insulated Ceiling (IC), CCEA Chicago Plenum, and Non-IC Rated. Housings accommodate a 5/8” ceiling thickness with extended collar options available for ceilings up to 2" thick. The Downlight, Adjustable, and Wall Wash Housing Mechanisms are field interchangeable for easy luminaire conversion. Standard dimming down to 1% with 0-10V, Phase (Forward/ Reverse), EldoLED, and Lutron® dimmer options, the DMX512 RDM option dims to 0.1%. Emergency external battery back-up operates the load at a minimum of 500lm to 850lm for 90 minutes, depending on the backup wattage. Remote test switch included. Suitable for Damp and Wet Locations.
