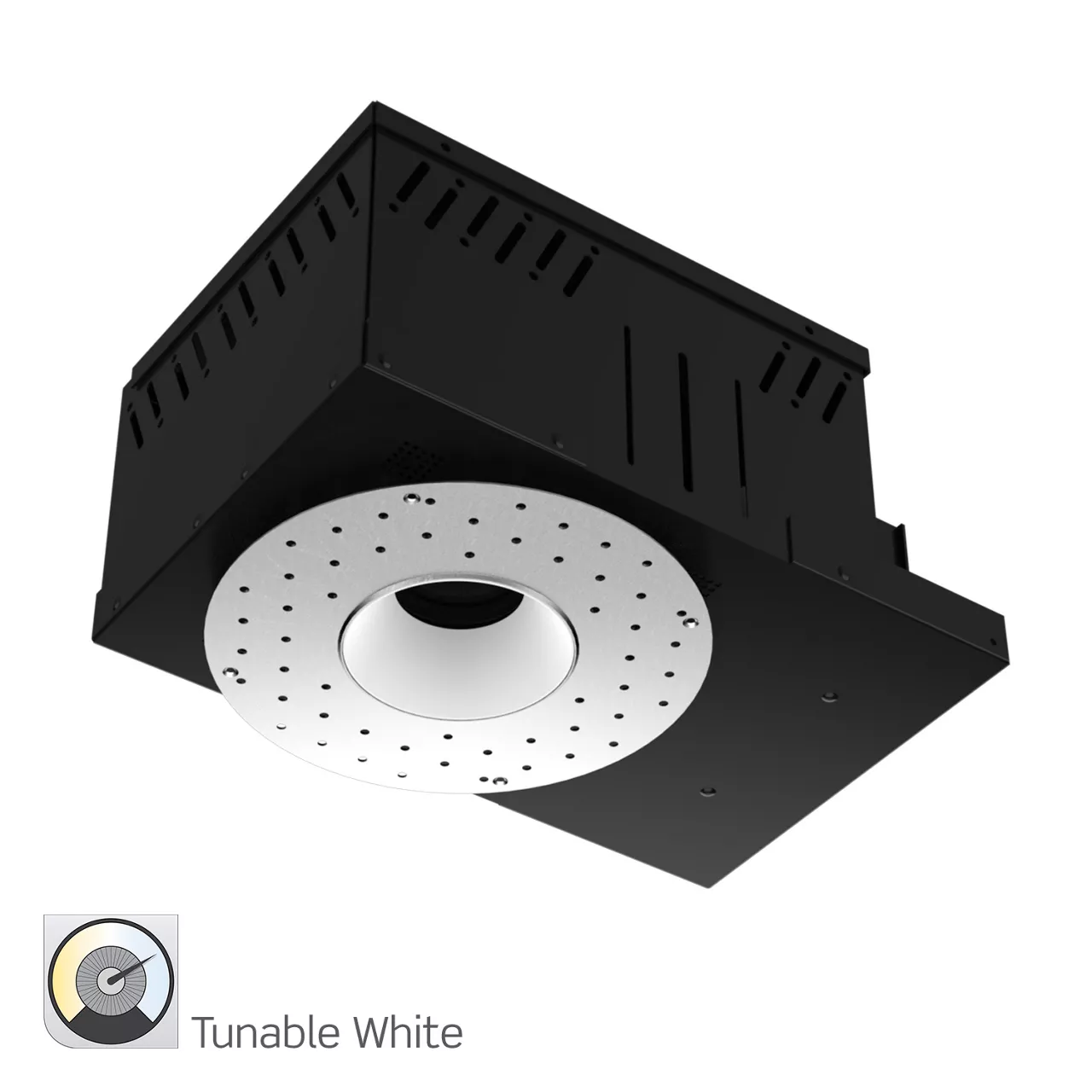

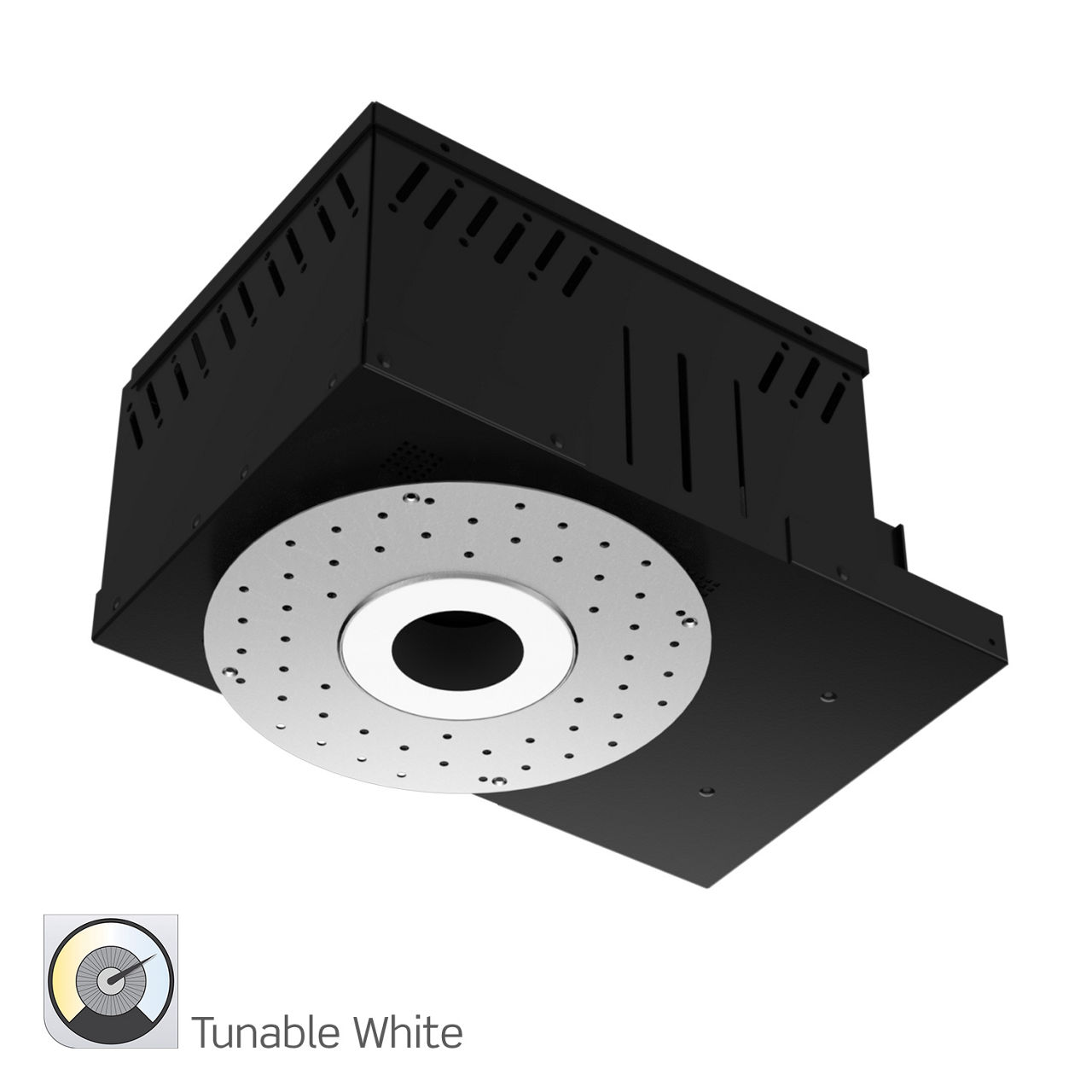

3.5" MX G2 Trimless Tunable White Downlight
MXG2DRTLTW
MX Tunable White downlighting features a compact yet powerful light engine inside a 3.5” aperture. Custom, high performance TIR optics ranging from 14° to 45° deliver quality light precisely where you need it. A common platform across the entire family featuring 90 CRI TunableWhite (6500K- 2700K) and three versatile lumen packages makes specifying easy. Smooth, flicker-free architectural dimming options include 0-10V, DALI, DMX, and EldoLED down to 0.1%. Die cast trims are available in a variety of standard finishes and can be configurable in round, square, trim and trimless options.
Product Information
Product Features
Aperture Size : 3-1/2 in,4 in
Application : Downlight
Construction Type : New Construction
Family : MX
Light Source : LED
Light Source Features : Tunable White
Listings : Wet Location,Non-IC,Air-Tight IC,CCEA Chicago Plenum
Lumen Output : 501-1000
Product Shape : Round
Product Type : Recessed
Trim Type : Trimless
features
- Multiple architectural trim option
- Field changeable 14° 26°, 30° or 45° optics
led light engine
- Tuning range from 2700K-6500K at a minimum of 92 CR
- 3 SDCM binning throughout the tunable CCT range
- Wattage: 8W to 17W
- Rated life of >50,000 hours L70 based on LED testing per LM-80-08 and projected values using IESNA TM21-11
