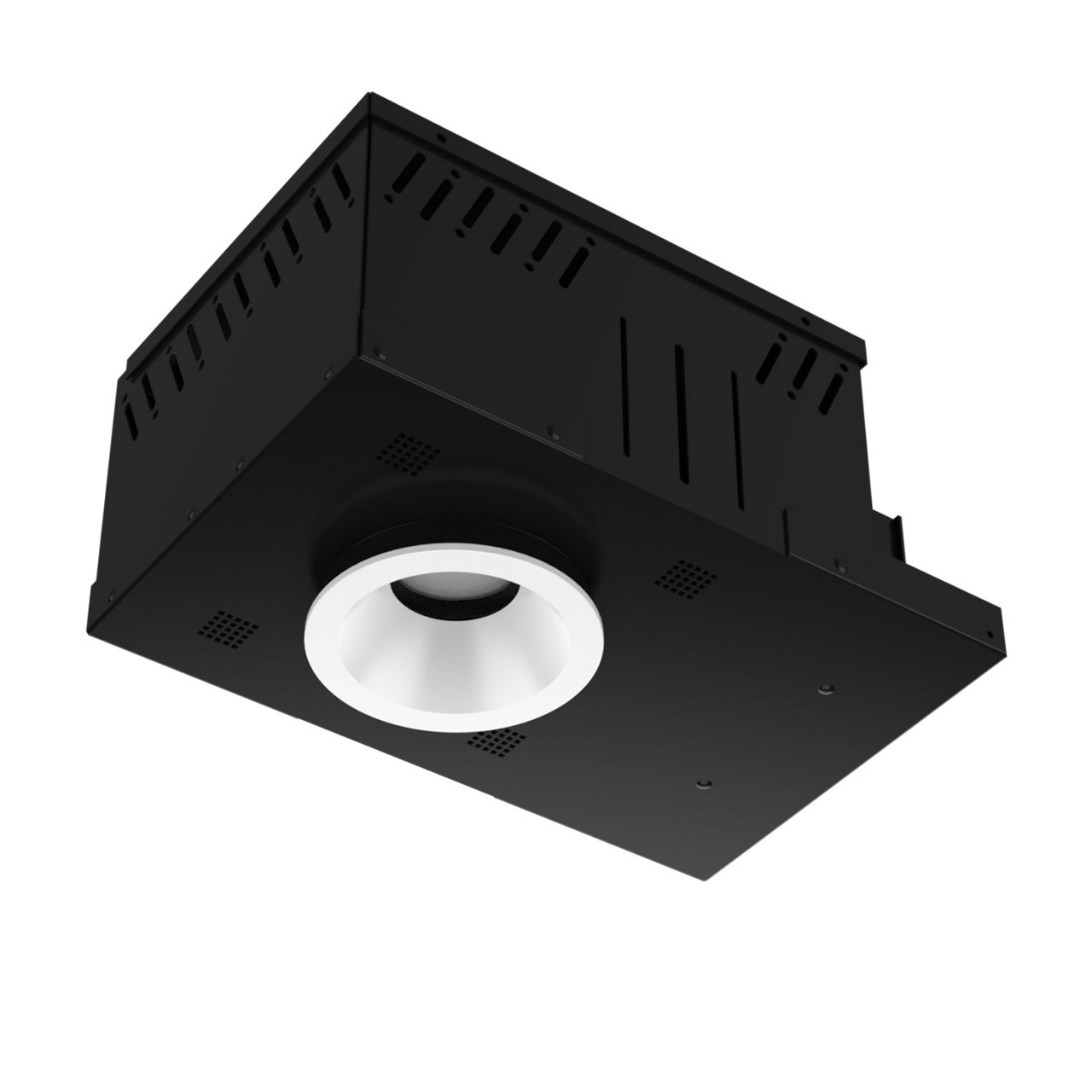

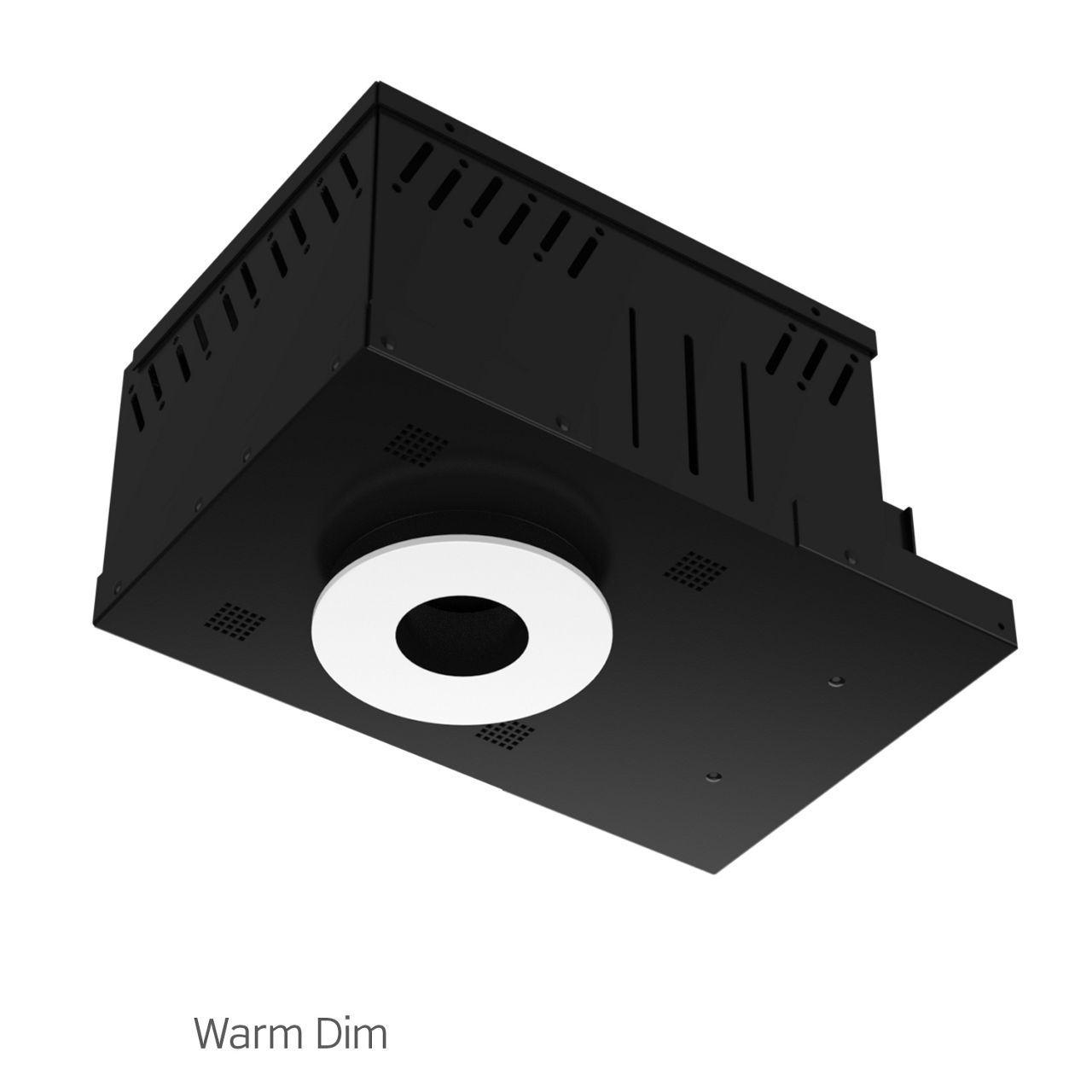

3.5" MX G2 Downlight

Deliver quality light precisely where you need it

The MX Architectural Downlight is a dynamic solution for consistent lighting and limitless design possibilities. Inside the 3-1/2" aperture resides a compact yet powerful light engine with a custom extruded aluminum heat sink that ensures proper heat dissipation. High performance TIR Optics: a dedicated 9° with field changeable 12°, 24°, 36°, and 50° options deliver quality light precisely where you need it. Available in 2700K, 3000K, 3500K, and 4100K; 2 SDCM binning ensures color consistency across luminaires, select from 82 or 92 CRI. Regressed, Pinhole, Non-Conductive, and Wood Ceiling Trims available with lensed version options available, suitable for wet locations.

Housing types include Air-Tight Insulated Ceiling (IC), CCEA Chicago Plenum and Non-IC Rated. Housing accommodates a 5/8” ceiling thickness with extended collar options available for ceilings up to 1" or 2" thick. The downlight, adjustable, and wall wash housing mechanisms are all field interchangeable for easy luminaire conversion. Standard dimming down to 1% with 0-10V, Phase (Forward/ Reverse), EldoLED, and Lutron® dimmer options. Emergency external battery back-up operates the load at a minimum of 500lm to 850lm for 90 minutes, depending on the backup wattage. Remote test switch included.
