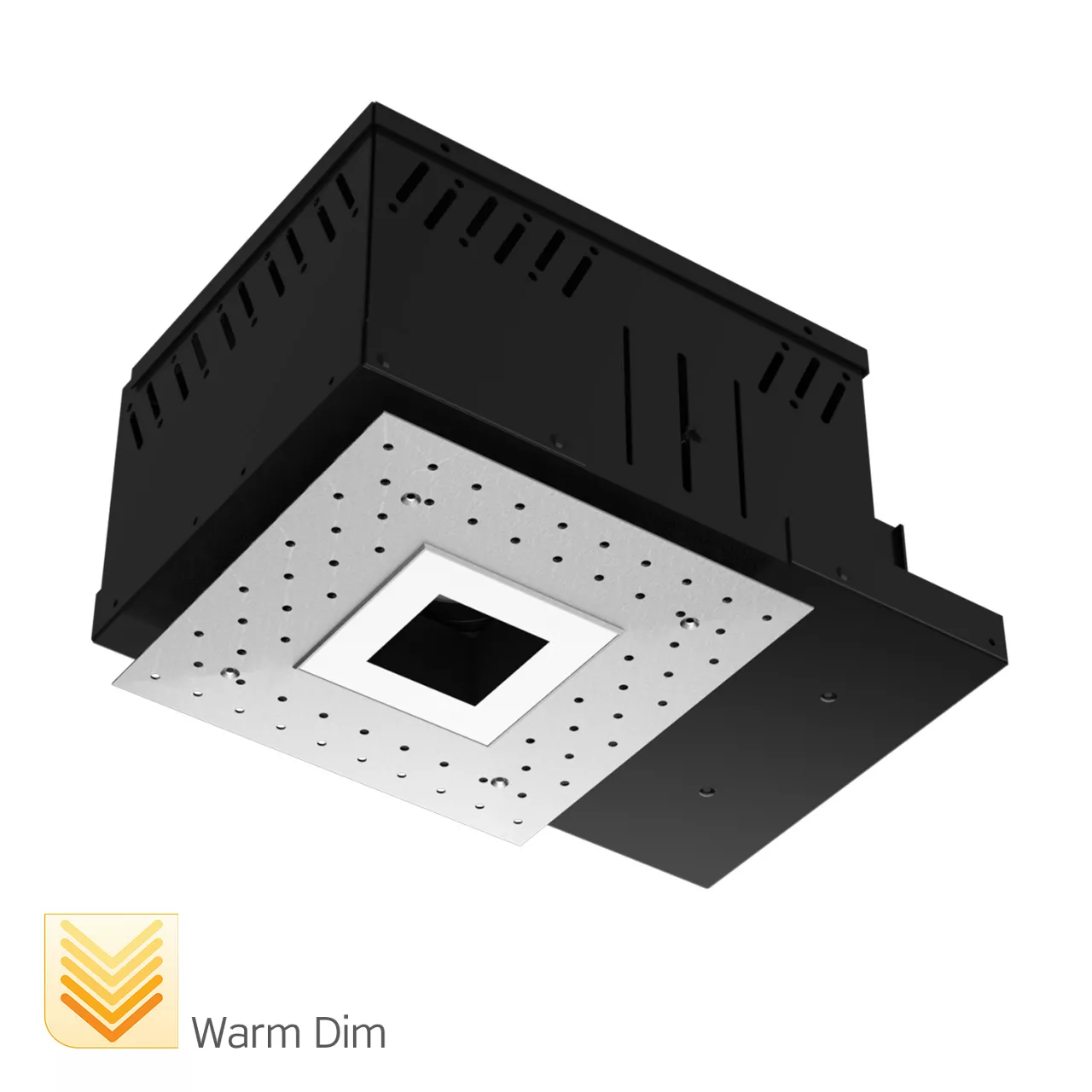

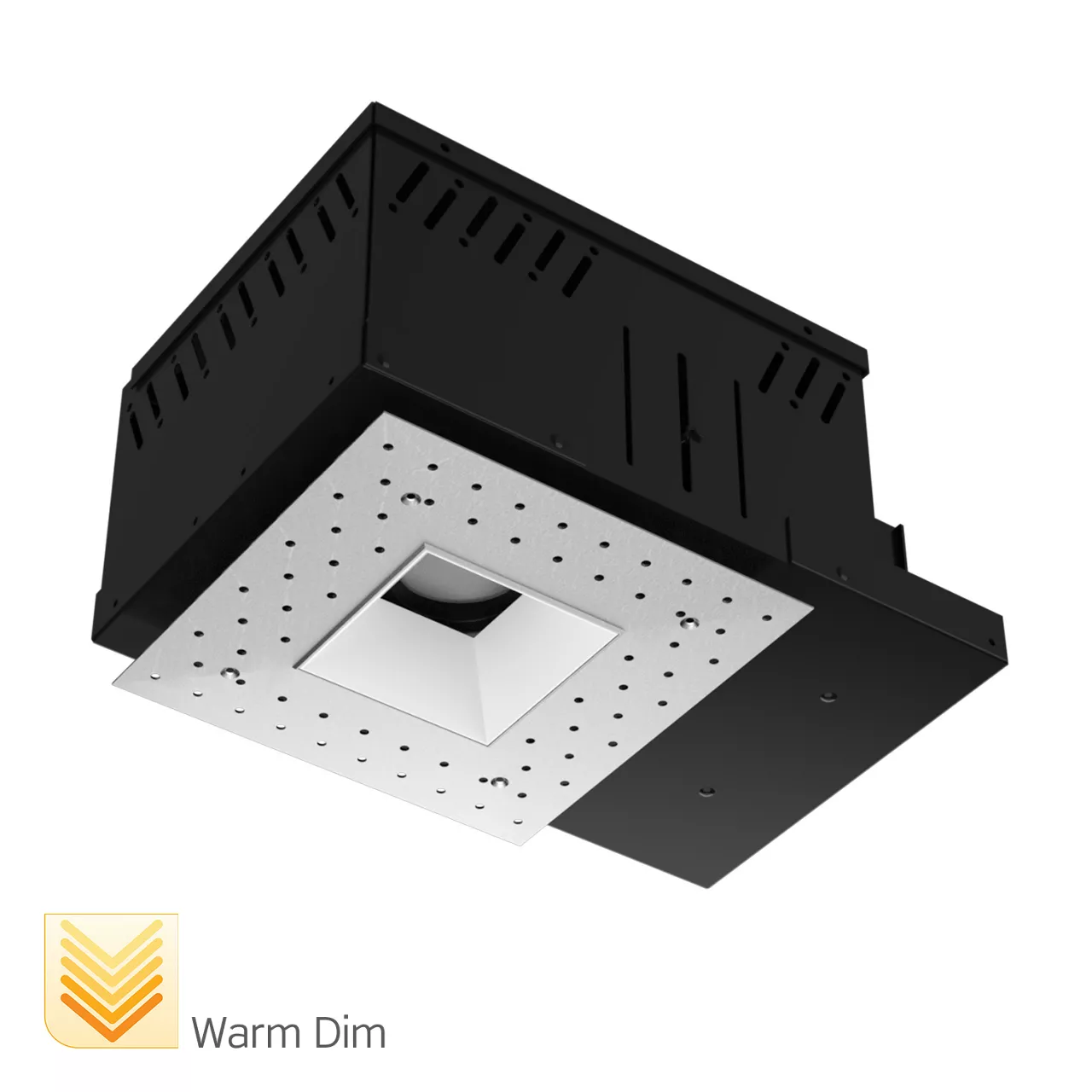

3.5" MX G2 Trimless Warm Dim Square Downlight

Light that warms as it dims: CCT range from 3000K at 100% to 1800K at 1%

The MX Architectural Downlight is a dynamic solution for consistent lighting and limitless design possibilities. Inside the 3-1/2" aperture resides a compact yet powerful light engine with a custom extruded aluminum heat sink that ensures proper heat dissipation. Perforated mesh frame easily adheres to joint compound for seamless trimless mounting. High performance TIR Optics: a dedicated 9° with field changeable 12°, 24°, 36°, and 50° options deliver quality light precisely where you need it. Light that warms as it dims: CCT range from 3000K to 1800K at 92 CRI. Regressed and Pinhole Trims with lensed versions available, suitable for wet locations.

Housing types include Air-Tight Insulated Ceiling (IC) and Non-IC Rated. Housing accommodates a 5/8” ceiling thickness with extended collar options available for ceilings up to 1" or 2" thick. The downlight, adjustable, and wall wash housing mechanisms are all field interchangeable for easy luminaire conversion. Standard dimming down to 1% with 0-10V, Phase (Forward/ Reverse), EldoLED, and Lutron® dimmer options. Emergency external battery back-up operates the load at a minimum of 450lm to 750lm for 90 minutes, depending on the backup wattage. Remote test switch included.
