3.5" MX G2 LED Square Downlight Warm Dim

MXG2DSTR Warm Dim

3.5" MX G2 LED Square Downlight Warm Dim

MX downlight Warm Dim features a compact yet powerful light engine inside a 3.5” aperture, shallow housing form factor. Custom, high performance TIR optics ranging from 24° to 50° deliver quality light precisely where you need it . A common platform across the entire family featuring 2 SDCM and four versatile lumen packages makes specifying easy. Architectural grade die cast trims are available in a variety of standard finishes and can be configurable in round, square, trim and trimless options. Non-IC, Air-Tight IC, and CCEA (Chicago Plenum) housing forms are available with the latest in dimming technology including flicker free.

Country of Origin: Please Contact Customer Service

Product Information

  • Product Features

    Aperture Size : 3-1/2 in,4 in

    Application : Downlight

    Construction Type : New Construction

    Family : MX

    Light Source Features : Warm Dimming

    Listings : Wet Location,CA Title 24, JA8,Air-Tight IC,Non-IC

    Lumen Output : 501-1000,1001-1500

    Product Shape : Square

    Product Type : Recessed

    Trim Type : Trim,Non-Conductive

FEATURES

  • Halogen style profile that warms as it dims
  • 3000K at full intensity to 1800K at lowest dim level

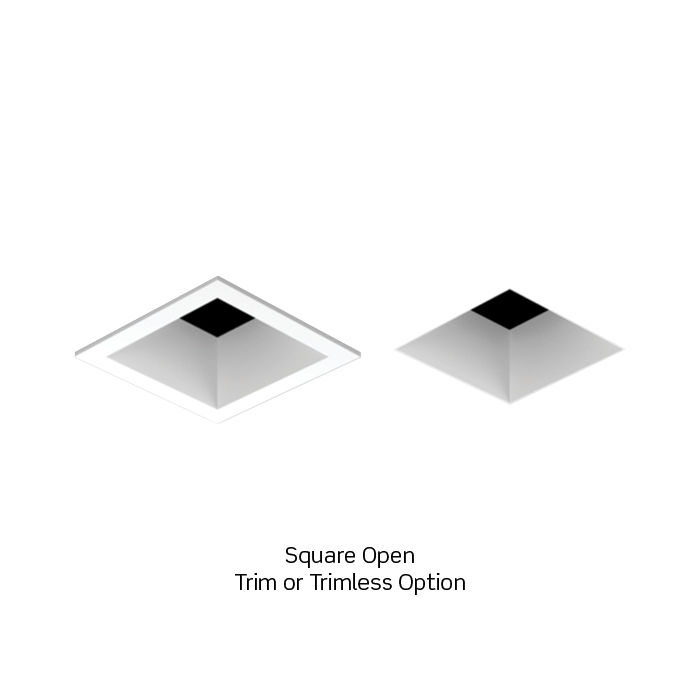

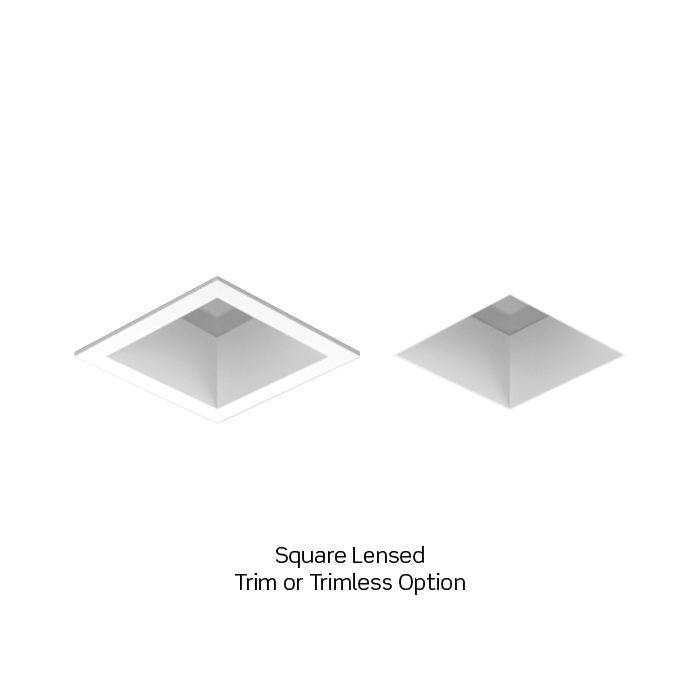

  • Multiple architectural trim options available
  • Field changeable optics: 24°, 30°, 45°



LED LIGHT ENGINE

  • 3000K to 1800K programmable tuning at 92 CRI
  • 50,000 hours L70 (rated life at 70% output)





TRIM SPECIFICATION

  • High quality A380 aluminum die-cast trims
