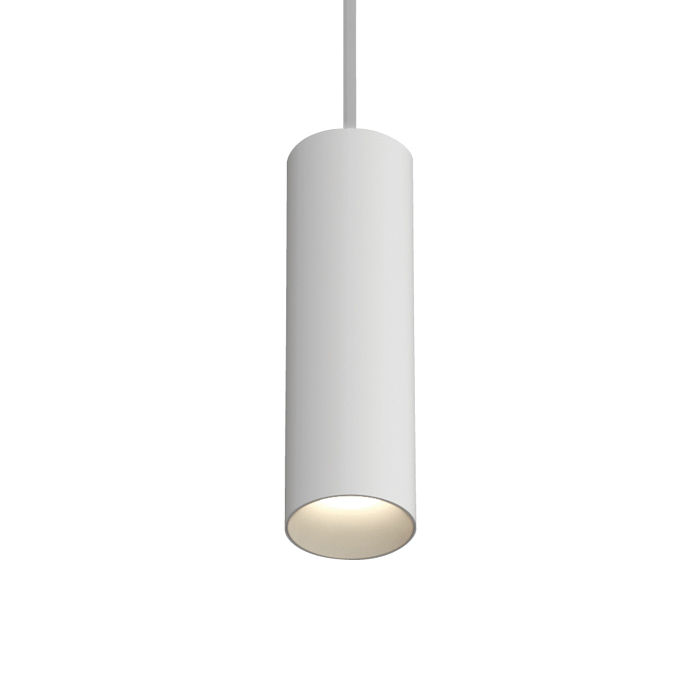

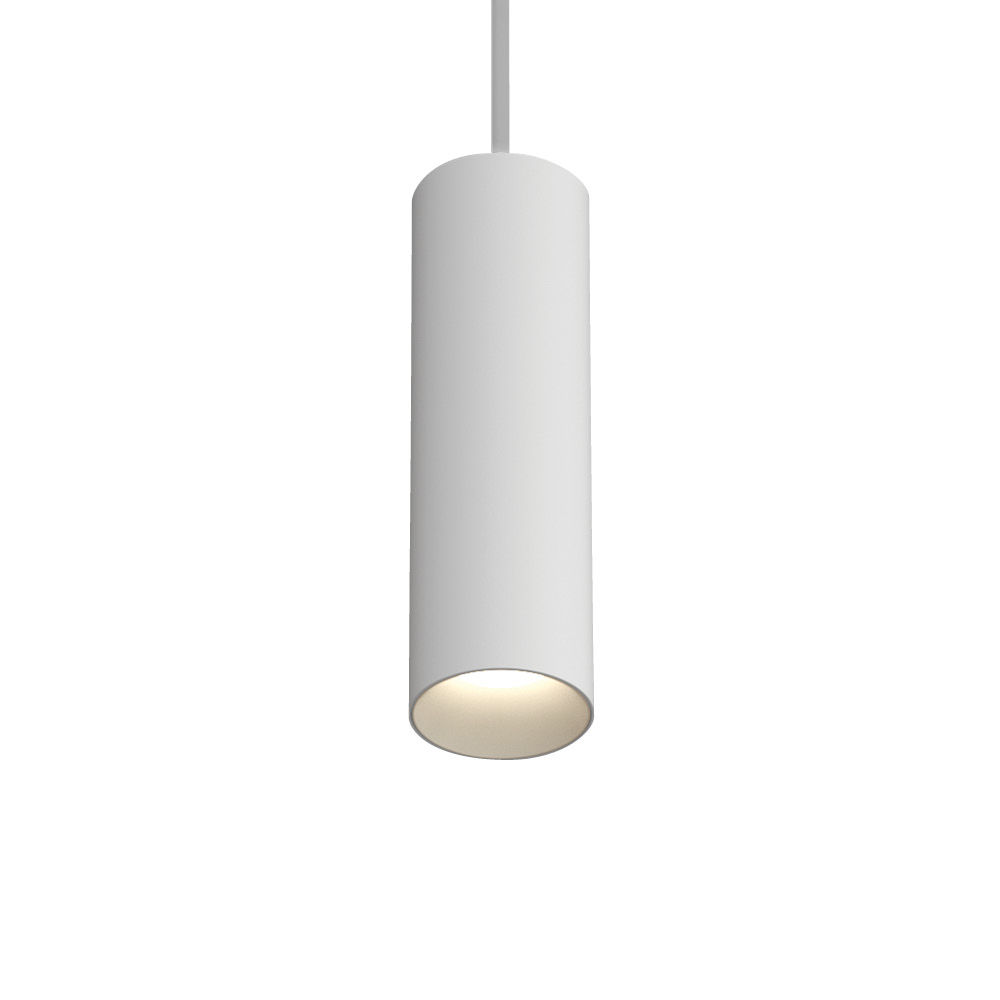

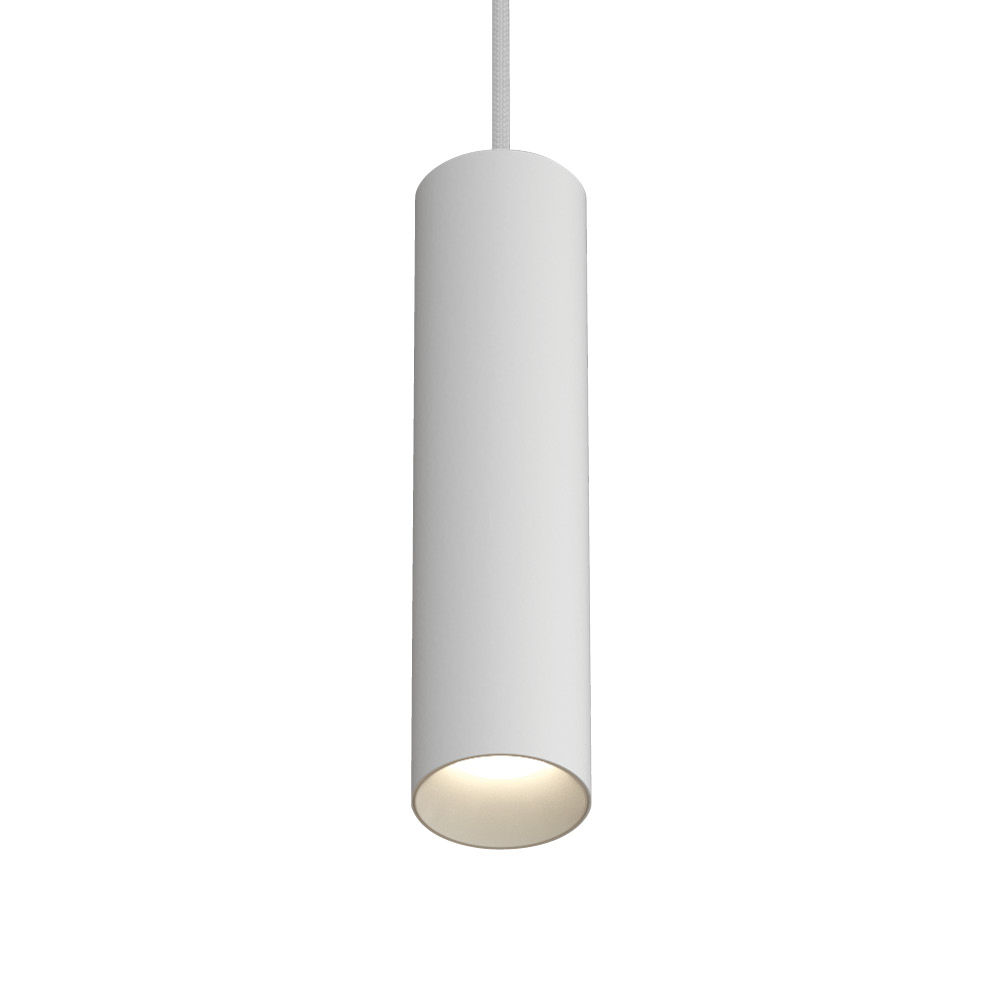

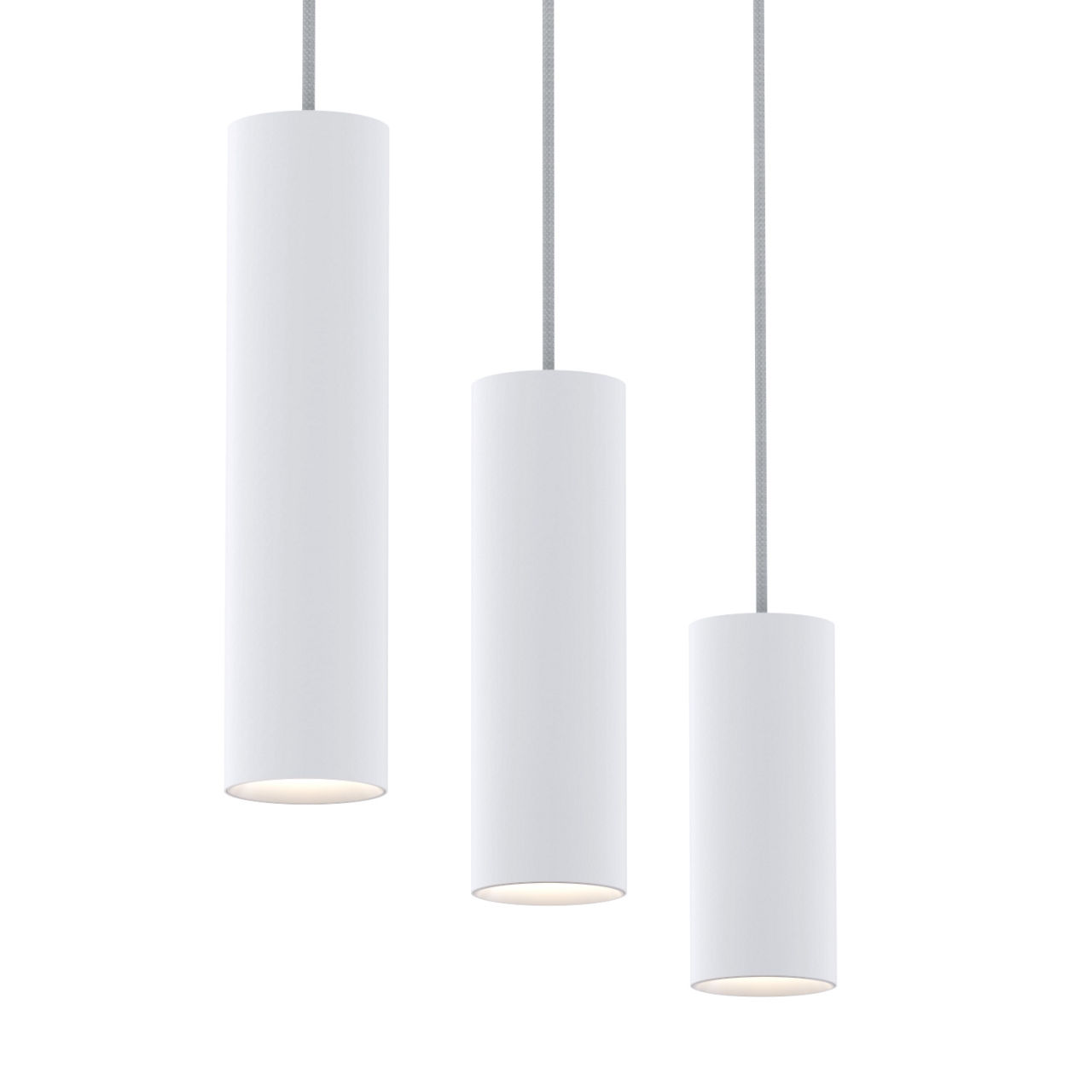

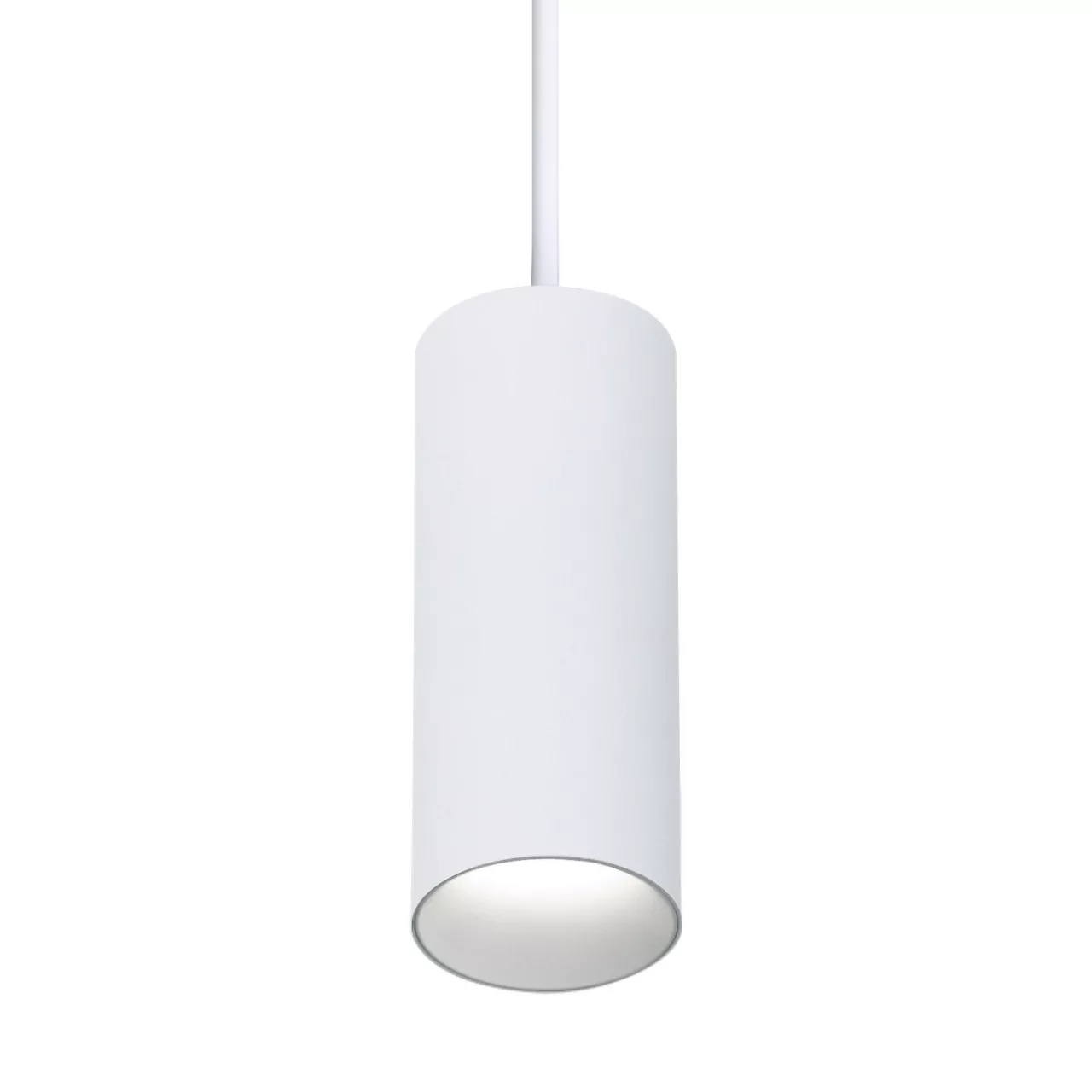

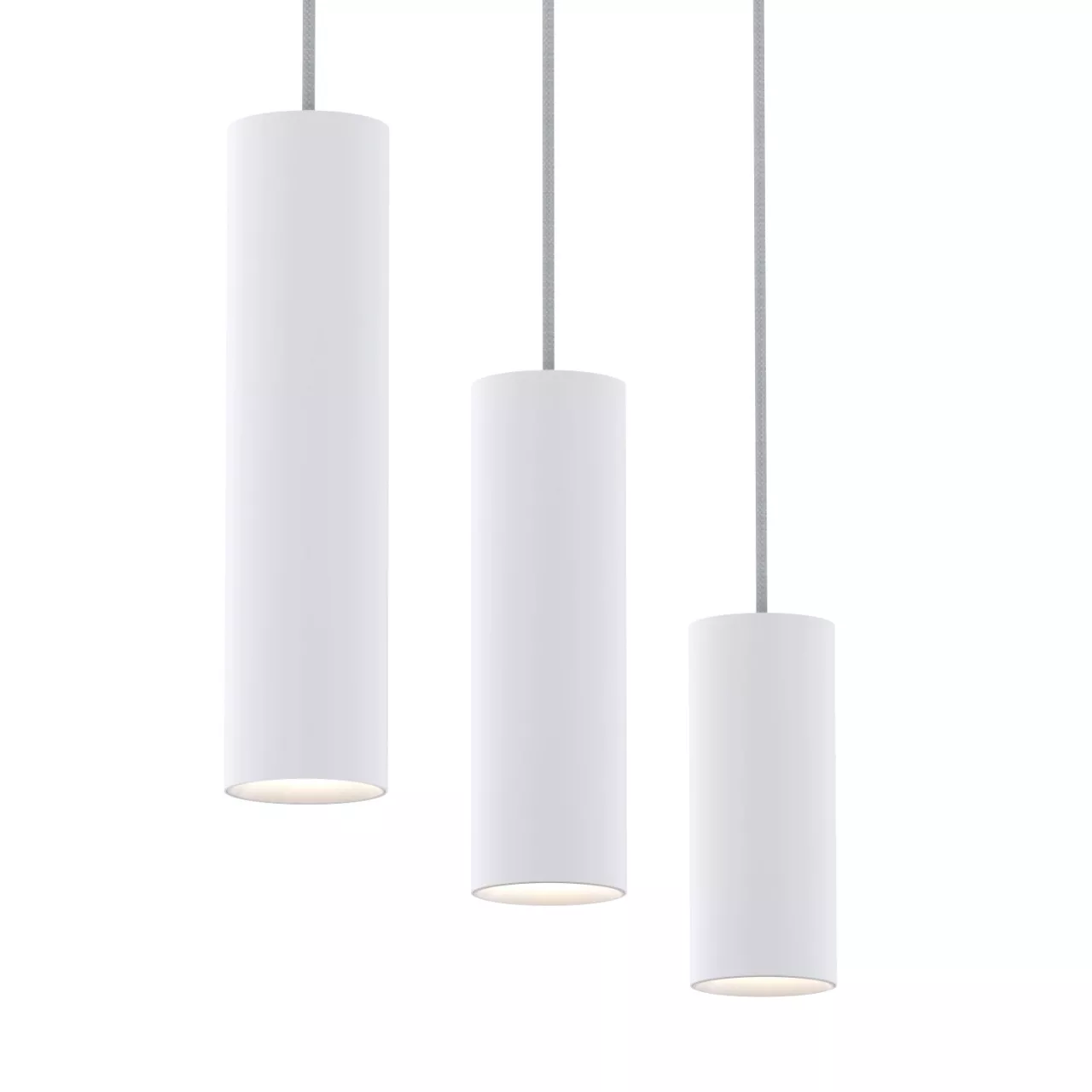

3.5” MX G2 Downlight Cylinder with Emergency Battery Back-Up

Emergency external battery back-up operates for up to 90 minutes

The MX Cylinder provides elegant, architectural illumination built on the powerful MX platform: a compact yet powerful light engine with a custom extruded aluminum heat sink to ensure proper heat dissipation. Emergency external battery back-up operates a load of up to 7W at a minimum of 400lm for 90 minutes, remote test switch included. Available in 9-, 12-, and 15-inch tall housings, the MX Cylinders offer Flexible Cable, Rigid Pendant, and Surface mounting options. Field adjustable Cable is available in standard 48- and 96-inch lengths, Rigid Pendants available in 12-inch increments from 12- to 48-inches.

High performance TIR Optics: a dedicated 9° with field changeable 12°, 24°, 36°, and 50° beam options deliver quality light precisely where you need it. Available in 2700K, 3000K, 3500K, and 4100K; 2 SDCM binning ensures color consistency across luminaires, select from 82 or 92 CRI. Standard dimming down to 1% with 0-10V, Phase (Forward/ Reverse), EldoLED, and Lutron® dimmer options. Suitable for Damp Locations; suitable for Wet Locations when Lens option is used.
