3.5" MX G2 Warm Dim Adjustable Remodel Downlight

MXRG2ARTR Warm Dim

Light that warms as it dims: CCT range from 3000K at full intensity to 1800K at lowest dim level

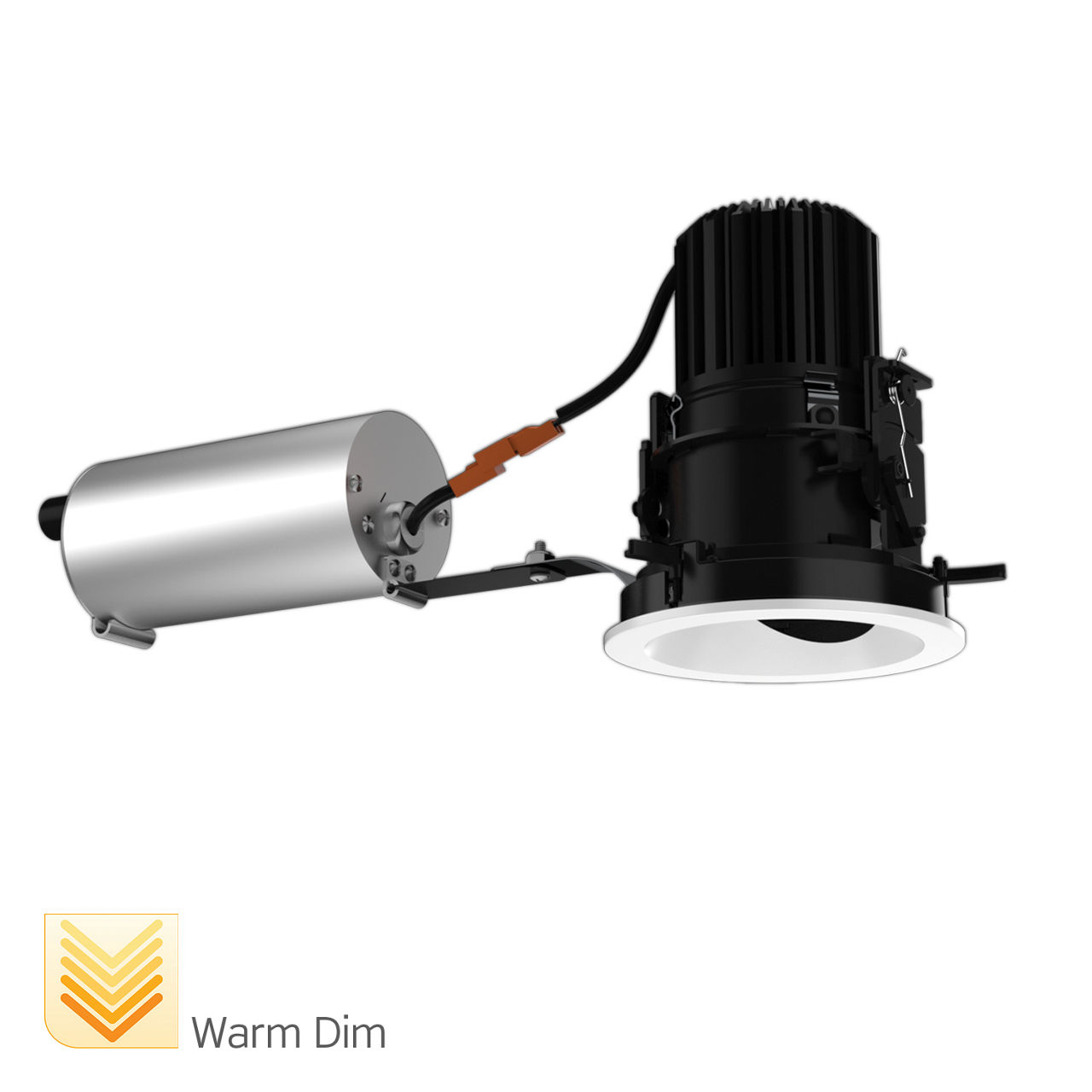

The MX Adjustable Architectural Remodel Downlight is a dynamic solution for consistent lighting and limitless design possibilities. A compact, yet powerful, light engine with a custom extruded aluminum heat sink ensures proper heat dissipation. Lockable aiming with 35° vertical and 360° horizontal adjustment. The Housing is installed from below the ceiling; swing-out lugs allow for installation in ceilings between 5/16" and 3/4". The Driver can swivel 90° to accommodate tight spaces. Non-IC Housing with dedicated voltage options of 120V or 277V.

Light that warms as it dims: CCT range from 3000K at full intensity to 1800K at lowest dim level with a CRI of 92 throughout. High performance TIR Optics with field changeable 24°, 30°, and 45° options that deliver quality light precisely where you need it. Standard dimming down to 1% with 0-10V, Phase (Forward/ Reverse), EldoLED, and Lutron® dimmer options. Select from Regressed or Pinhole Trims with lensed version options available, suitable for wet locations.

Specifications

Instruction Sheet

IES

Technical Information

  • Product Features

    Aperture Size : 3-1/2-In,4-In

    Product Type : Adjustable

    Construction Type : Remodel

    Product Family : MX

    Light Source Features : Warm Dim

    Listings : Damp Location,Non-IC

    Lumen Output : 501-1000,1001-1500

    Product Category : Downlight

    Trim Type : Adjustable Regressed,Adjustable Pinhole,Adjustable Lensed/Wet Location

    Emergency Battery Back-up : N
