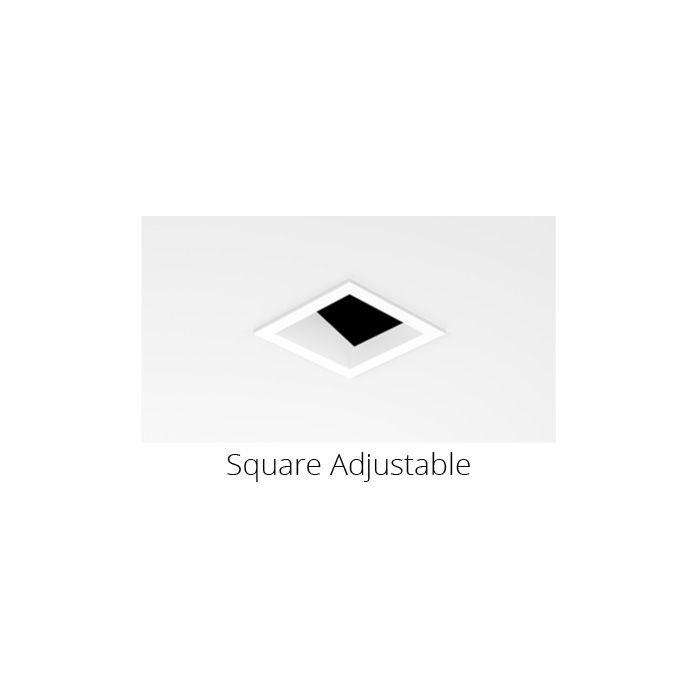

3.5" MX G2 Adjustable Square Remodel Downlight

Lockable aiming with 35° vertical and 360° horizontal adjustment

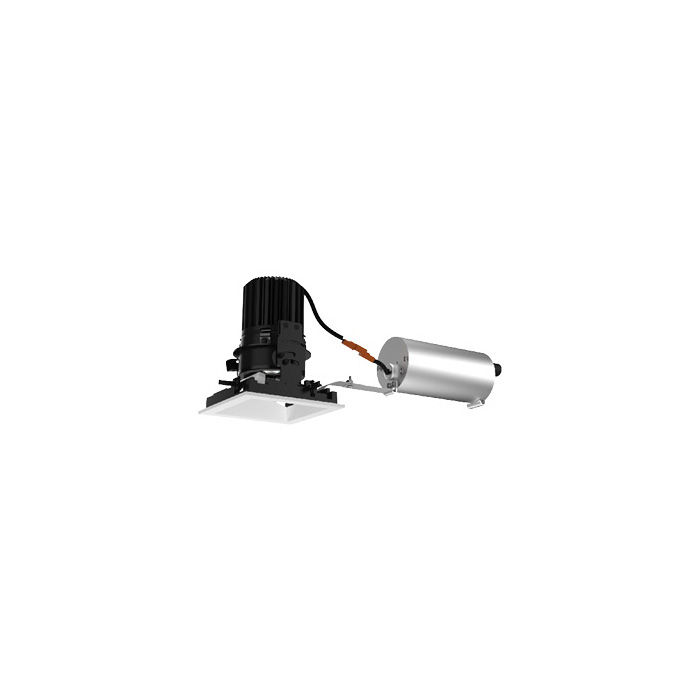

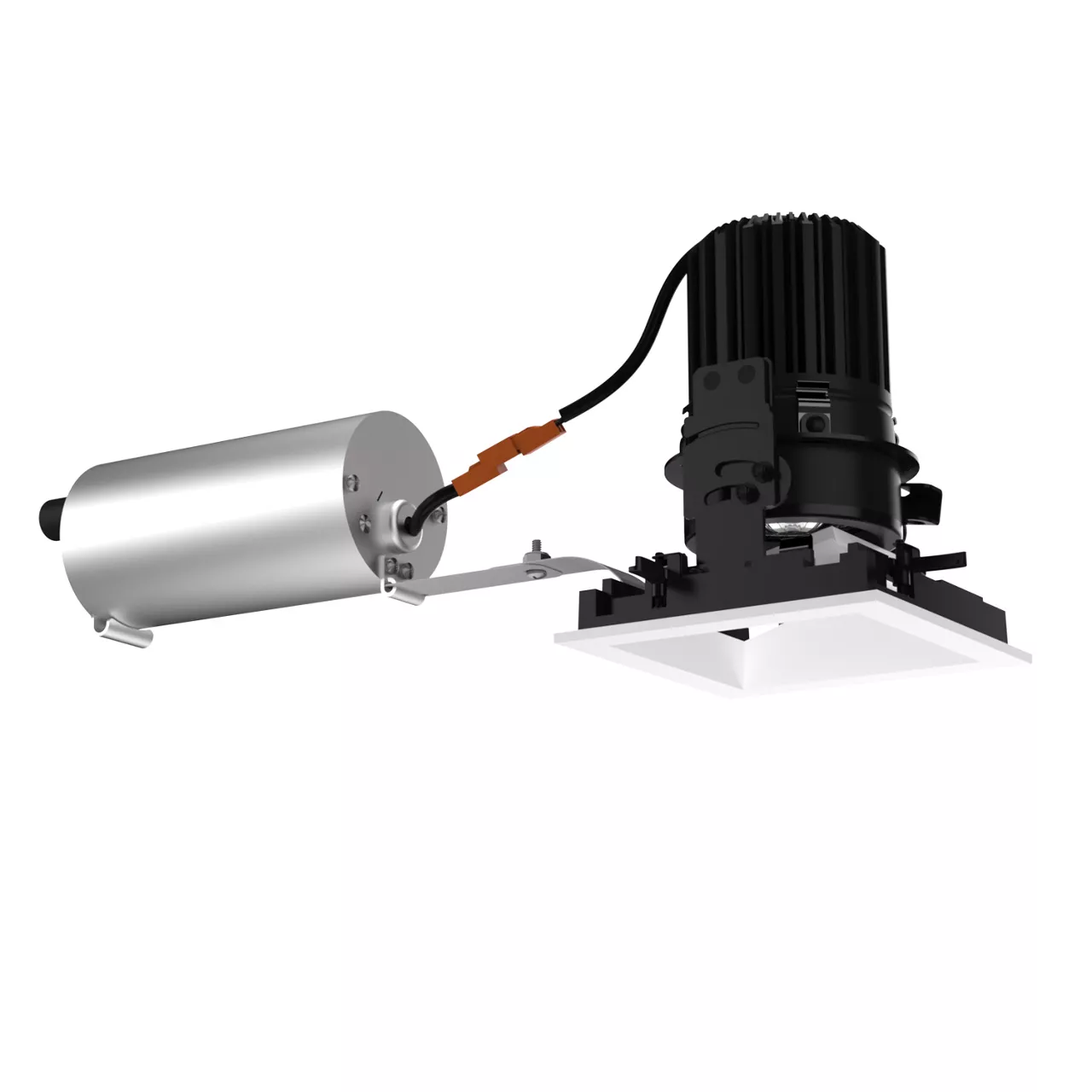

The MX Architectural Square Remodel Adjustable Downlight is a dynamic solution for consistent lighting and limitless design possibilities. A compact, yet powerful, light engine with a custom extruded aluminum heat sink ensures proper heat dissipation. Lockable aiming with 35° vertical and 360° horizontal adjustment. The Housing is installed from below the ceiling, swing-out lugs allow for installation in ceilings between 5/16" and 3/4". The Driver can swivel 90° to accommodate tight spaces. Non-IC Housing with dedicated voltage options of 120V or 277V.

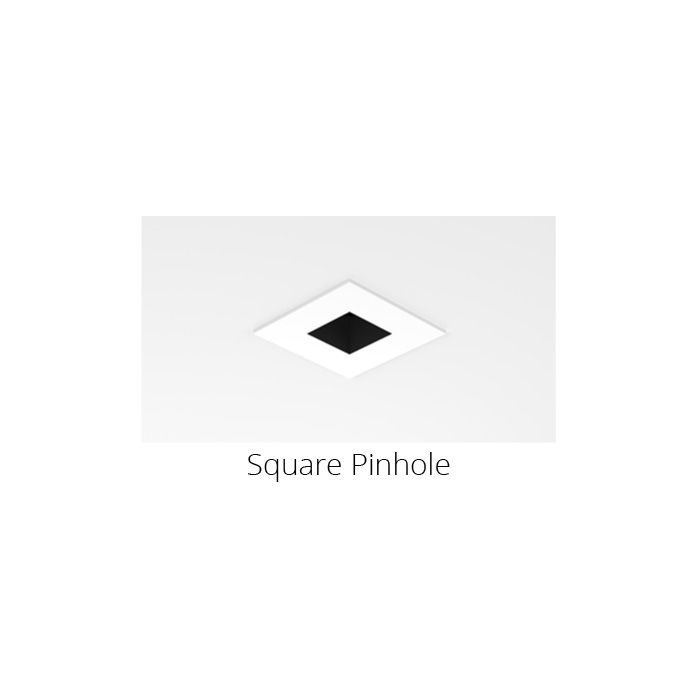

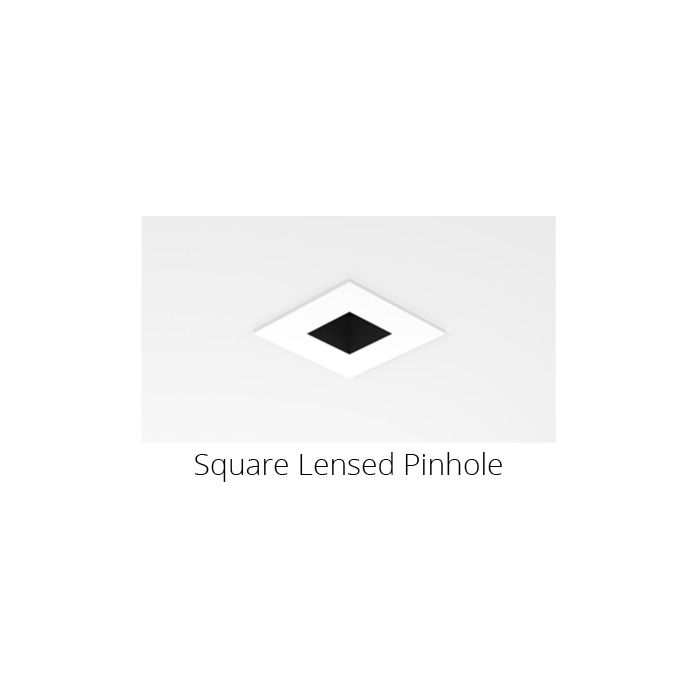

Available in 2700K, 3000K, 3500K, and 4100K; 2 SDCM binning ensures color consistency across luminaires, select from 82 or 92 CRI. High performance TIR Optics: a dedicated 9° with field changeable 12°, 24°, 36°, and 50° options that deliver quality light precisely where you need it. Standard dimming down to 1% with 0-10V, Phase (Forward/ Reverse), EldoLED, and Lutron® dimmer options. Select from Regressed, Pinhole, and Non-Conductive Trims with lensed version options available, suitable for wet locations.
