3.5" MX G2 Square Remodel Downlight
MXRG2DSTR
Field changeable TIR Optics that deliver quality light precisely where you need it

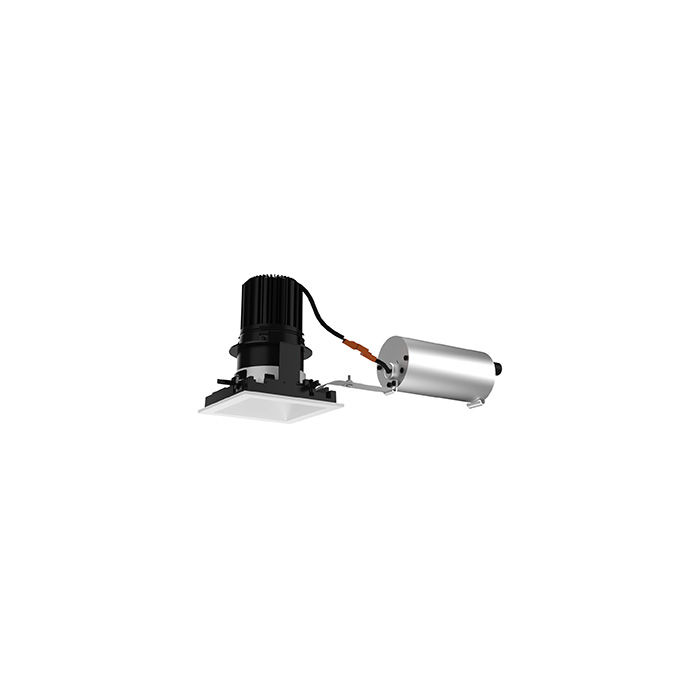

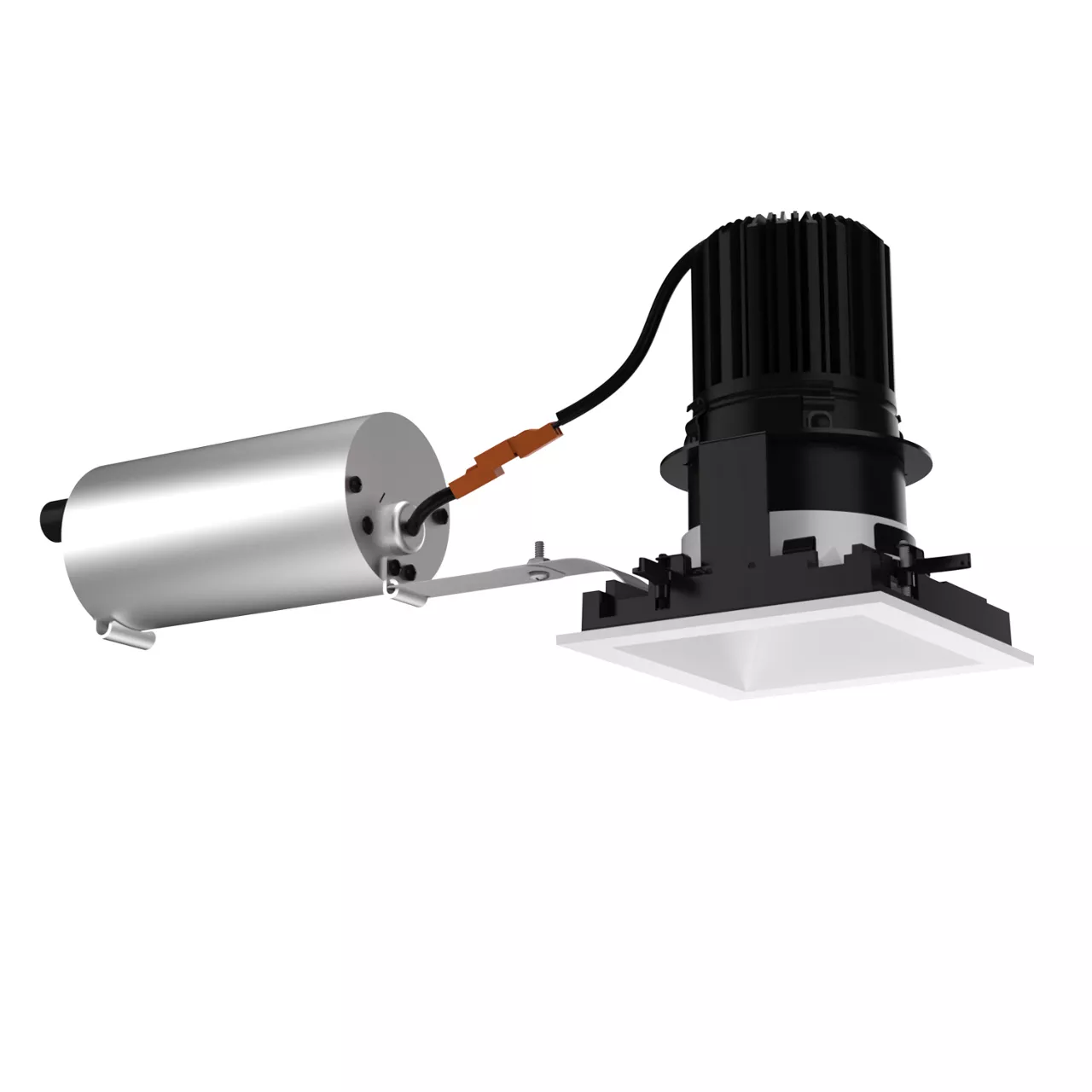

The MX Architectural Remodel Square Downlight is a dynamic solution for consistent lighting and limitless design possibilities. A compact, yet powerful, light engine with a custom extruded aluminum heat sink ensures proper heat dissipation. The Housing is installed from below the ceiling, swing-out lugs allow for installation in ceilings between 5/16" and 3/4". The Driver can swivel 90° to accommodate tight spaces. Non-IC Housing with dedicated voltage options of 120V or 277V.

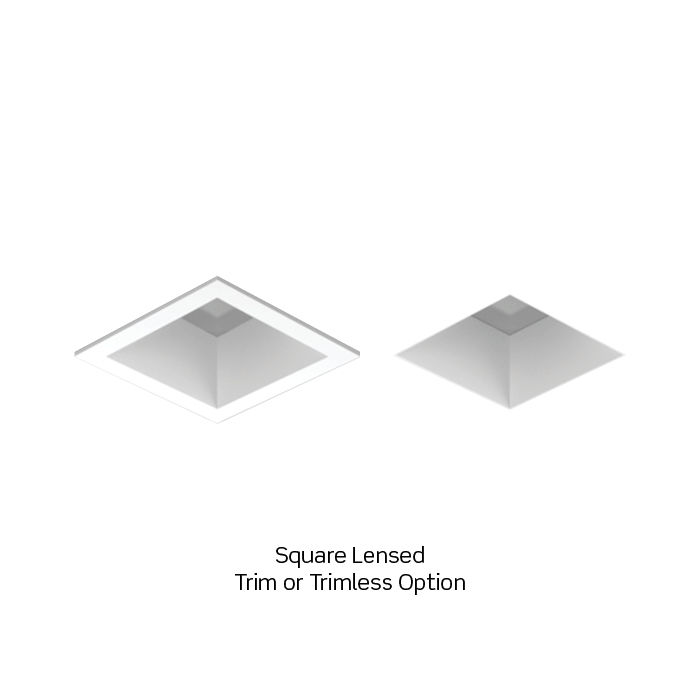

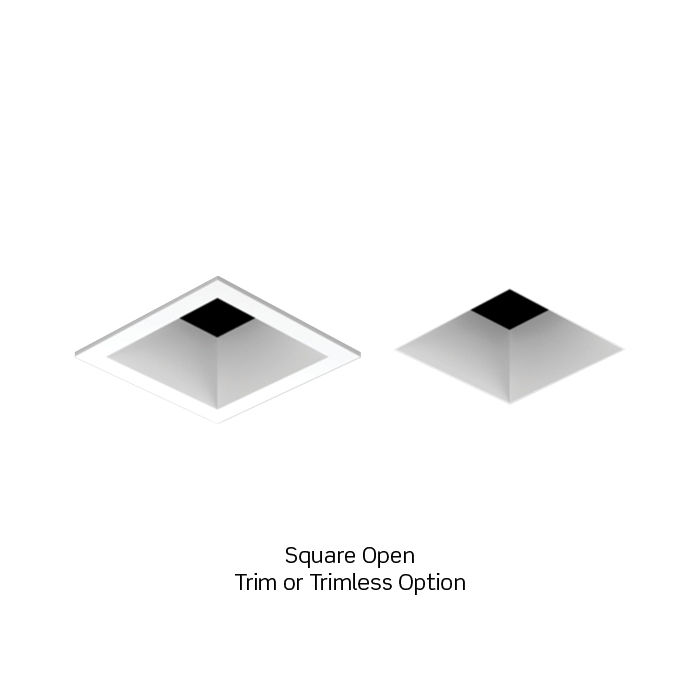

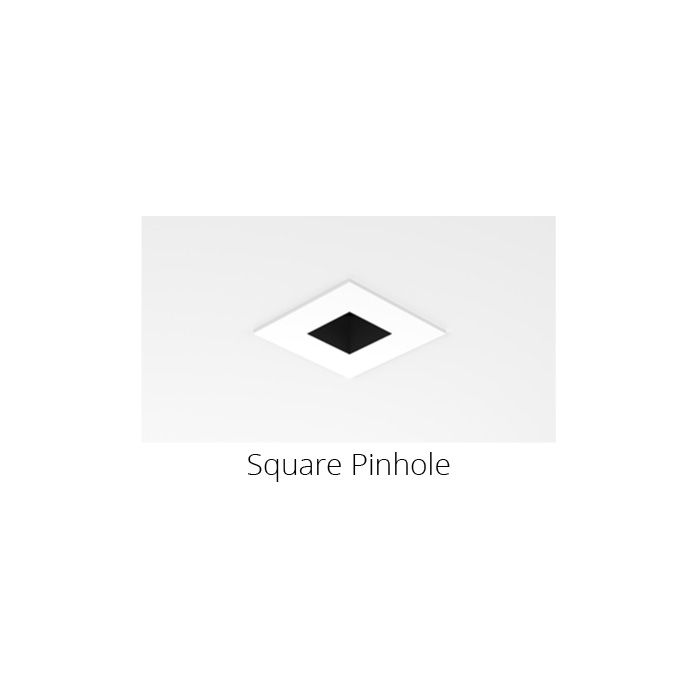

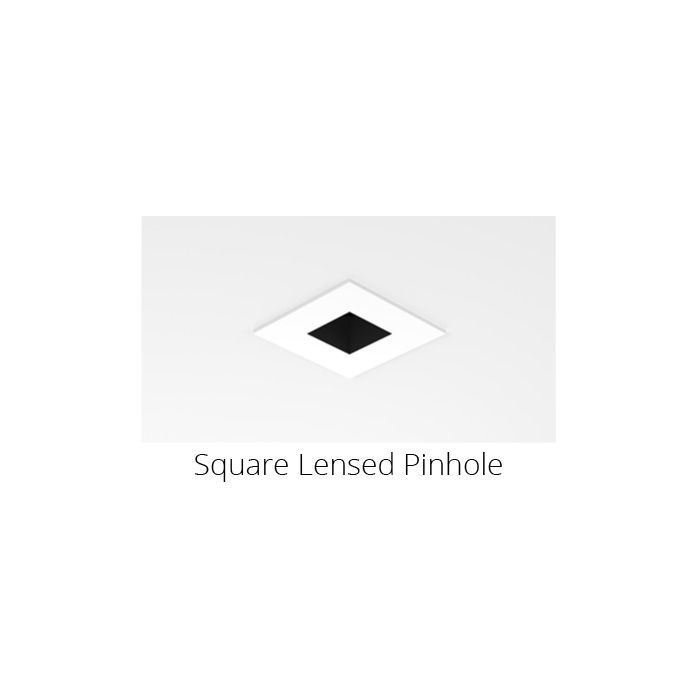

Available in 2700K, 3000K, 3500K, and 4100K; 2 SDCM binning ensures color consistency across luminaires, select from 82 or 92 CRI. High performance TIR Optics: a dedicated 9° with field changeable 12°, 24°, 36°, and 50° options that deliver quality light precisely where you need it. Standard dimming down to 1% with 0-10V, Phase (Forward/ Reverse), EldoLED, and Lutron® dimmer options. Select from Regressed, Pinhole, and Non-Conductive Trims with lensed version options available, suitable for wet locations.
Specifications
Instruction Sheet
IES
Technical Information
Product Features
Aperture Size : 3-1/2-In,4-In
Product Category : Downlight
Construction Type : Remodel
Product Family : MX
Light Source Features : Static White
Listings : Title 24 Part 6 JA8,Wet Location,Non-IC
Lumen Output : 501-1000,1001-1500,1501-2000
Product Shape : Square
Product Type : Downlight
Trim Type : Regressed,Non-Conductive,Pinhole,Lensed/Wet Location
Emergency Battery Back-up : N
Features & Benefits
FEATURES
- Multiple architectural trim options
- High center beam spot up to 22,600 CBCP
- Field changeable optics: 12°, 24°, 36°, 50°
LED LIGHT ENGINE
- 92 CRI & 82 CRI in 2700K, 3000K, 3500K and 4100K with 2 SDCM binning
- Class A 3500K with 80+ GAI and 90+ CRI to emphasize saturated colors
- Crisp White 3000K, vibrant whites and naturally saturated, warm tones with high CRI
- 50,000 hours L70 (rated life at 70% output)
