3.5" MX G2 Warm Dim Square Remodel Downlight
MXRG2DSTR Warm Dim
Light that warms as it dims: CCT range from 3000K at full intensity to 1800K at lowest dim level

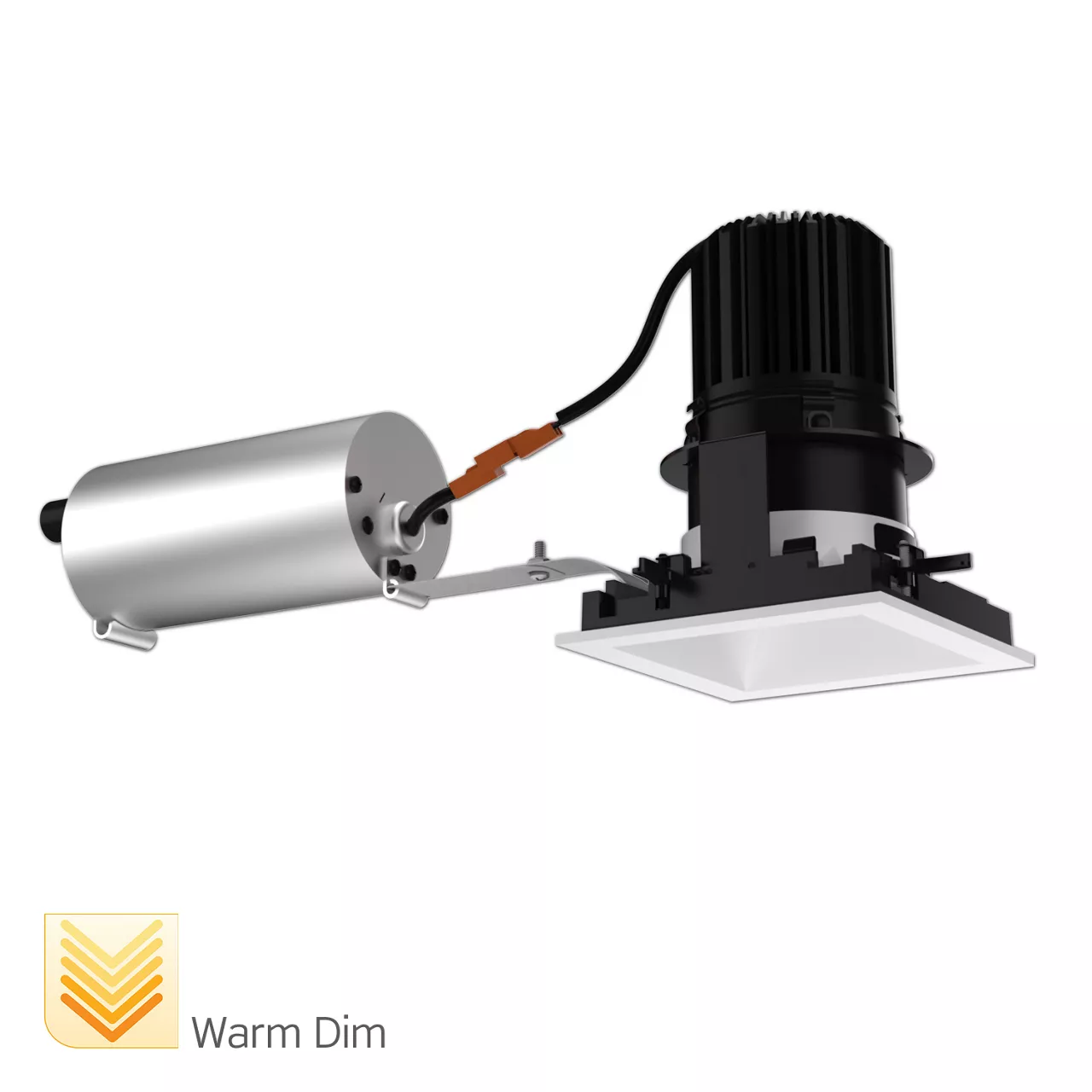

The MX Architectural Remodel Square Downlight is a dynamic solution for consistent lighting and limitless design possibilities. Non-IC Housing with dedicated voltage options of 120V or 277V. A compact, yet powerful, light engine with a custom extruded aluminum heat sink ensures proper heat dissipation. The Housing is installed from below the ceiling, swing-out lugs allow for installation in ceilings between 5/16" and 3/4". The Driver can swivel 90° to accommodate tight spaces.
Light that warms as it dims: CCT range from 3000K at full intensity to 1800K at lowest dim level with a CRI of 92 throughout. High performance TIR Optics with field changeable 24°, 30°, and 45° beam options that deliver quality light precisely where you need it. Standard dimming down to 1% with 0-10V, Phase (Forward/ Reverse), EldoLED, and Lutron® dimmer options. Select from Regressed and Pinhole Trims with lensed options available that are suitable for wet locations.
Specifications
Instruction Sheet
IES
Technical Information
Product Features
Aperture Size : 3-1/2-In,4-In
Product Category : Downlight
Construction Type : Remodel
Product Family : MX
Light Source Features : Warm Dim
Listings : Wet Location,Non-IC
Lumen Output : 501-1000,1001-1500
Product Type : Downlight

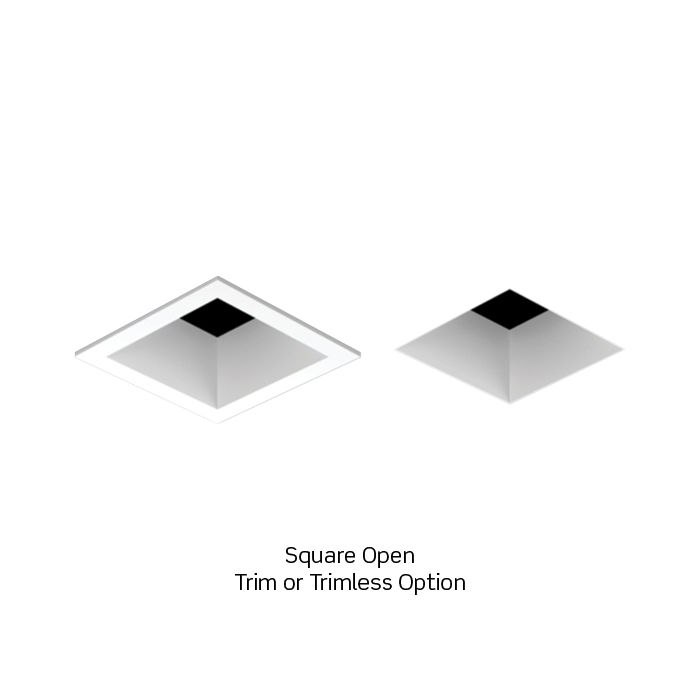

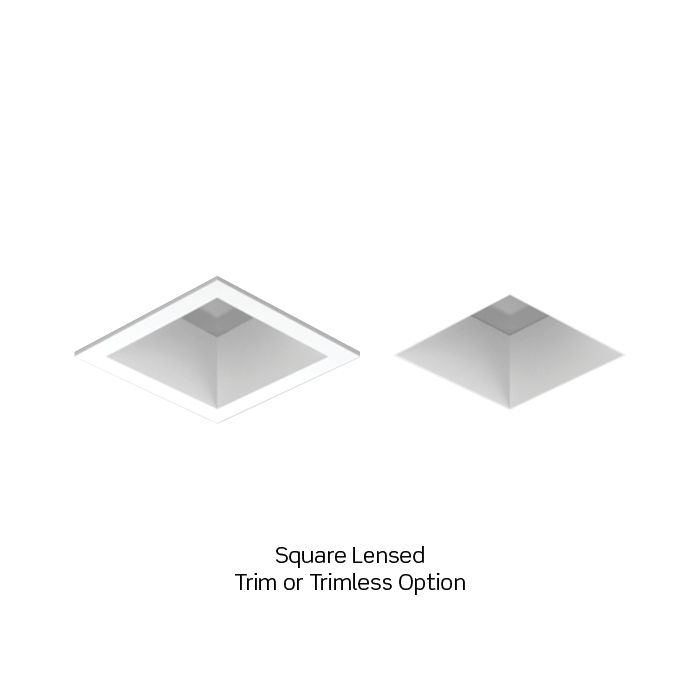

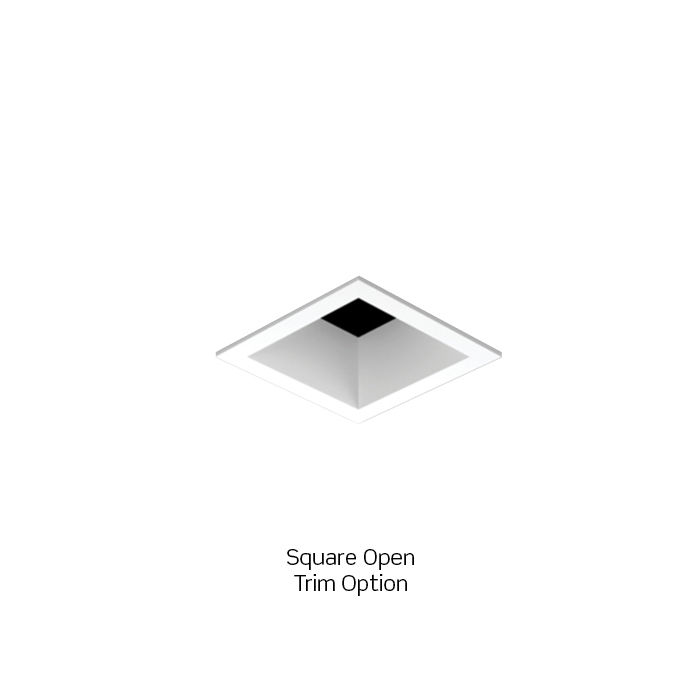

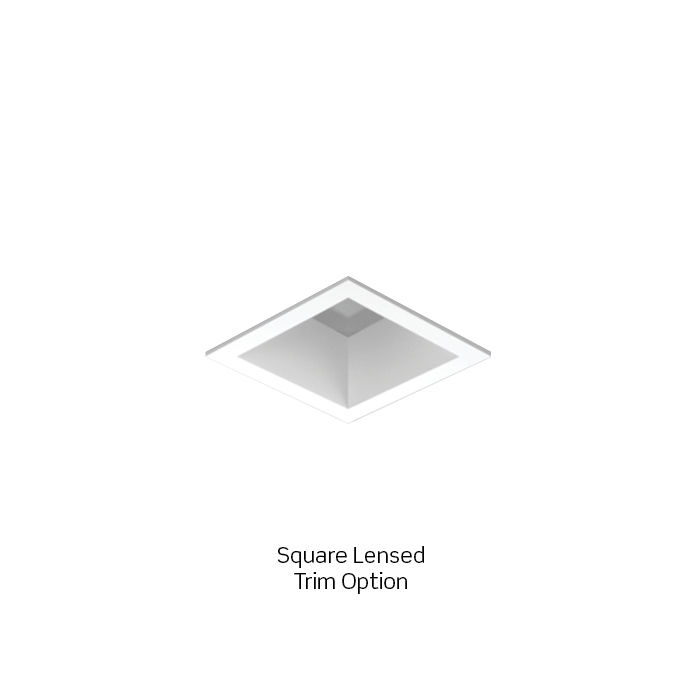

Trim Type : Regressed,Pinhole,Lensed/Wet Location
Emergency Battery Back-up : N
