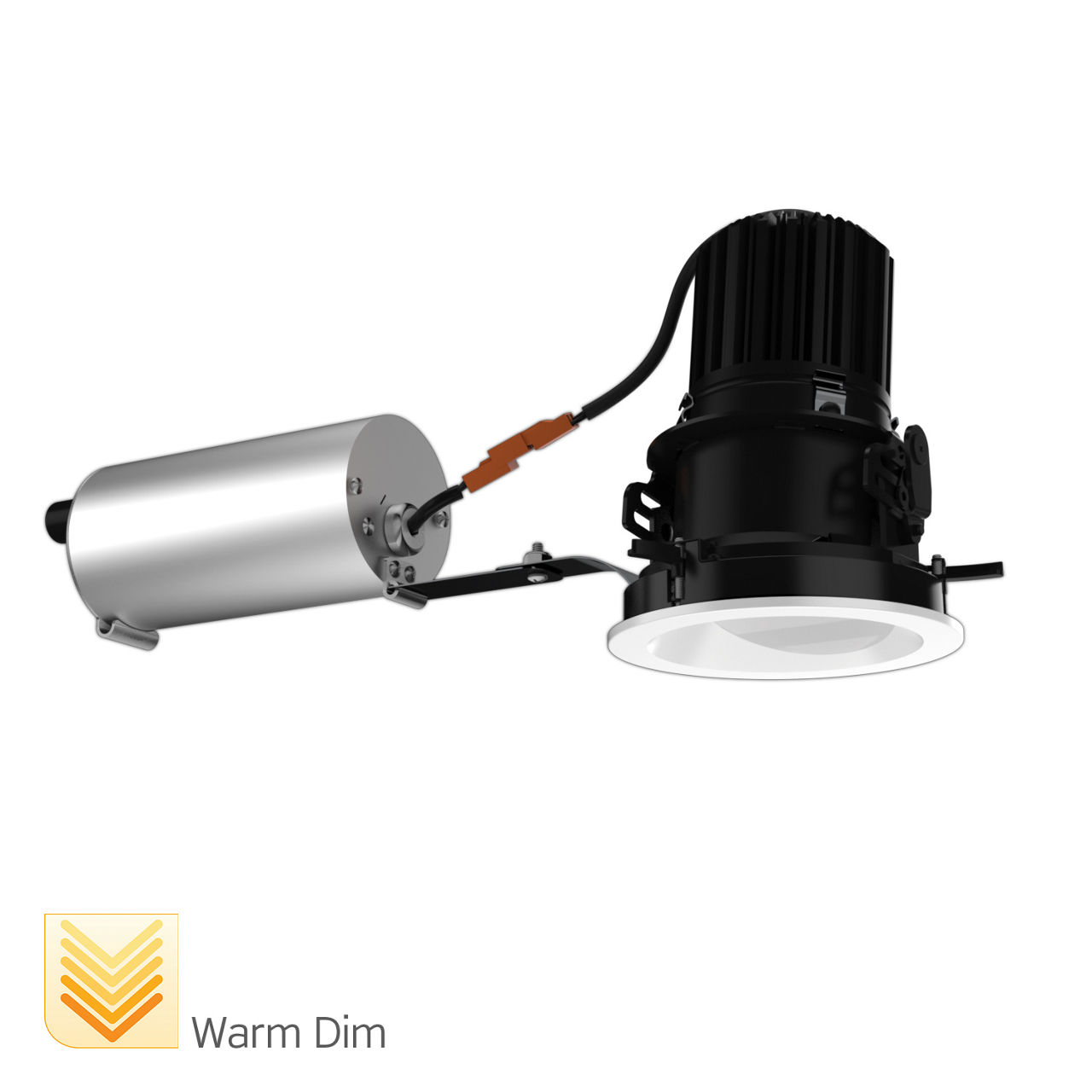

3.5" MX G2 Warm Dim Remodel Wall Wash Downlight

MXRG2WRTR Warm Dim

CCT range from 3000K at full intensity to 1800K at lowest dim level

The MX Architectural Remodel Downlight is a dynamic solution for consistent lighting and limitless design possibilities. Non-IC Housing with dedicated voltage options of 120V or 277V. A compact, yet powerful, light engine with a custom extruded aluminum heat sink ensures proper heat dissipation. High-performance Wall Wash with asymmetric distribution provides uniform vertical and horizontal illumination. The Housing is installed from below the ceiling, swing-out lugs allow for installation in ceilings between 5/16" and 3/4". The Driver can swivel 90° to accommodate tight spaces.

Light that warms as it dims: CCT range from 3000K at full intensity to 1800K at lowest dim level with a CRI of 92 throughout. Standard dimming down to 1% with 0-10V, Phase (Forward/ Reverse), EldoLED, and Lutron® dimmer options.

Specifications

Instruction Sheet

IES

Technical Information

  • Product Features

    Aperture Size : 3-1/2-In,4-In

    Product Category : Downlight

    Construction Type : Remodel

    Product Family : MX

    Light Source Features : Warm Dim

    Lumen Output : 501-1000

    Product Type : Wall Wash

    Trim Type : Wall Wash

    Listings : Damp Location,Non-IC

    Emergency Battery Back-up : N

  • Standards and Certifications

    Buy American Act (BAA) Compliant : Yes
