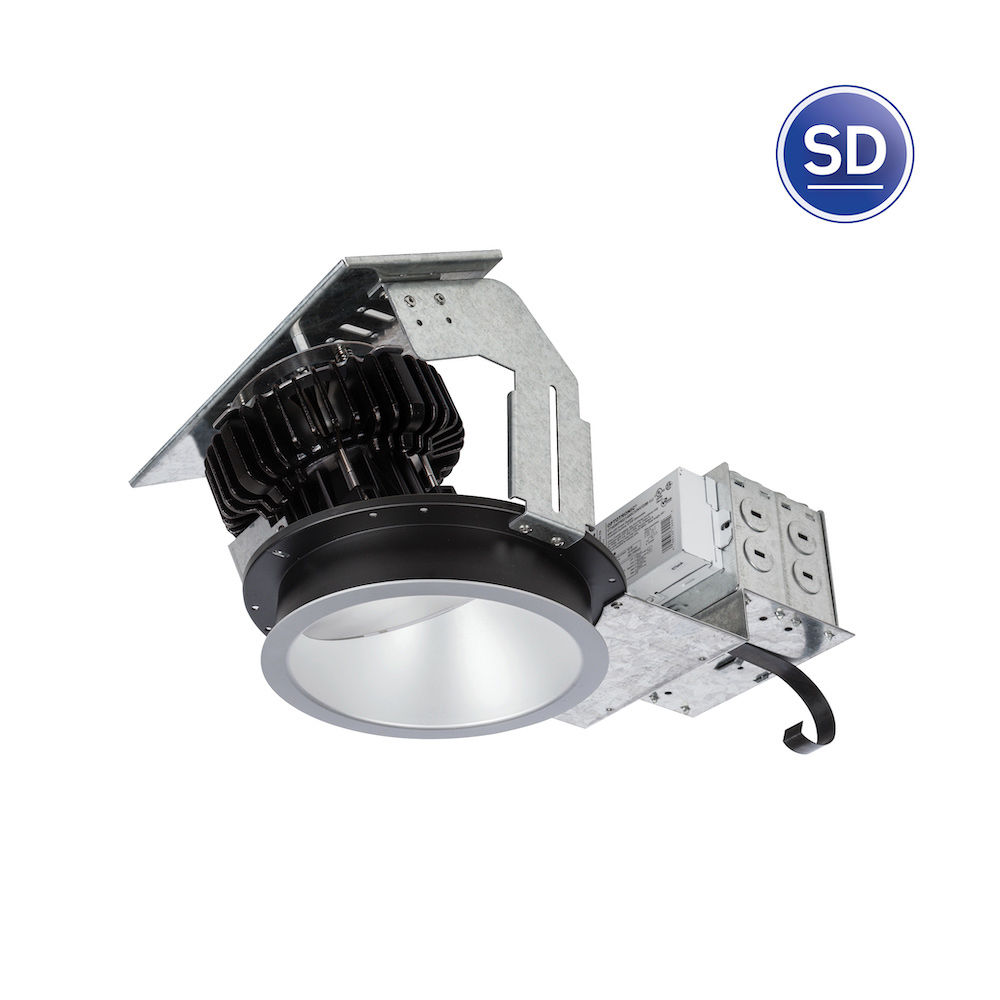

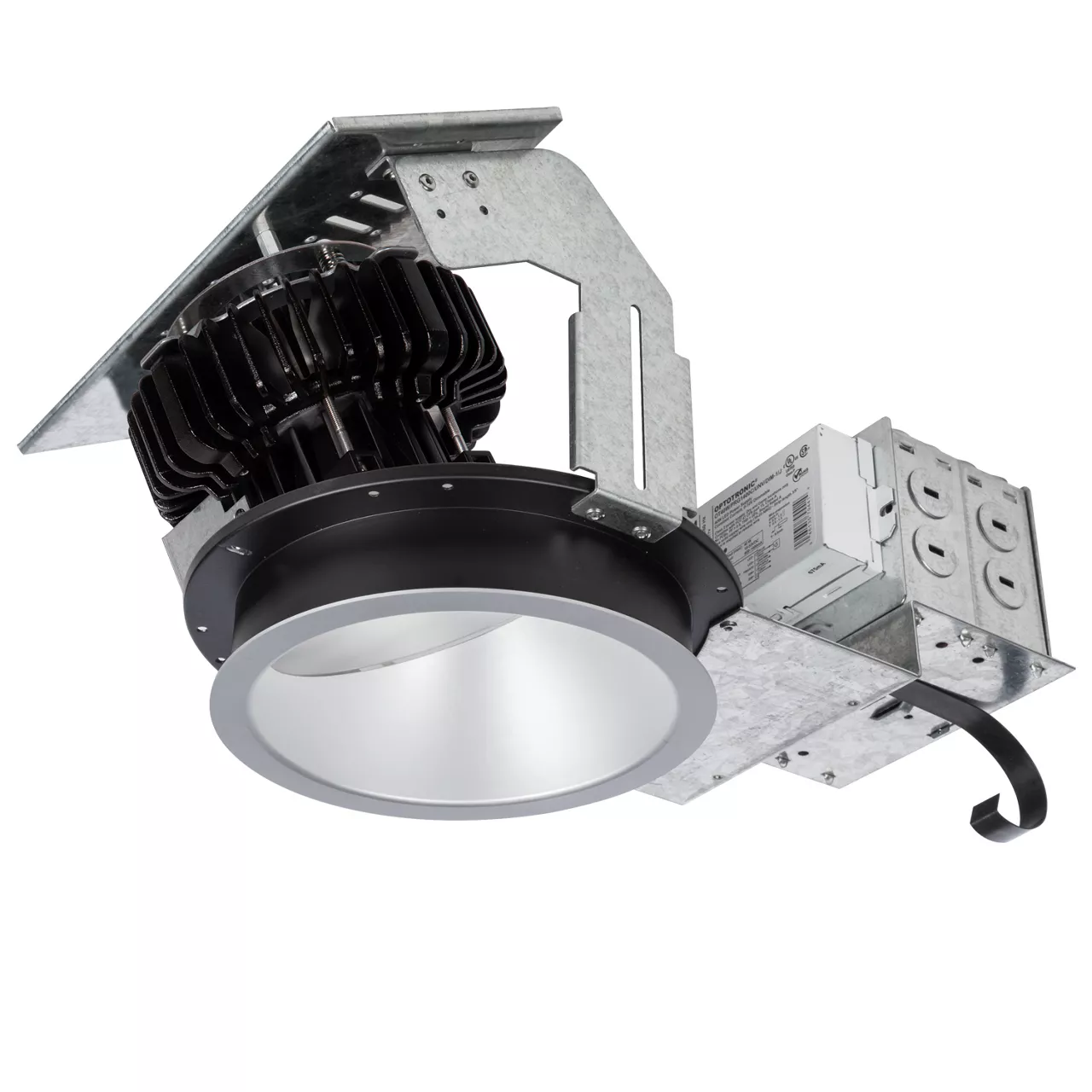

6" SD Series Wall Wash Downlight

SD6WR

Uniform light in a smooth, wall wash beam

Balancing energy efficiency and optical control in a cost-effective package, the SD Series offers clean, uniform light in a smooth, wall wash beam distribution. Perfect across a variety of applications ranging from comfortable ambient lighting to uniform general illumination. Dedicated voltage options of 120V, 277V, or 347V. Phase, 0-10V, and DMX512 RDM dimming options. LED with 2SCDM binning for color consistency available in 80 or 90 CRI. Specification Grade Reflector available in Clear Specular, Haze, and White finishes with a 50˚cutoff. Architectural, discrete polished self-flange is standard, optional painted white flange also available.

Specifications

Instruction Sheet

Resources

IES

Technical Information

  • Product Features

    Aperture Size : 6-In

    Product Type : Wall Wash

    Construction Type : New Construction

    Product Family : SD

    Light Source Features : Static White

    Light Source : LED

    Listings : Damp Location

    Lumen Output : 501-1000,1001-1500,1501-2000,2001-3000,3001-4000

    Product Shape : Round

    Product Category : Downlight

    Trim Type : Trimmed
