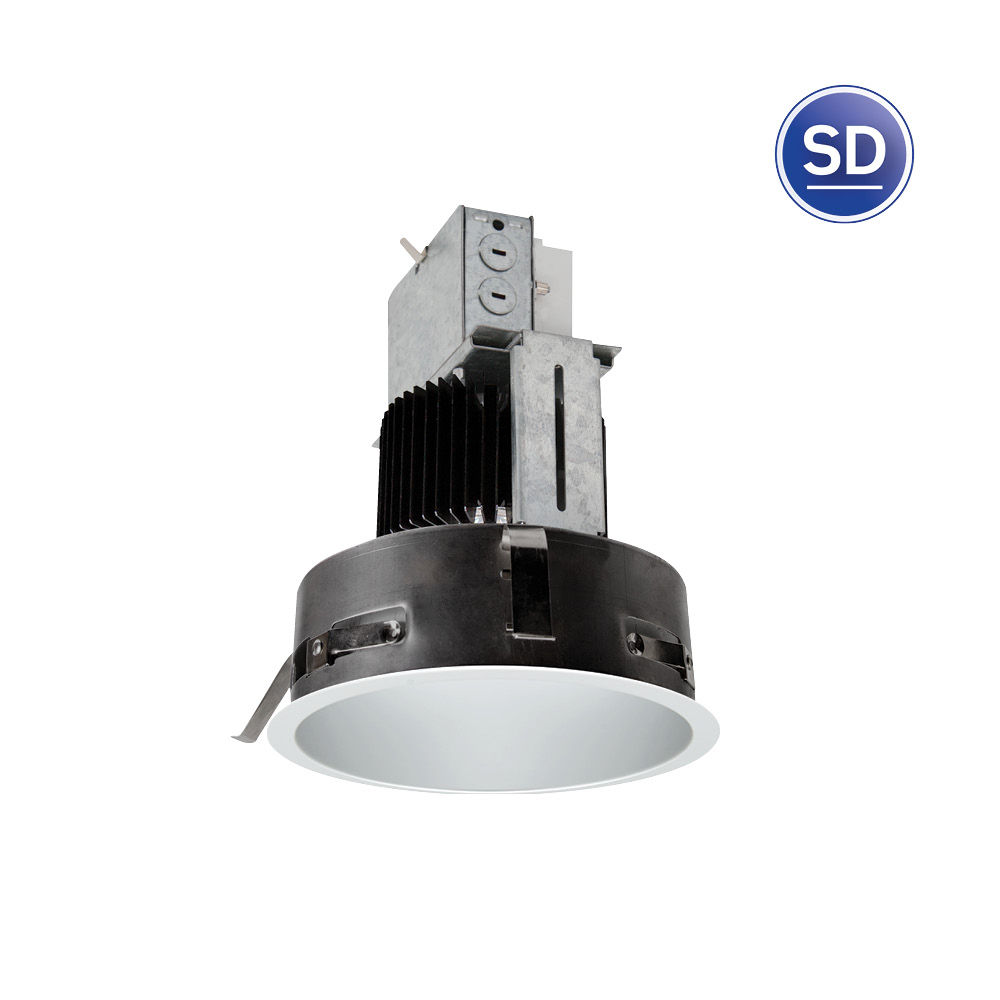

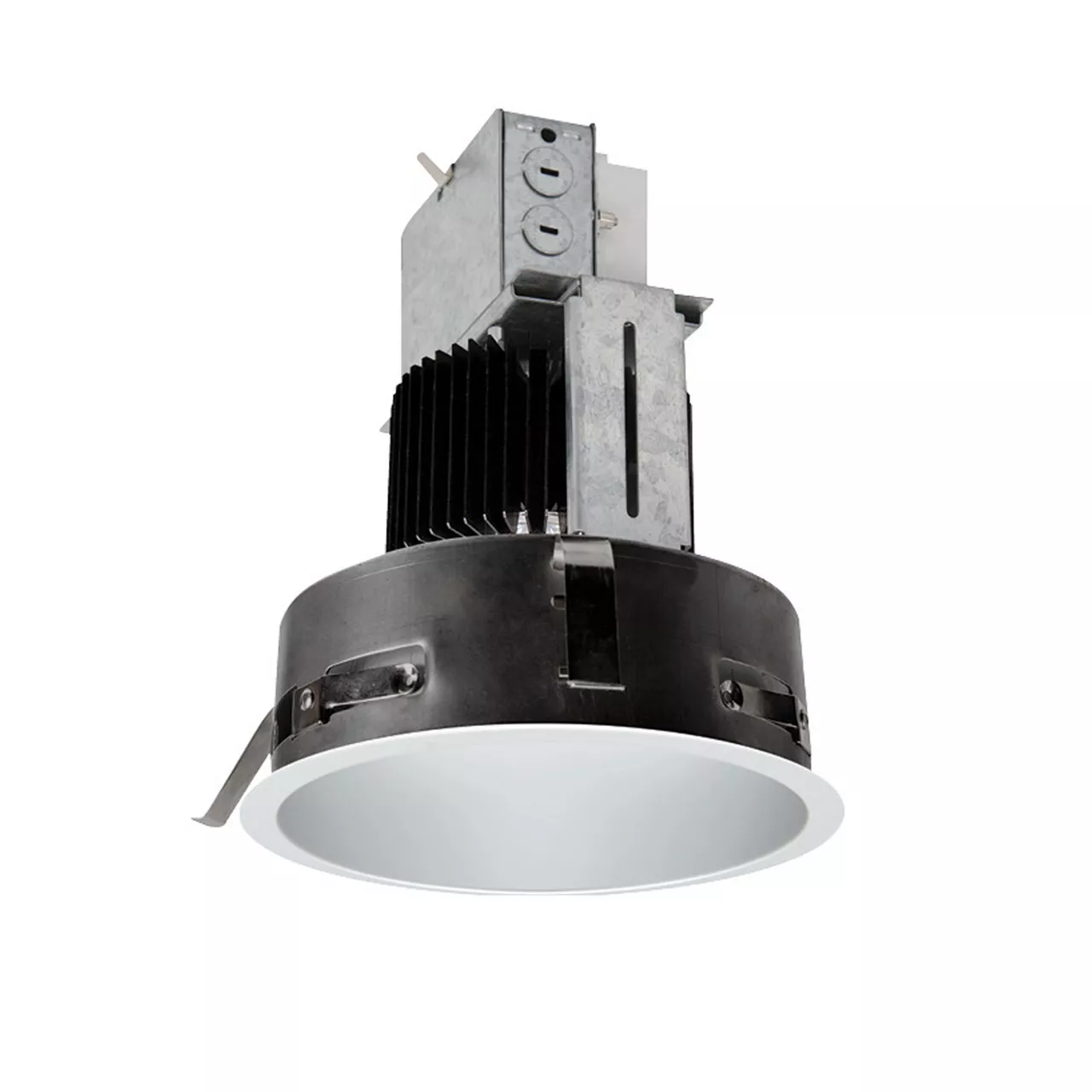

8” SD Series Remodel Downlight

SD8DRR

Clean, uniform light in three distinct beam distributions

Balancing energy efficiency and optical control in a cost-effective package, the SD Series offers clean, uniform light available in three (3) distinct beam distributions: 30˚, 50˚, and 70˚. Perfect for general illumination across a variety of applications ranging from comfortable, ambient lighting to uniform general illumination. 120 – 277V Out-of-the-box universal voltage with factory standard 1% dimming, LED with 2SCDM binning available in 80 or 90 CRI for color consistency. Specification Grade Reflector available in Clear Specular, Haze, and White finishes with a 50˚cutoff. Architectural, discrete polished self-flange is standard, an optional painted white flange also available.

Specifications

Instruction Sheet

IES

Technical Information

  • Product Features

    Aperture Size : 8-In

    Product Category : Downlight

    Construction Type : Remodel

    Product Family : SD

    Listings : Damp Location

    Lumen Output : 501-1000,1001-1500,1501-2000,2001-3000,3001-4000

    Product Shape : Round

    Product Type : Downlight

    Trim Type : Trimmed

    Light Source Features : Static White

    Emergency Battery Back-up : N

  • Standards and Certifications

    Buy American Act (BAA) Compliant : Yes
