4" Gravity Cylinder with Emergency Battery Backup
GC4DRREM
External Battery operates for up to 90 minutes

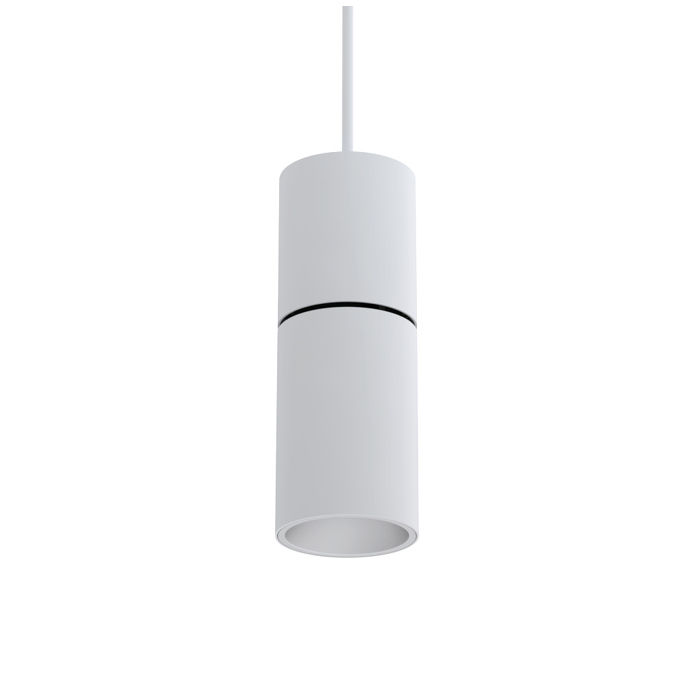

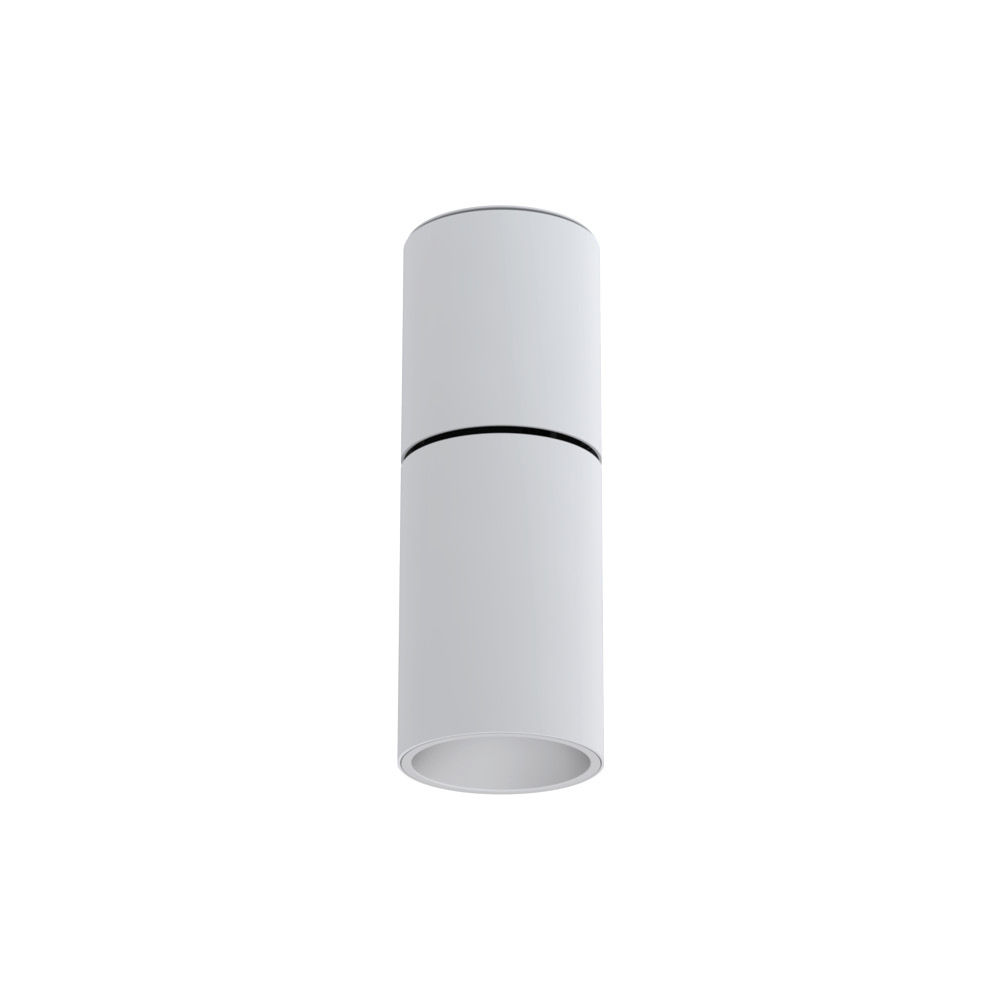

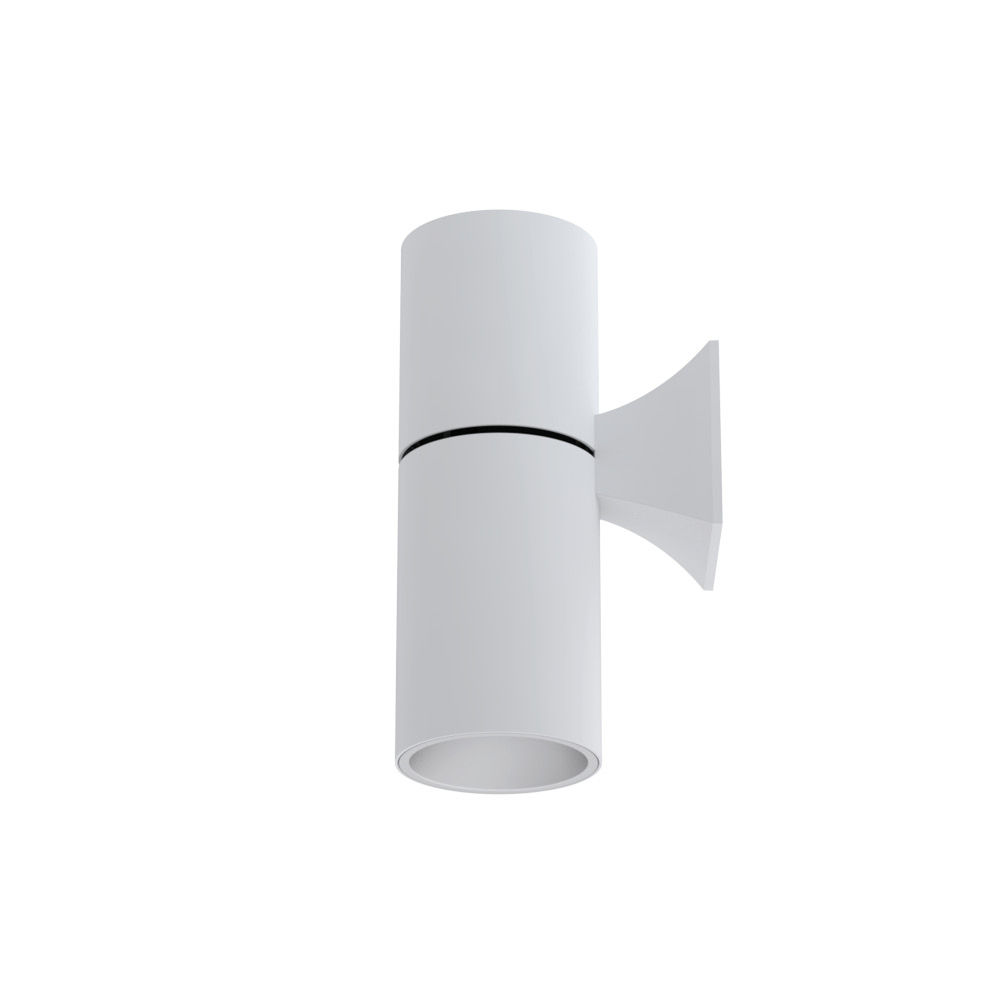

The Gravity 4-inch high-performance Architectural Cylinder offers a dynamic solution for high output illumination. Designed for use in a variety of architectural applications, Gravity cylinders provide uniform light distribution. The single point source LED package is highly configurable; available in 2700K, 3000K, 3500K, and 4000K with 2 SDCM binning to ensure color consistency across luminaires, in 82 or 92 CRI. Field changeable TIR Optics are available in 14°, 20°, 30°, 40°, and 50° beam options. Specification Grade Reflector with controlled light distribution at a 55° cut off. Select from Aircraft Cable, Sloped Rigid Pendant, Wall, and Surface mounting options. External Battery operates for up to 90 minutes. Remote test switch included. Suitable for Damp Locations.
Specifications
Instruction Sheet
IES
Technical Information
Product Features
Aperture Size : 4-In
Product Family : Gravity
Lumen Output : 501-1000,1001-1500,1501-2000,2001-3000,3001-4000,4001-5000
Product Shape : Round
Product Type : Downlight
Listings : Damp Location
Light Source Features : Static White
Emergency Battery Back-up : Y
Product Category : Cylinder
Standards and Certifications
Buy American Act (BAA) Compliant : Yes
