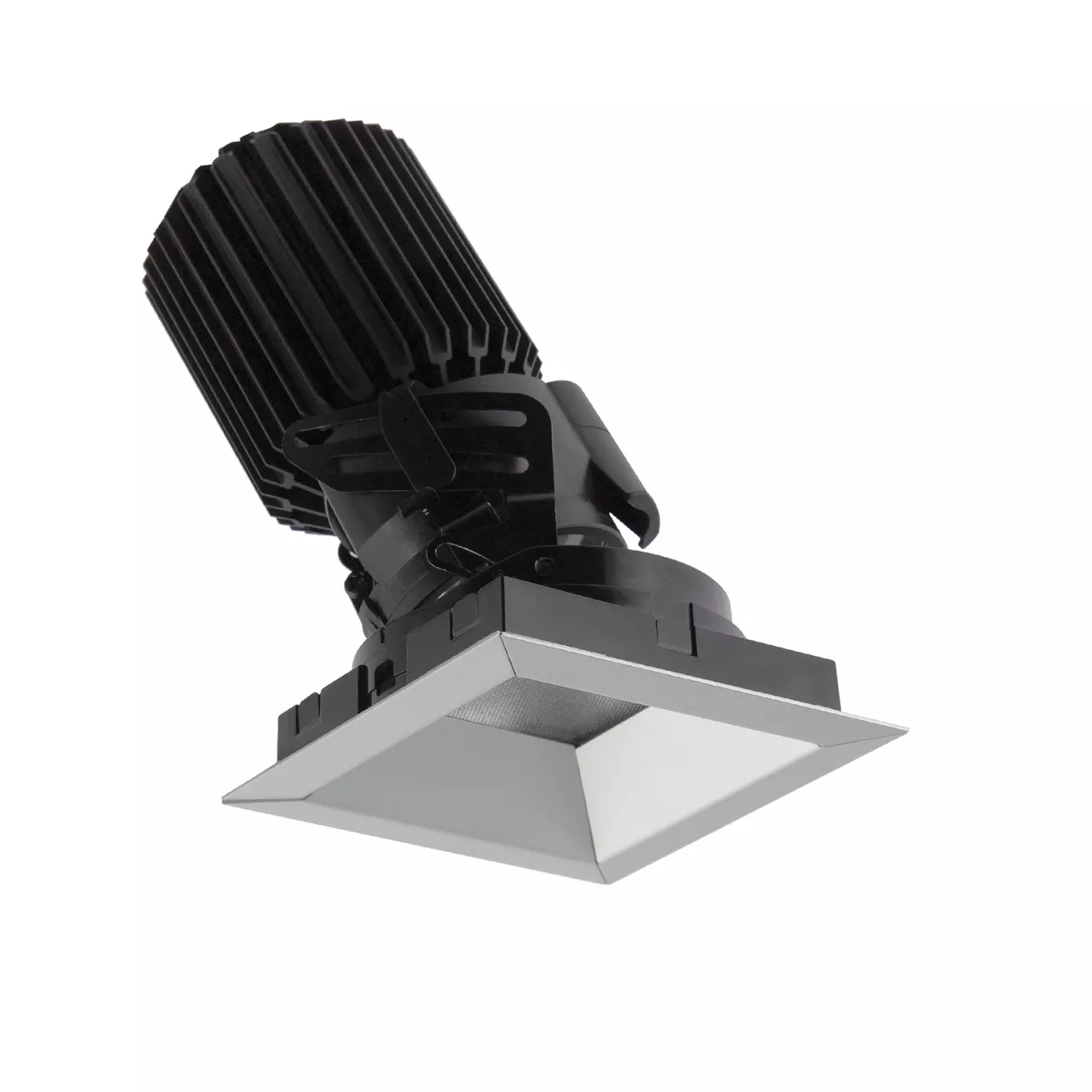

2" Square Gravity Adjustable Downlight
GD2AS
Ideal for applications where accent lighting is key

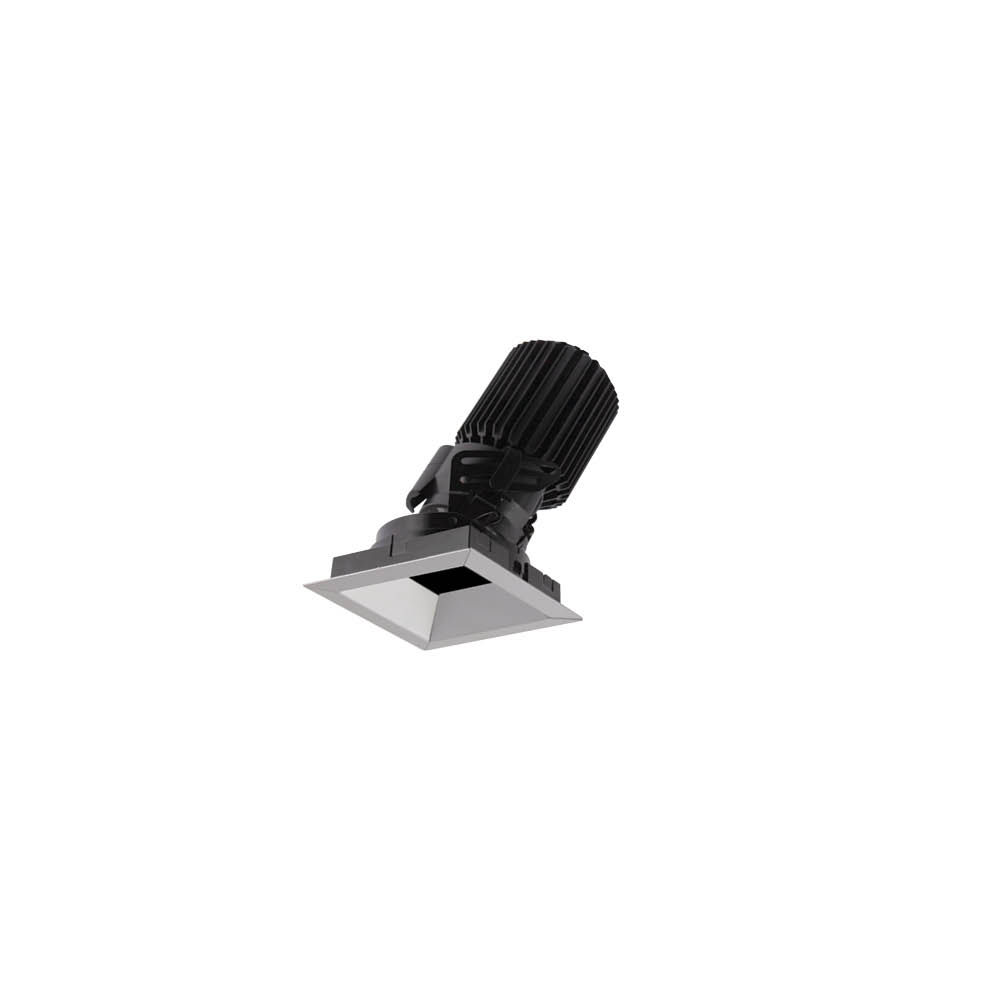

The Gravity 2-inch high-performance Adjustable Architectural Downlight is ideal for applications where accent lighting is key. Tool-less, lockable adjustability: 45º vertical and 360º horizontal with consistent lumen delivery throughout the adjustment range.
Innovative spring actuated fold frame is designed to take the complexity out of below ceiling installations. Tool-less adjustability with 360° of rotation. In-field adjustable collar height accommodates ceiling thicknesses from 1 /2" to 1-1/4" with no loss in performance. Deep-seated light engine for minimal glare and maximum adjustability. Single point source LED package is highly configurable, available in a broad range of outputs, CCT and CRI options, and beam spreads with extensive dimming options. Field interchangeable optics provide precision performance and visual comfort, ranging from 16° to 60°. Specification Grade aluminum trims give a clean, sleek finish.
Specifications
Instruction Sheet
Resources
IES
Technical Information
Product Features
Product Aperture Size : 2-In
Product Type : Adjustable

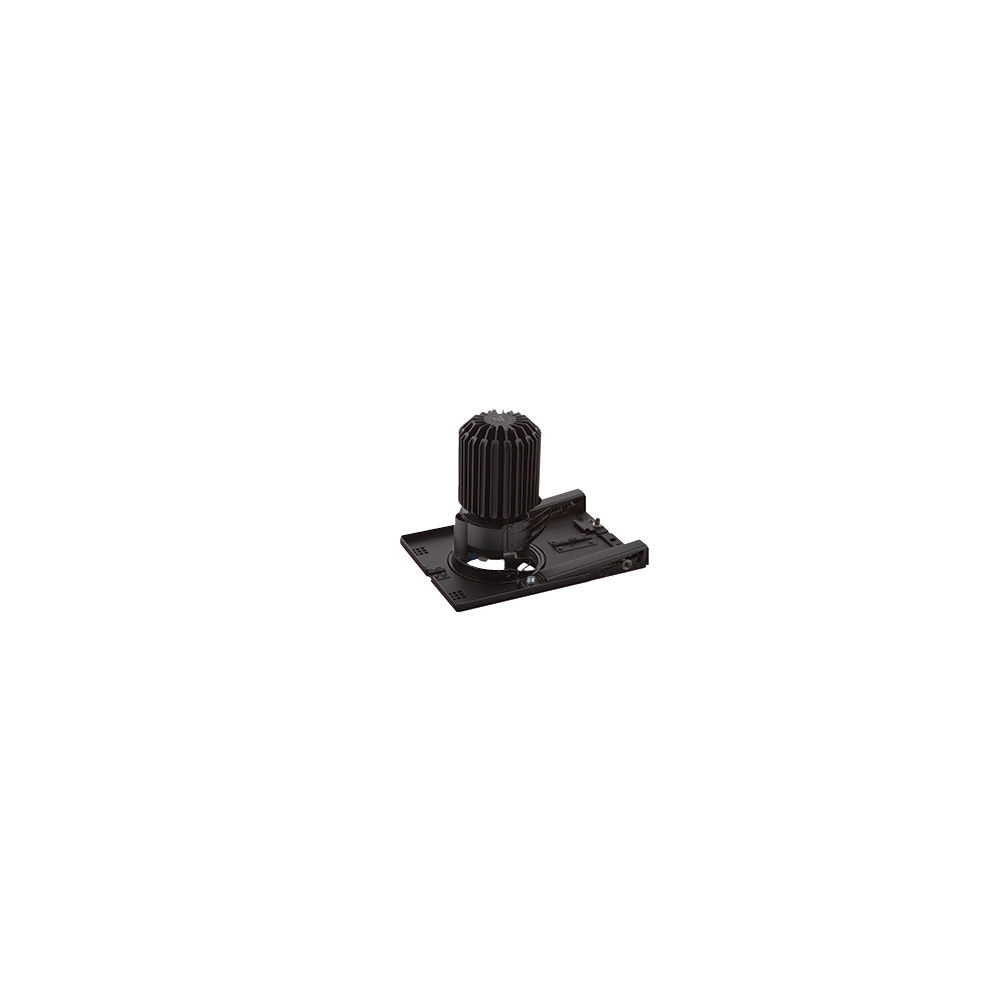

Construction Type : New Construction,Remodel
Product Family : Gravity
Listings : Wet Location,Title 24 Part 6 JA8,Non-IC,ASTM E283 Air-Tight,Insulated Ceiling (IC)
Lumen Output : 501-1000,1001-1500
Product Shape : Square
Product Category : Downlight

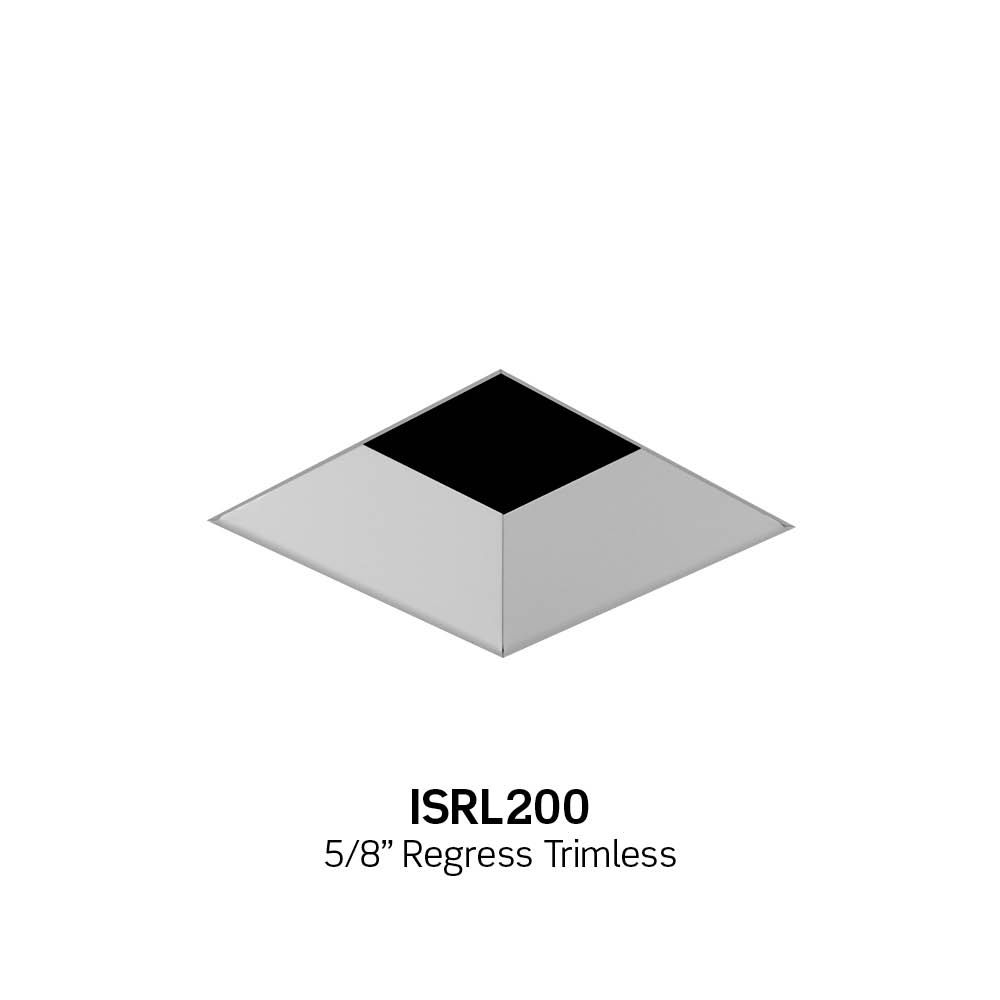

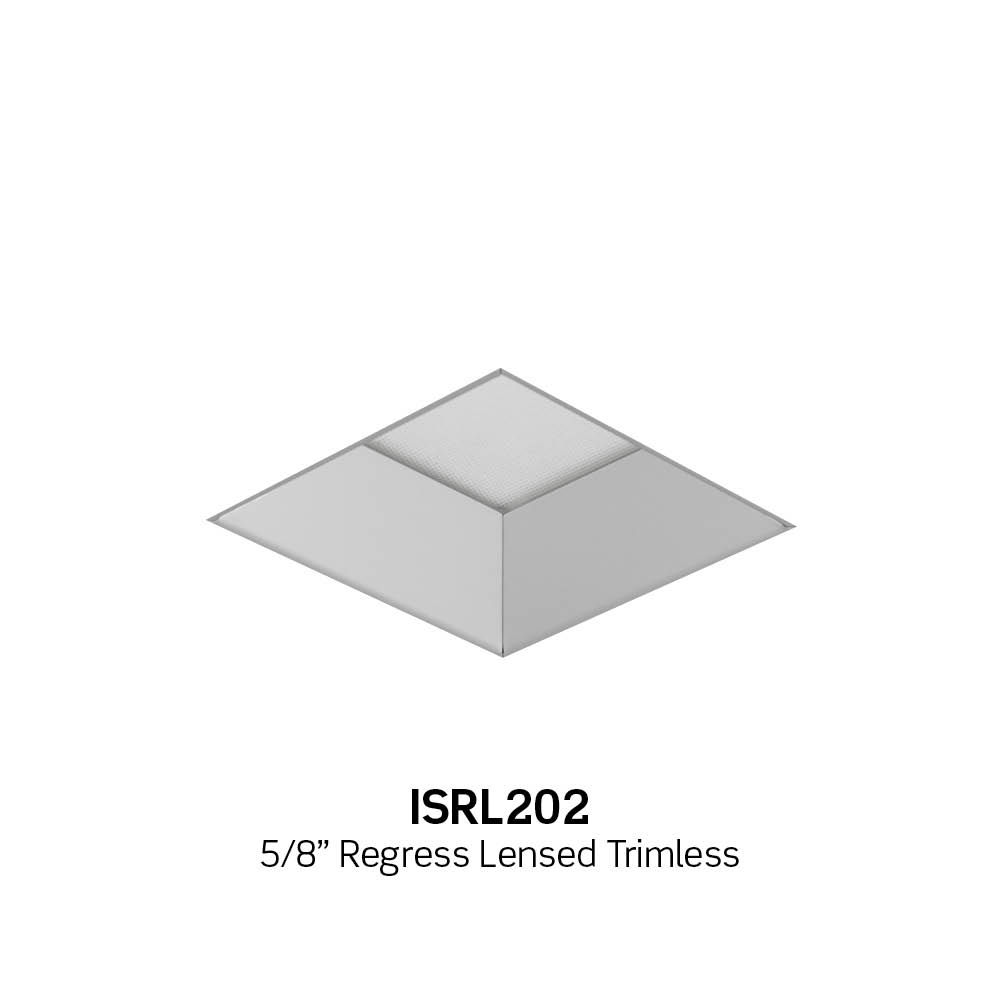

Trim Type : Reflector,Trimless Reflector
Emergency Battery Back-up : Y
Light Source Features : Static White
Standards and Certifications
Buy American Act (BAA) Compliant : Yes
