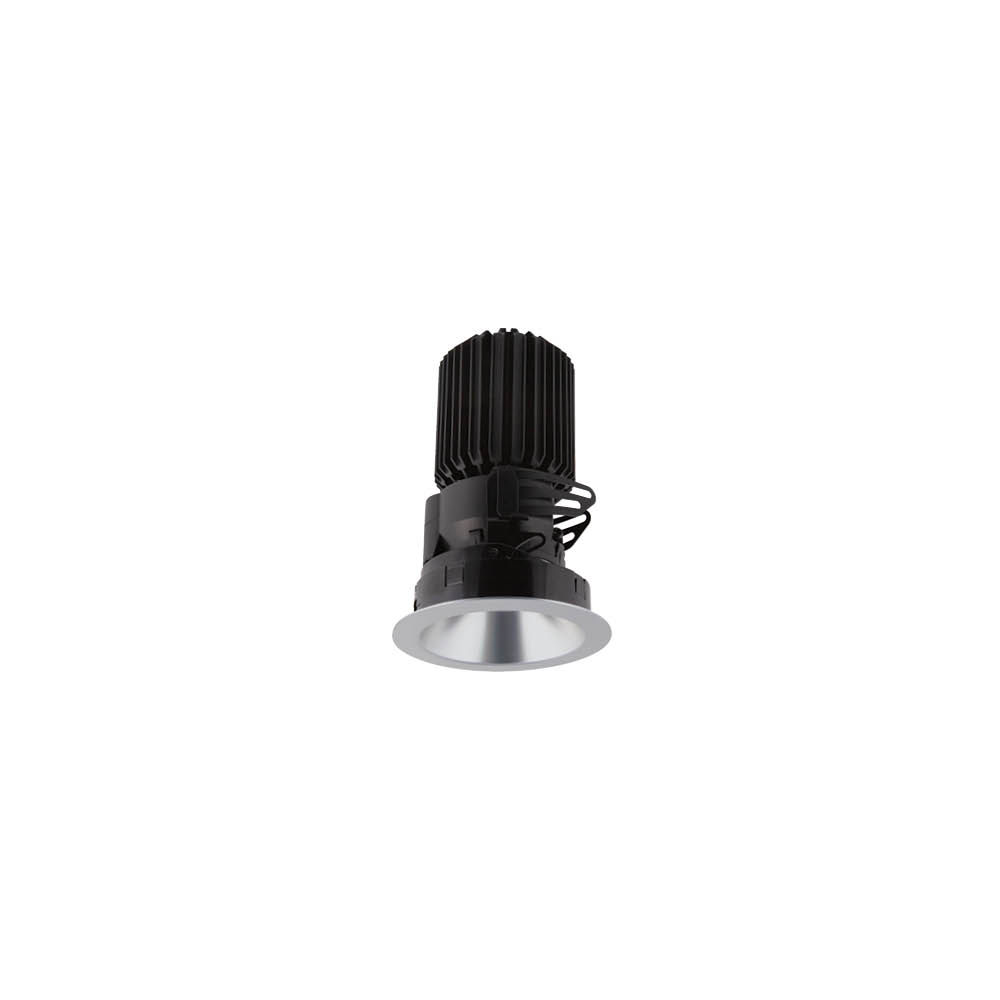

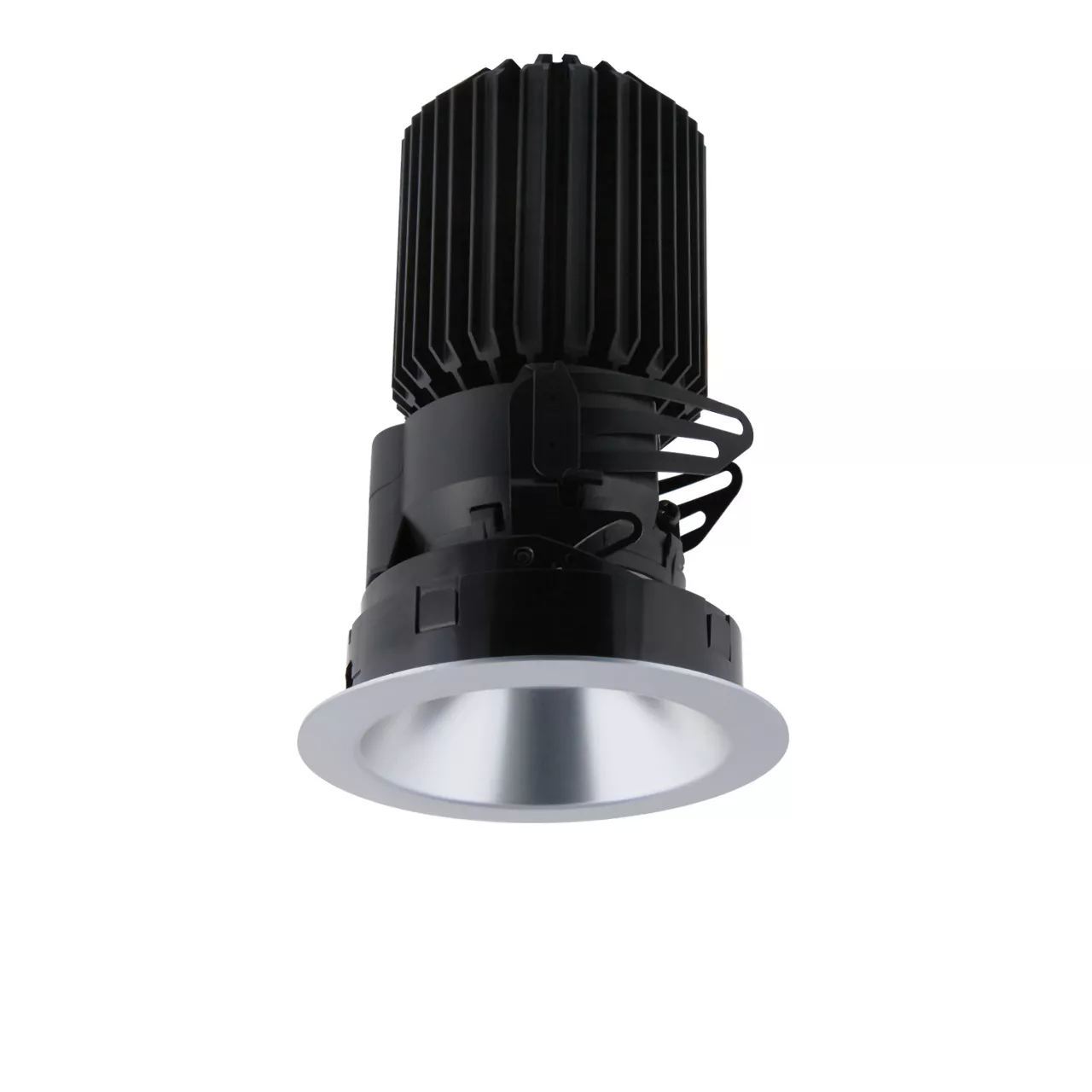

2" Gravity Downlight
GD2DR

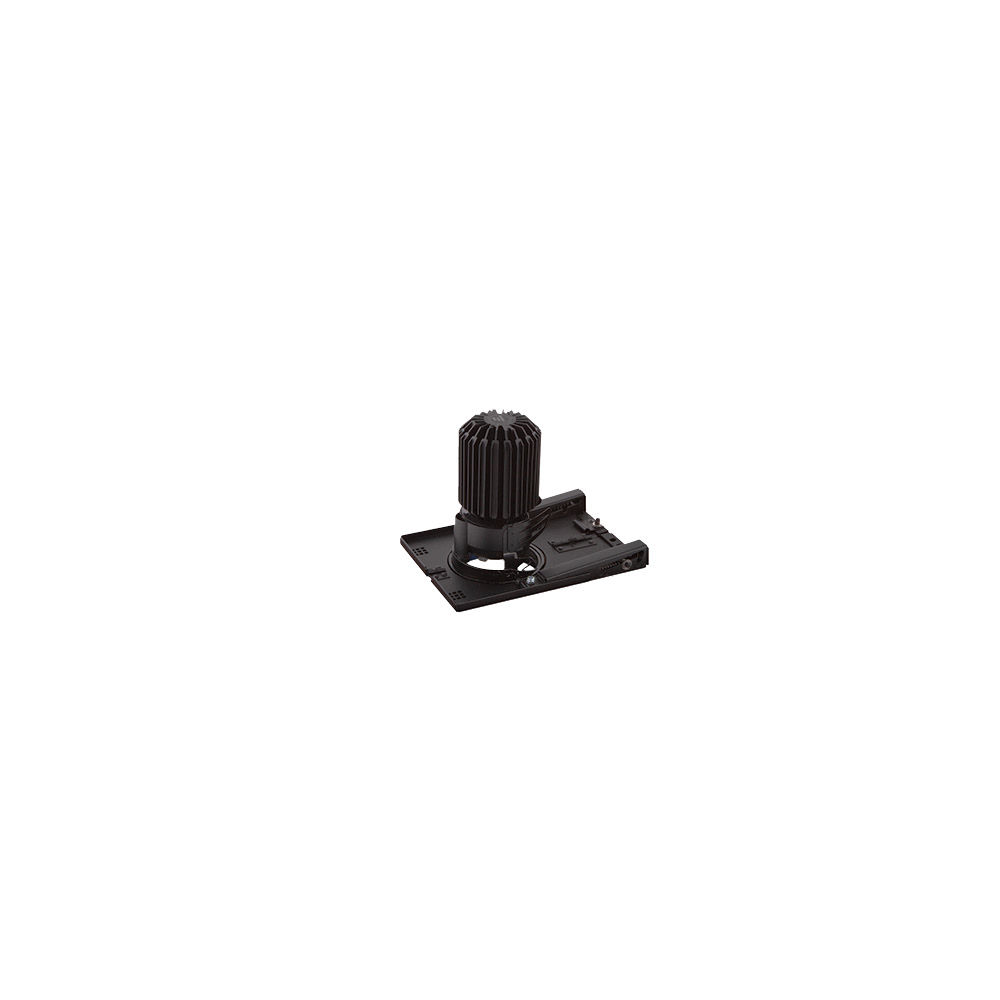

The Gravity 2-inch architectural recessed downlight offers small aperture lighting without compromise. it features a highly configurable single point source LED package and is capable of delivering up to 1500 lumens. Make installation easy with an innovative fold frame and collar that can be installed from below the ceiling and is designed to adjust to ceiling thicknesses ranging from 1/2" to 1-1/4”. Specification grade trims come in round or square and are available in four distinct finishes and can be paired with a broad range of outputs, CCT’s, CRI options, beam spreads and accessories.
Product Information
Product Features
Aperture Size : 2 in
Application : Downlight
Construction Type : New Construction,Remodel
Family : Gravity
Light Source : LED
Listings : Wet Location,CA Title 24, JA8
Lumen Output : 501-1000,1001-1500
Product Shape : Round
Product Type : Recessed
Trim Type : Trim,Trimless
FEATURES
- Dedicated High performance 7° Narrow Spot
- Field changeable 16° to 60° Optics
- Integral field changeable accessory holder
- In-field adjustable module height accommodates 1/2” to 1-1/4” ceiling thickness
LED LIGHT ENGINE
- 8W, 10W, 15W & 20W
- 7° Optic: 3 SDCM, 82/92CRI in 2700K, 3000K & 3500K
- 16° to 60° Optics: 2 SDCM, 82/92CRI in 2700K, 3000K, 3500K & 4000K
- Rated life of >50,000 hours L70 based on LED testing per LM-80-08 and projected values using IESNA TM21-11
