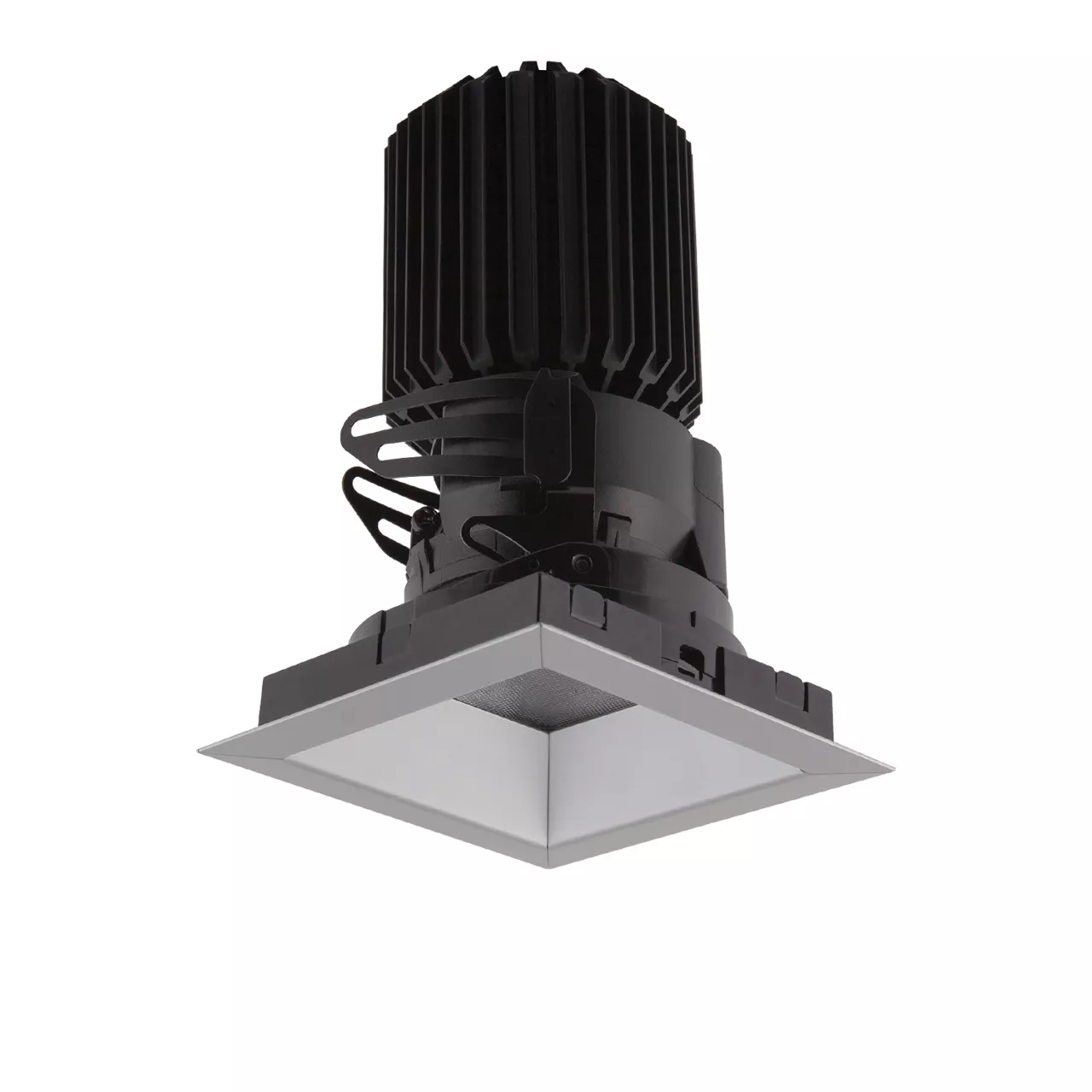

2" Gravity Downlight Square
GD2DS
The Gravity 2-inch architectural recessed downlight offers small aperture lighting without compromise. it features a highly configurable single point source LED package and is capable of delivering up to 1500 lumens. Make installation easy with an innovative fold frame and collar that can be installed from below the ceiling and is designed to adjust to ceiling thicknesses ranging from 1/2" to 1-1/4”. Specification grade trims come in round or square and are available in four distinct finishes and can be paired with a broad range of outputs, CCT’s, CRI options, beam spreads and accessories.
Specifications
Instruction Sheet
Resources
IES
Technical Information
Product Features
Aperture Size : 2-In
Product Category : Downlight

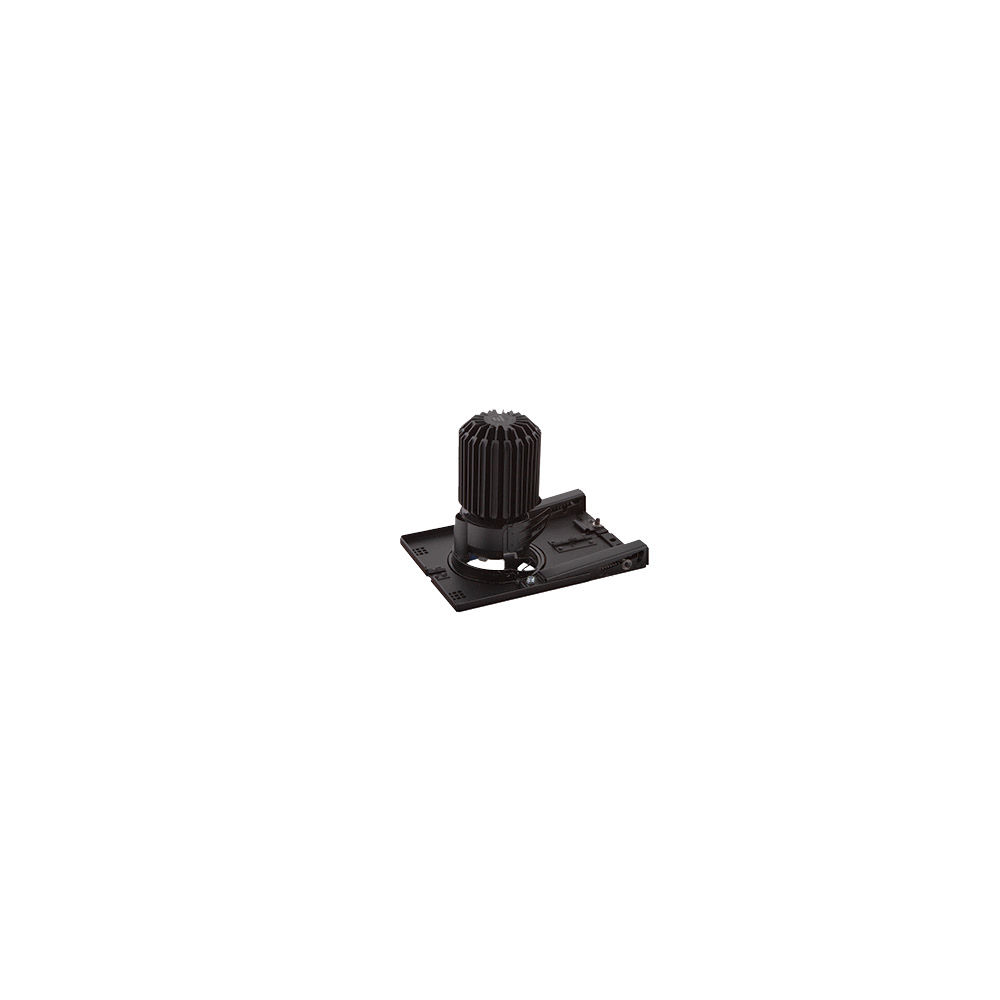

Construction Type : New Construction,Remodel
Product Family : Gravity
Light Source Features : Static White
Listings : Wet Location,Title 24 Part 6 JA8,Insulated Ceiling (IC),Non-IC,Air-Tight IC
Lumen Output : 501-1000,1001-1500
Product Shape : Square
Product Type : Downlight

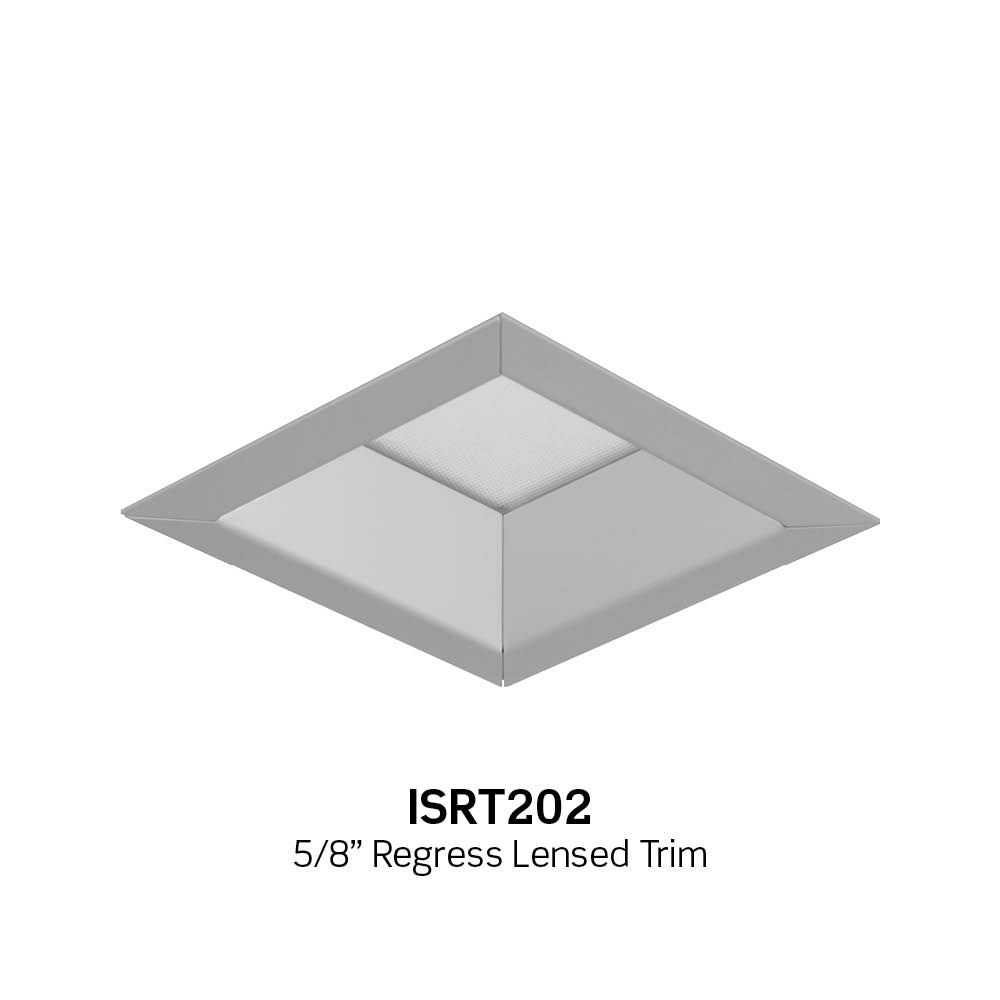

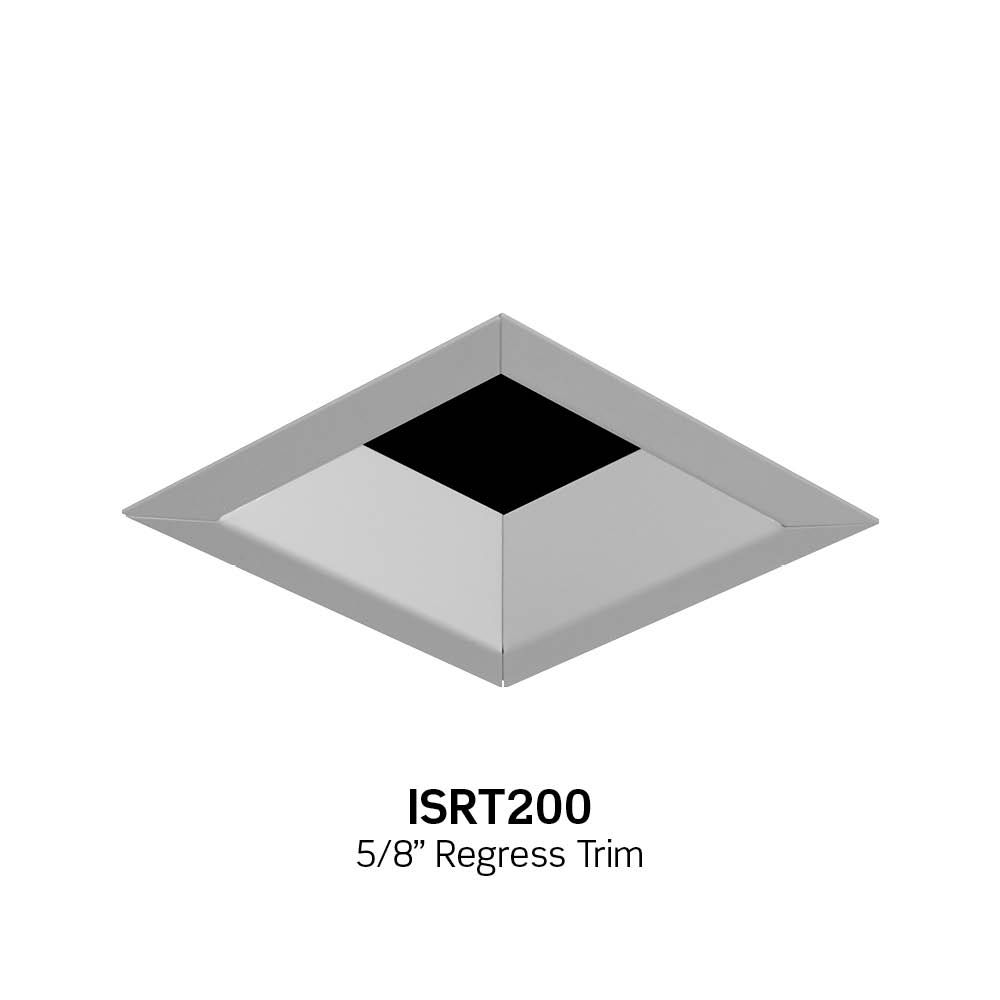

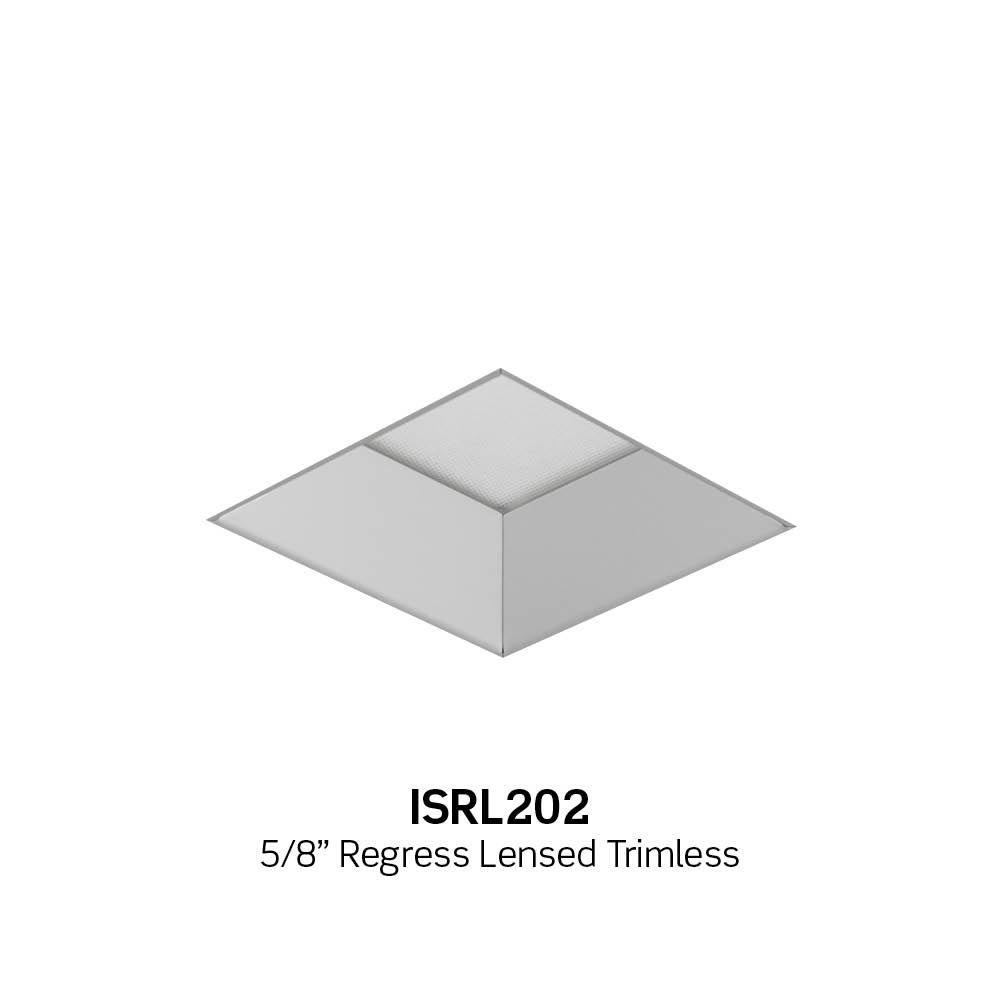

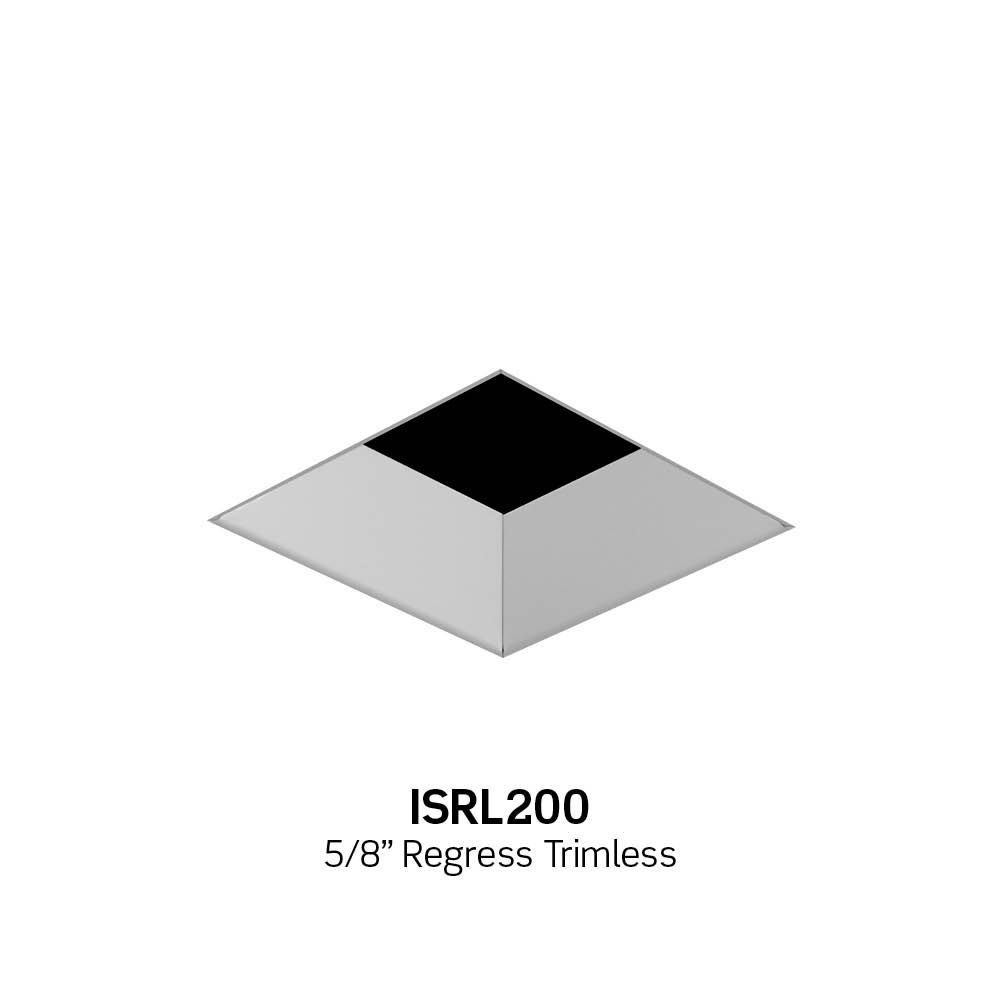

Trim Type : Trim,Trimless
Emergency Battery Back-up : Y
Standards and Certifications
Buy American Act (BAA) Compliant : Yes
Features & Benefits
FEATURES
- Dedicated High performance 7° Narrow Spot
- Field changeable 16° to 60° Optics
- Integral field changeable accessory holder
- In-field adjustable module height accommodates 1/2” to 1-1/4” ceiling thickness
LED LIGHT ENGINE
- 8W, 10W, 15W & 20W
- 7° Optic: 3 SDCM, 82/92CRI in 2700K, 3000K & 3500K
- 16° to 60° Optics: 2 SDCM, 82/92CRI in 2700K, 3000K, 3500K & 4000K
- Rated life of >50,000 hours L70 based on LED testing per LM-80-08 and projected values using IESNA TM21-11
