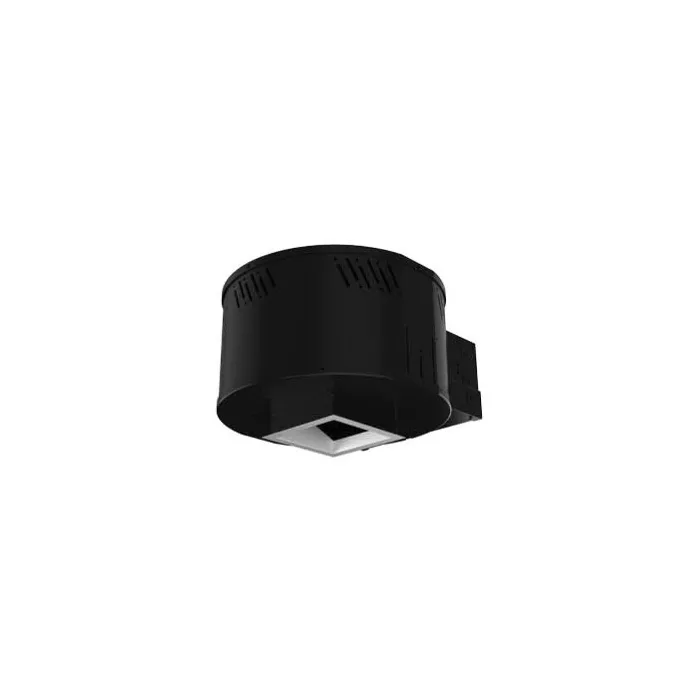

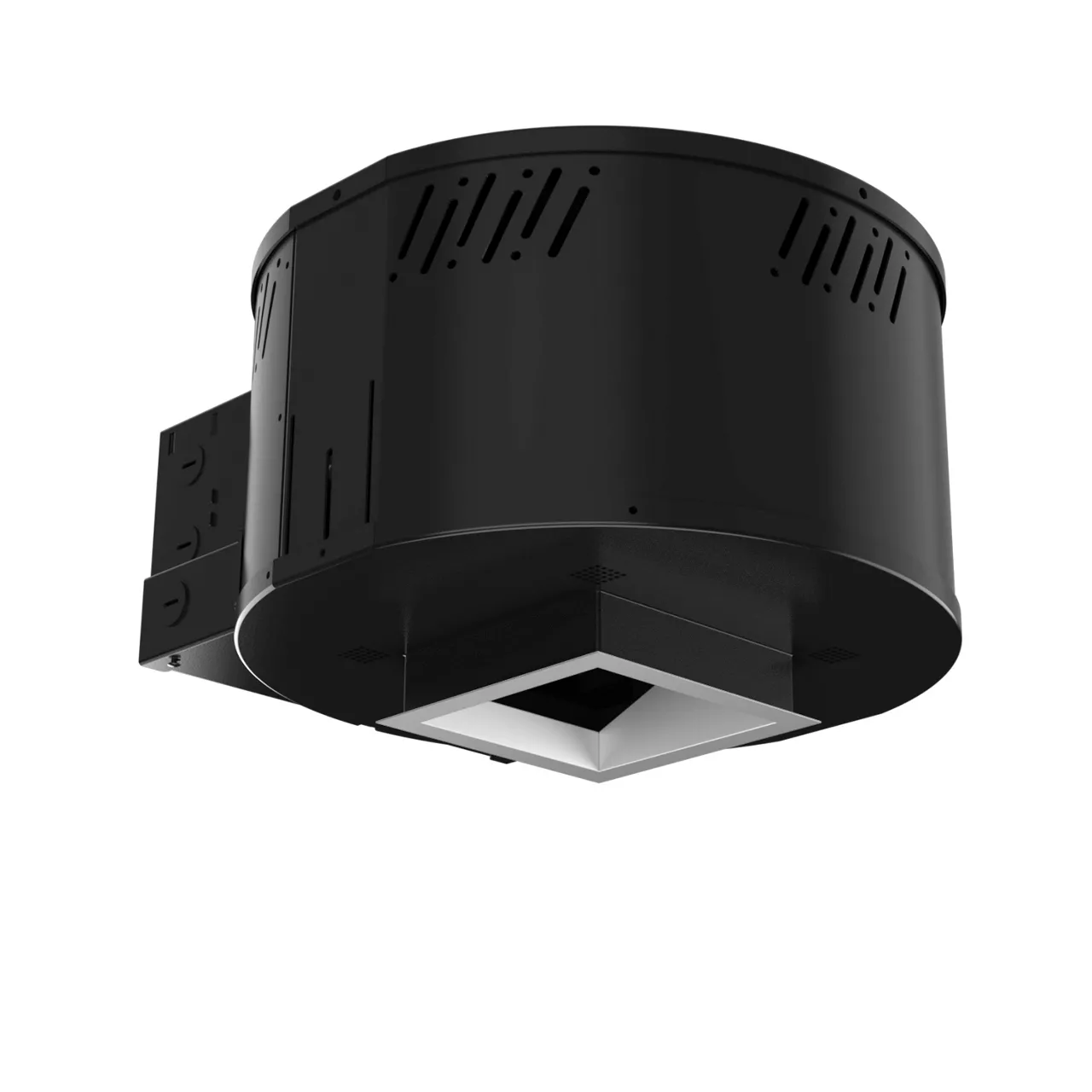

4" Square Adjustable Gravity Downlight

GD4AS

Ideal for applications where accent lighting is key

Adjustable Architectural Downlight is a versatile high-performance downlight that is ideal for applications where accent lighting is key. Offering the optimal placement of light, it features 40° vertical and 359° horizontal locking adjustments. Consistently delivered lumens throughout the adjustment range.

A highly configurable single point source LED package is common across the line with an extensive choice of lumen packages, color temperatures, beam spreads, and dimming configurations. Field changeable twist-and-lock Optics available in 14°, 20°, 30°, 40°, and 50° deliver precision performance. Specification Grade Trims provide comfortable illumination with 55° cutoff and elegant finishes.

Specifications

Instruction Sheet

Resources

IES

Technical Information

  • Product Features

    Aperture Size : 4-In

    Product Type : Adjustable

    Construction Type : New Construction

    Product Family : Gravity

    Light Source Features : Static White

    Lumen Output : 1001-1500,1501-2000,2001-3000,3001-4000,4001-5000

    Product Shape : Square

    Product Category : Downlight

    Trim Type : Reflector

    Listings : Damp Location

    Emergency Battery Back-up : Y

  • Standards and Certifications

    Buy American Act (BAA) Compliant : Yes
