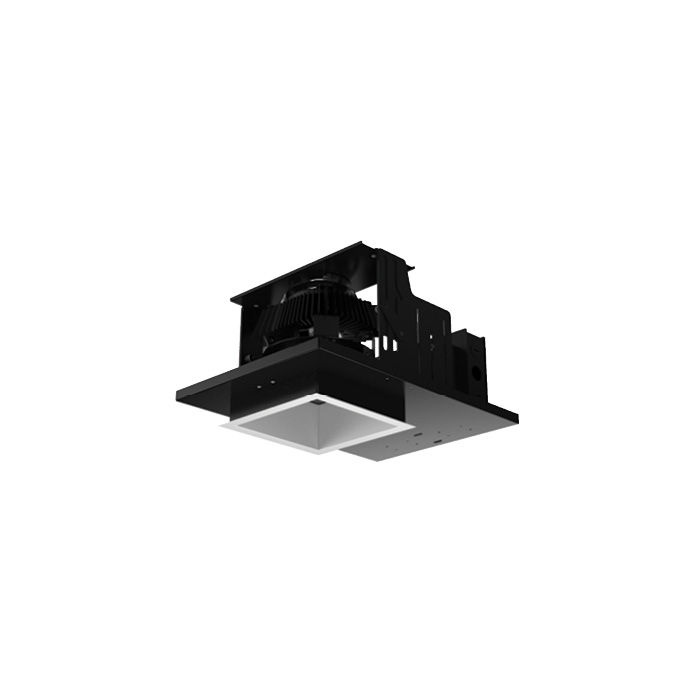

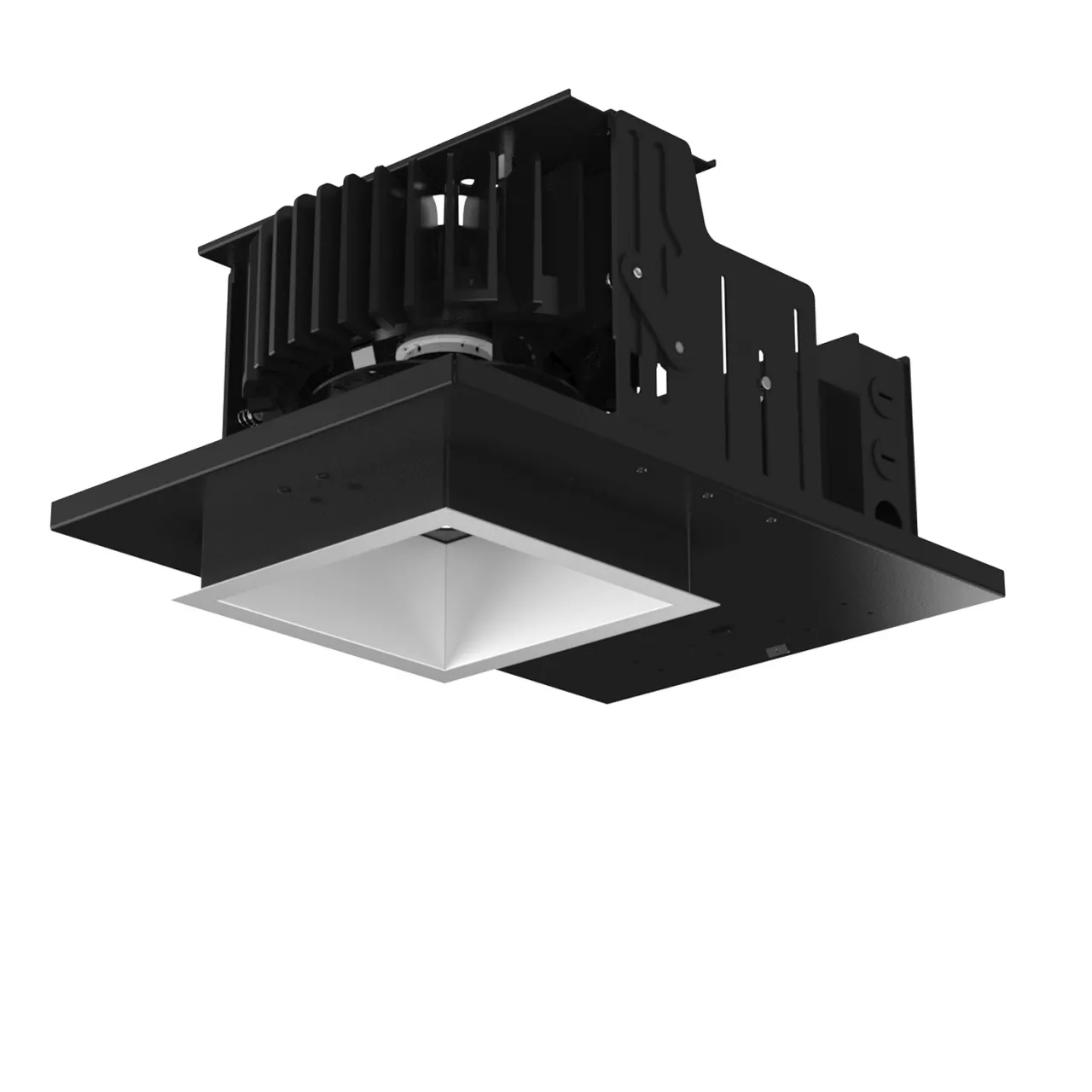

6" Square Gravity Downlight

GD6DS

Ideal for a wide range of ceiling heights and lighting applications

The Gravity Downlight is a high-performance LED luminaire ideal for a wide range of ceiling heights and lighting applications. The modular design allows for in-field modifications.

A highly configurable single point source LED package is common across the line with an extensive choice of lumen packages, color temperatures, beam spreads, and dimming configurations. Field changeable twist-and-lock Optics available in 14°, 20°, 30°, 40°, and 50° deliver precision performance. Specification Grade Trims feature a discrete, polished, self-flange with controlled light distribution at a 60° cut off.

Specifications

Instruction Sheet

Resources

IES

Technical Information

  • Product Features

    Aperture Size : 6-In

    Product Category : Downlight

    Construction Type : New Construction

    Product Family : Gravity

    Light Source Features : Static White

    Listings : Wet Location

    Lumen Output : 501-1000,1001-1500,1501-2000,2001-3000,3001-4000,4001-5000,5001-10000

    Product Shape : Square

    Product Type : Downlight

    Trim Type : Reflector

    Emergency Battery Back-up : Y

  • Standards and Certifications

    Buy American Act (BAA) Compliant : Yes
