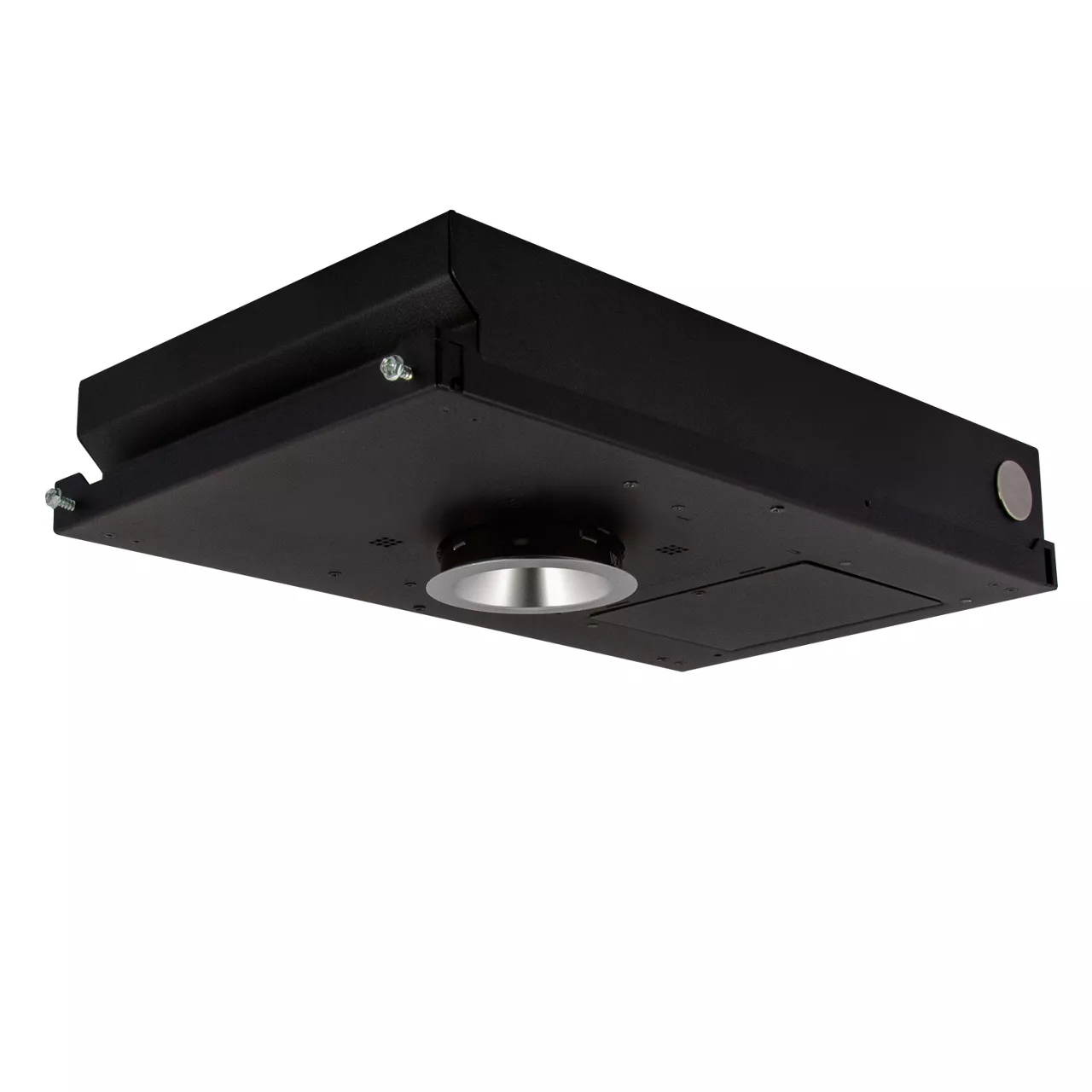

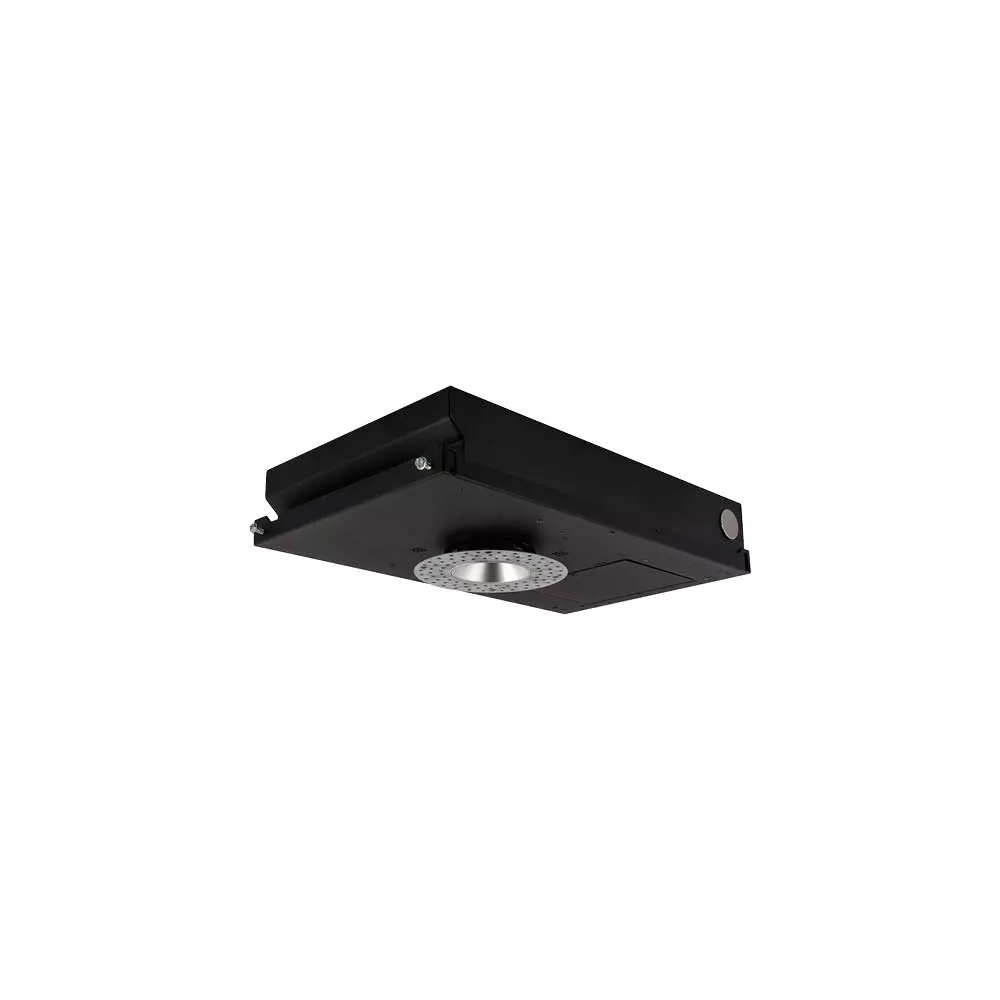

2" Shallow Gravity Downlight

GDS2DR

High performance 2-Inch Architectural Shallow Downlighting: versatile enough to meet any lighting application

High performance 2-Inch Architectural Downlighting: the Gravity 2-inch is versatile enough to meet any lighting application.

Innovative spring actuated fold frame is designed to take the complexity out of below ceiling installations. The shallow New Construction housings fit into narrow plenum spaces at only 2-1/2" high. In-field adjustable collar height accommodates ceiling thicknesses from 1 /2" to 1-1/4" with no loss in performance. Deep-seated light engine for minimal glare and maximum adjustability. Single point source LED package is highly configurable, available in a broad range of outputs, CCT and CRI options, and beam spreads with extensive dimming options. Field interchangeable optics provide precision performance and visual comfort, ranging from 16° to 60°. Specification Grade aluminum trims give a clean, sleek finish.

Specifications

Instruction Sheet

Resources

IES

Technical Information

  • Product Features

    Aperture Size : 2-In

    Construction Type : New Construction

    Product Family : Gravity

    Light Source Features : Static White

    Listings : Title 24 Part 6 JA8,Wet Location,Insulated Ceiling (IC),ASTM E283 Air-Tight

    Lumen Output : 501-1000,1001-1500

    Product Shape : Round

    Product Type : Shallow

    Trim Type : Reflector,Trimless Reflector

    Product Category : Downlight

    Emergency Battery Back-up : Y

  • Standards and Certifications

    Buy American Act (BAA) Compliant : Yes
