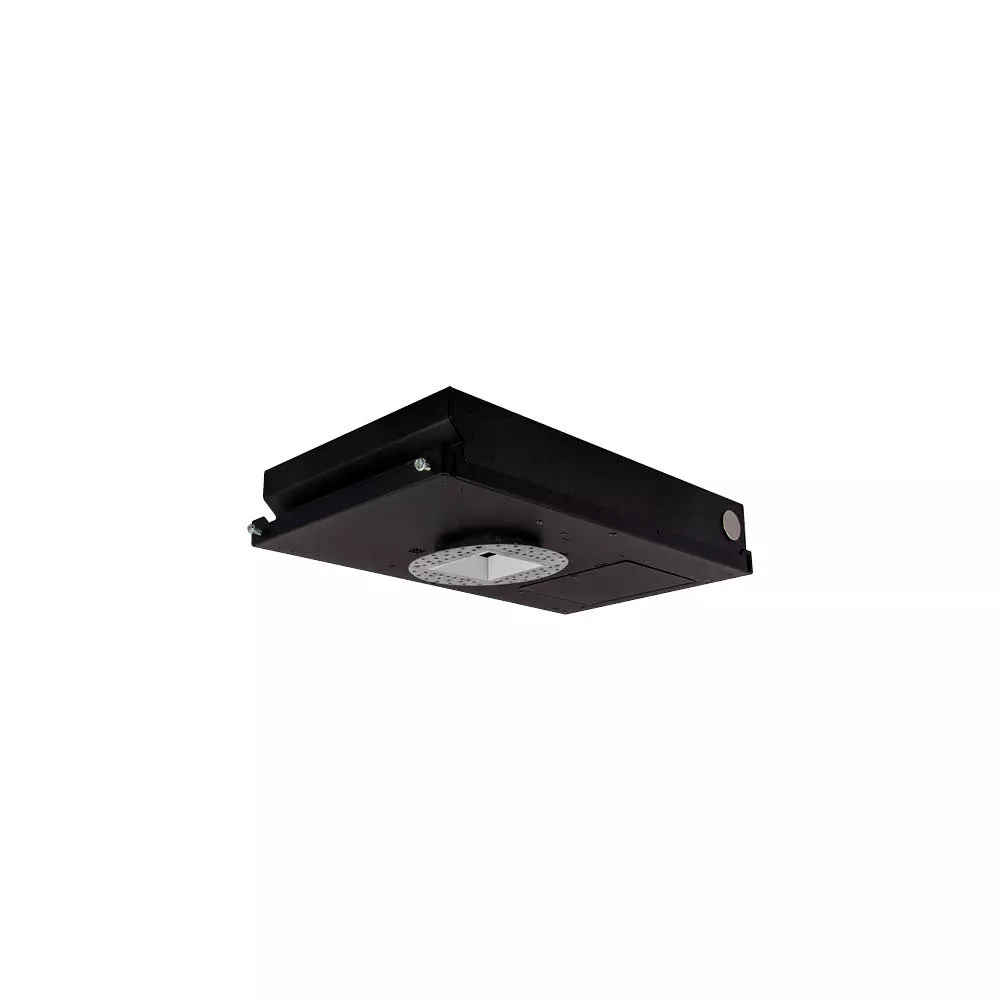

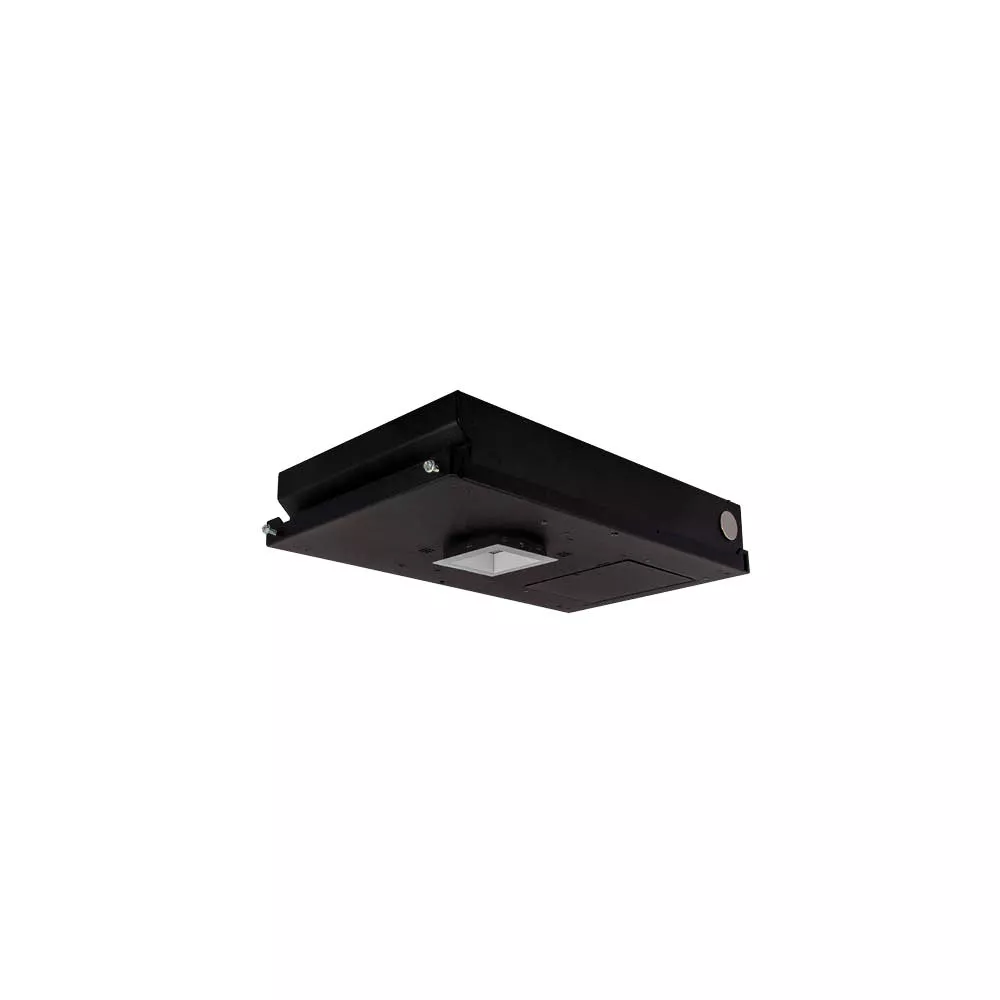

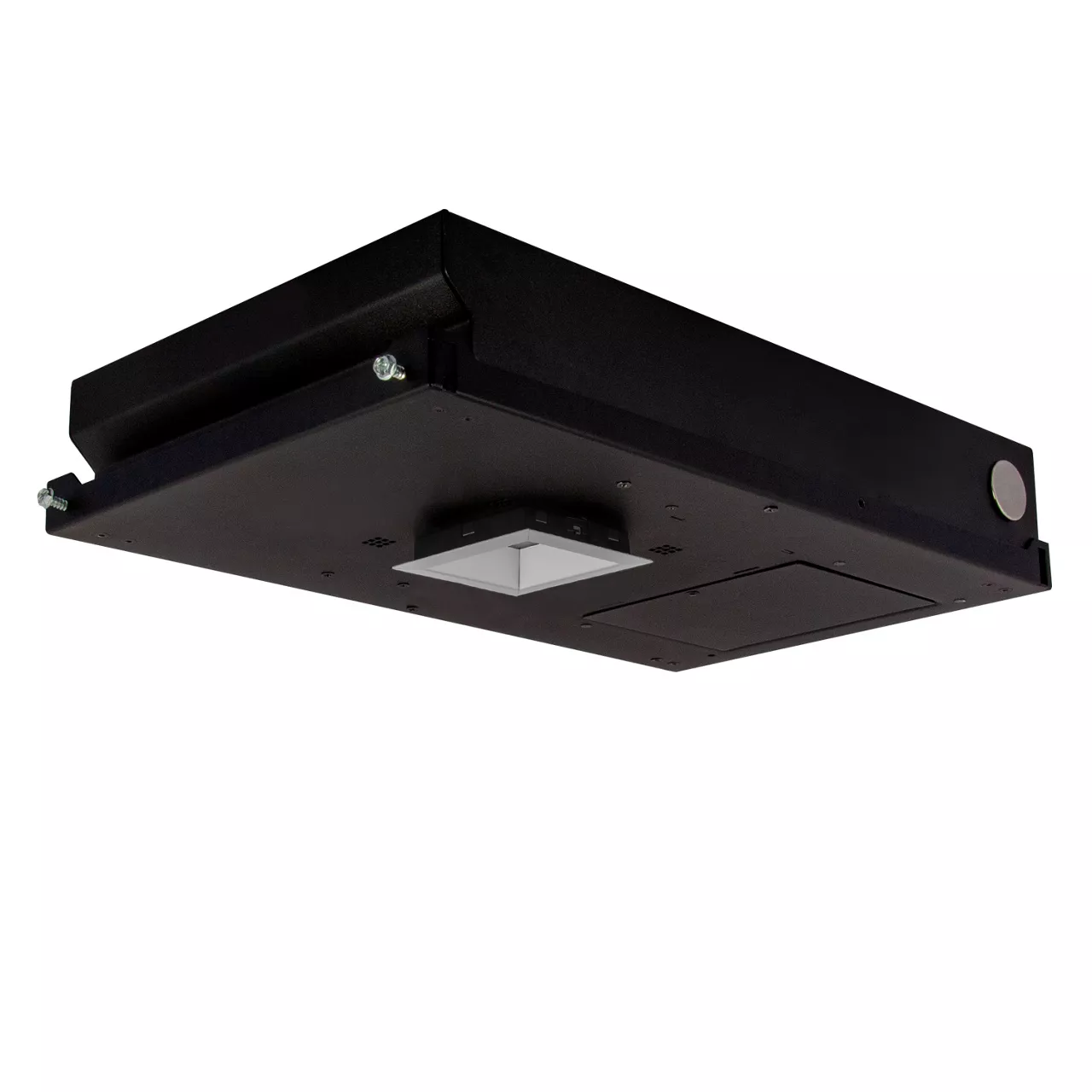

2" Square Shallow Gravity Downlight

GDS2DS

Fits into narrow plenum spaces

High performance 2-Inch Architectural Downlighting: the Gravity Downlight is versatile enough to meet any lighting application.

Shallow New Construction housings fit into narrow plenum spaces at only 2-1/2" high. Innovative spring actuated fold frame is designed to take the complexity out of below ceiling installations. In-field adjustable collar height accommodates ceiling thicknesses from 1 /2" to 1-1/4" with no loss in performance. Deep-seated light engine for minimal glare and maximum adjustability. Single point source LED package is highly configurable, available in a broad range of outputs, CCT and CRI options, and beam spreads with extensive dimming options. Field interchangeable optics provide precision performance and visual comfort, ranging from 16° to 60°. Specification Grade aluminum trims give a clean, sleek finish.

Specifications

Instruction Sheet

Resources

IES

Technical Information

  • Product Features

    Aperture Size : 2-In

    Construction Type : New Construction

    Product Family : Gravity

    Light Source Features : Static White

    Listings : Title 24 Part 6 JA8,Wet Location,Insulated Ceiling (IC),ASTM E283 Air-Tight

    Lumen Output : 501-1000

    Product Shape : Square

    Product Type : Shallow

    Trim Type : Reflector,Trimless Reflector

    Product Category : Downlight

    Emergency Battery Back-up : Y

  • Standards and Certifications

    Buy American Act (BAA) Compliant : Yes
