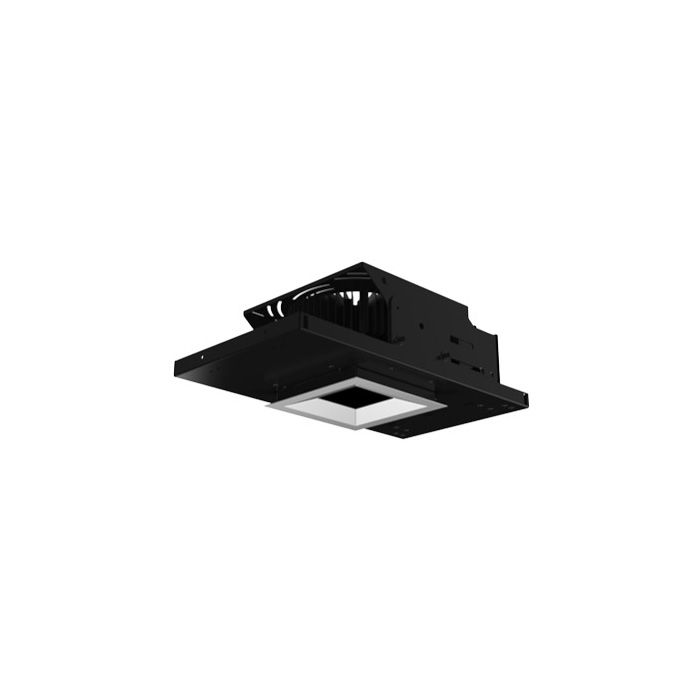

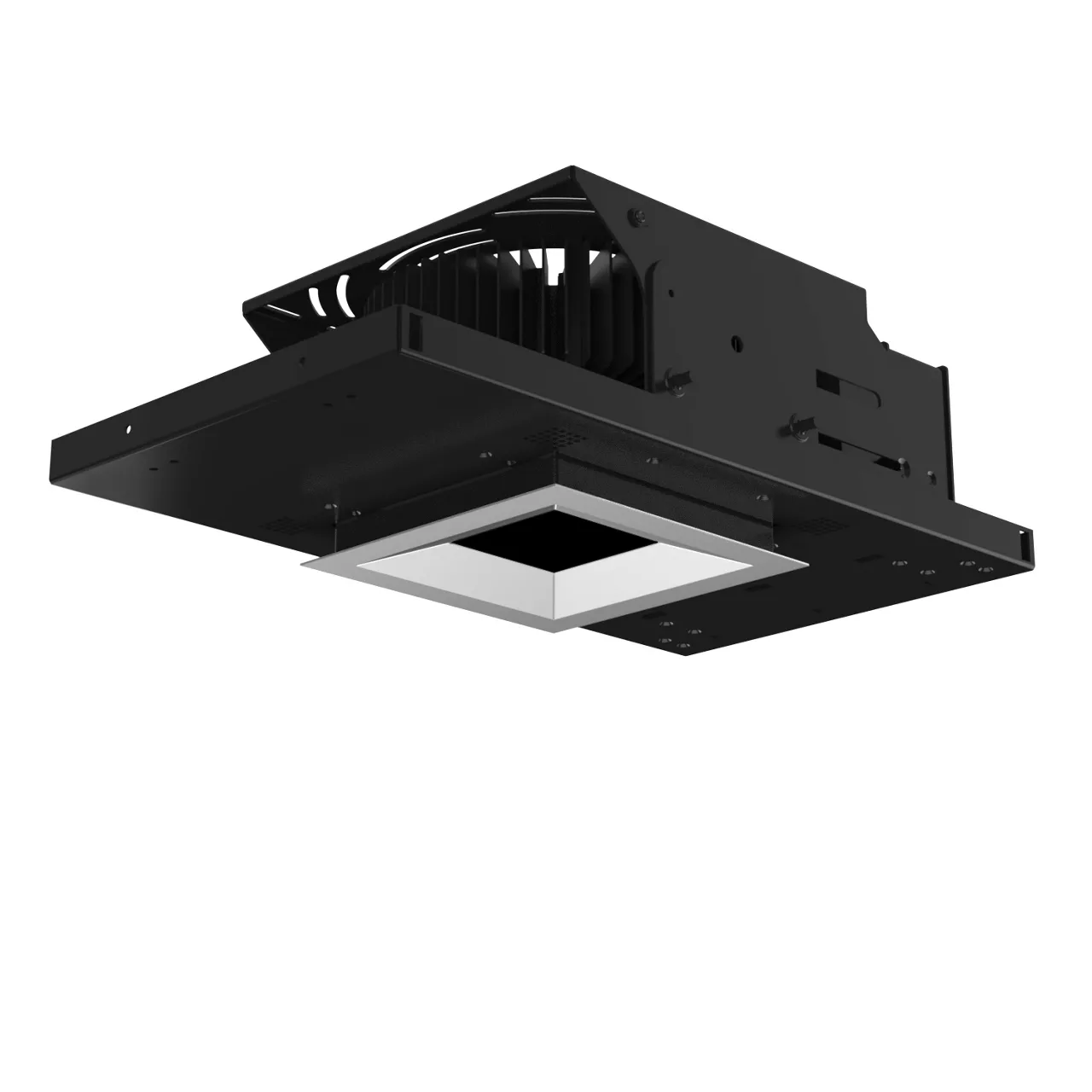

4" Gravity Square Shallow Downlight
GDS4DS
NEXT GENERATION The Gravity 4-inch Shallow Downlight takes up just 3.9-inches of plenum space yet is still capable of delivering up to 4500 lumens. An extremely versatile LED package delivers class leading performance in even the tightest of plenum spaces. The luminaire comes in specification grade trims in 5 distinct finishes and a choice of outputs, CCT’s, CRI options, beam spreads and accessories.
Specifications
Instruction Sheet
IES
Technical Information
Product Features
Aperture Size : 4-In
Product Category : Downlight
Construction Type : New Construction
Product Family : Gravity
Light Source Features : Static White
Listings : Damp Location
Lumen Output : 1001-1500,1501-2000,2001-3000,3001-4000,4001-5000
Product Shape : Square
Product Type : Shallow
Trim Type : Trim
Emergency Battery Back-up : Y
Standards and Certifications
Buy American Act (BAA) Compliant : Yes
Features & Benefits
Features
Housing is 3.9” tall with minimal 5/8” collar that expands up to 1 1/4” for thicker ceilings via hanger bar placement
LED Light Engine
- 9W, 18W, 25W, 35W, and 50W
- 82 CRI & 2700K, 3000K, 3500K, 4000K
- 92 CRI available in 2700K & 3000K
- 3 Step MacAdam (3 SDCM)
- 50,000 hour average rated life at 70% output
