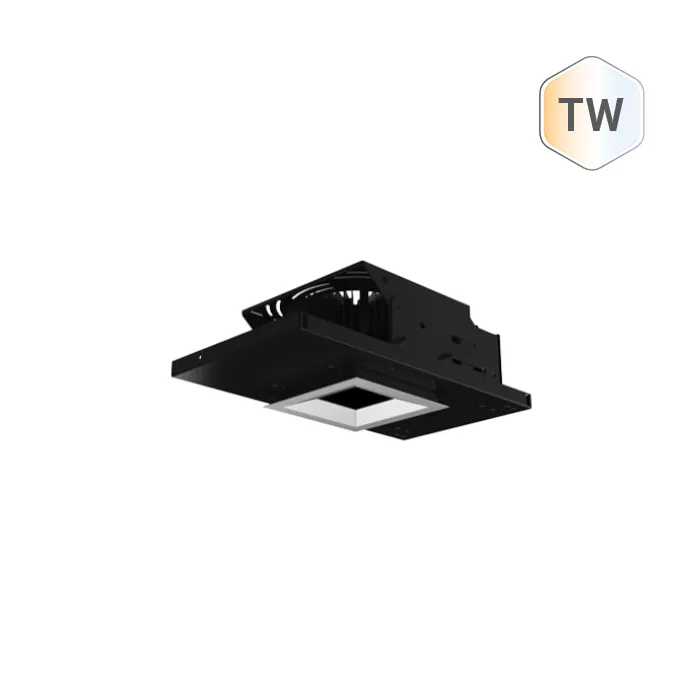

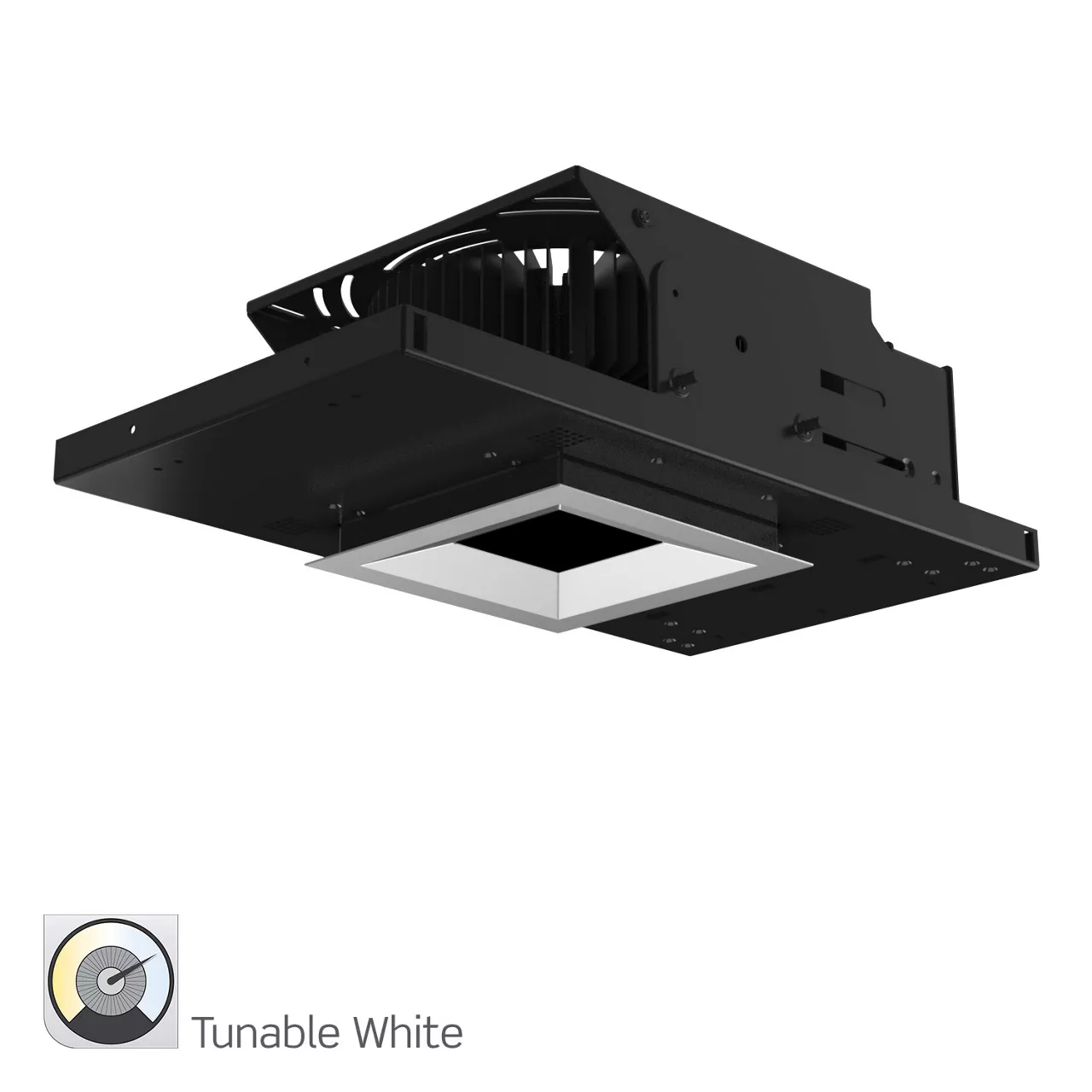

4" Gravity Square Shallow Tunable White Downlight
GDS4DSTW
NEXT GENERATION The Gravity Tunable White LED technology gives you the ability to control color temperature and intensity and provides brilliant illumination with high and more vibrant color rendering across the tuning range. Tunable white can be set at any color temperature between 2700K and 6500K and is capable of delivering up to 2500 lumens. The Gravity 4-inch Shallow Downlight takes up just 3.9-inches of plenum space. An extremely versatile LED package delivers class leading performance in even the tightest of plenum spaces. The luminaire comes in specification grade trims in 5 distinct finishes and a choice of outputs, CCT’s, CRI options, beam spreads and accessories.
Product Information
Product Features
Aperture Size : 4 in
Application : Downlight
Construction Type : Shallow,New Construction
Family : Gravity
Light Source : LED
Light Source Features : Tunable White
Listings : Energy Star,Wet Location
Lumen Output : 1001-1500,1501-2000,2001-3000,3001-4000,4001-5000
Product Shape : Square
Product Type : Recessed
Trim Type : Trim
FEATURES
■ High delivered lumens maintained in ceiling from 1/2” to 2 1/4” using patent pending design
■ Future proof luminaire with easy module install via twist-to-lock mounting and driver access through raised junction box
LED LIGHT ENGINE
■ 10W, 14W, 19W, 24W, 29W, 34W, 41W, 46W & 56W
■ 82/92 CRI at 2700K, 3000K, 3500K & 4000K with 2 Step MacAdam (2 SDCM)
■ Rated life of >50,000 hours L70 based on LED testing per LM-80-08 and projected values using IESNA TM21-11
