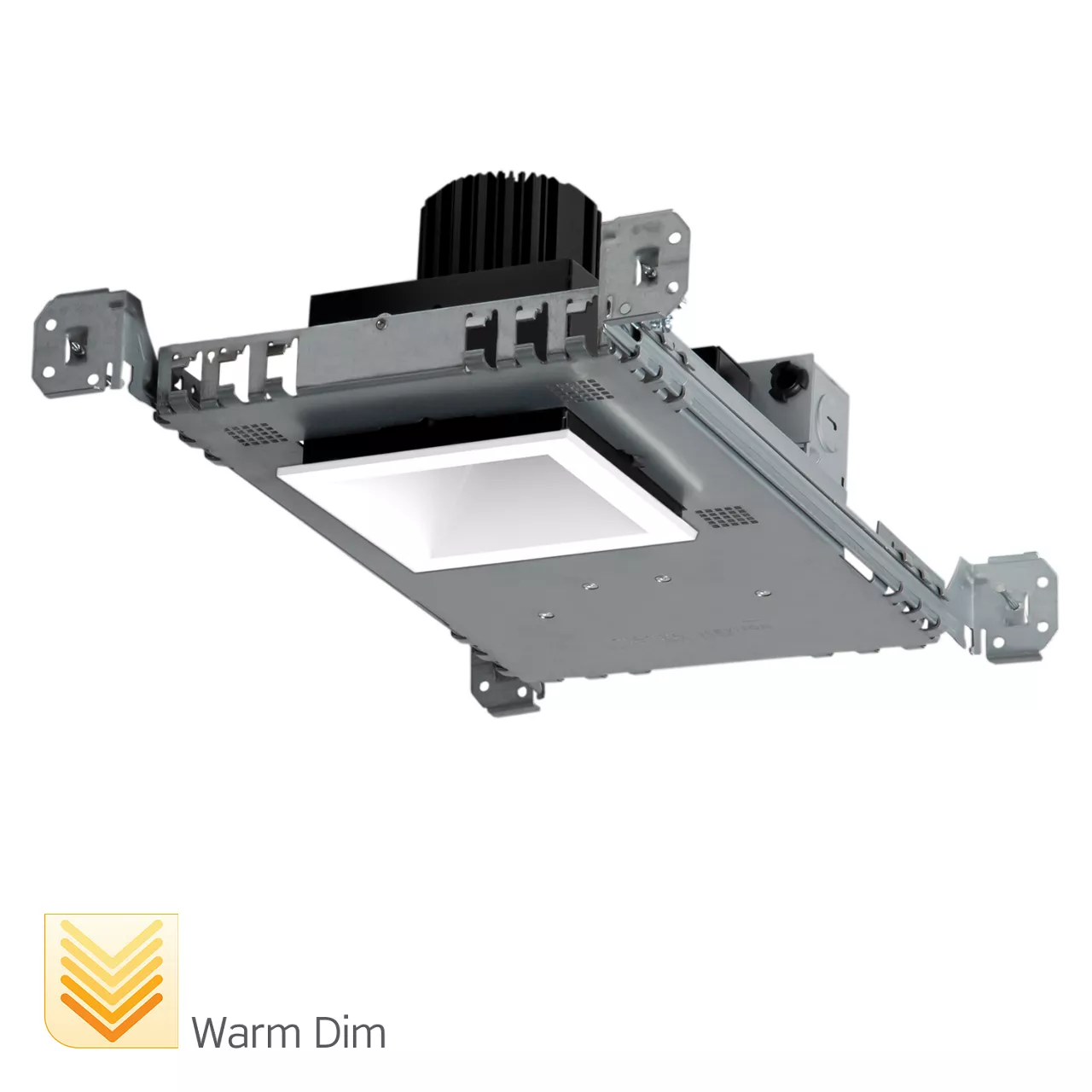

3.5" MX Naked G2 Square Warm Dim LED Downlight
MXFG2DSTR Warm Dim
MX Naked Warm Dim matches the look and performance of the standard MX Warm Dim downlight from below the ceiling in an economical Non-IC design. With a new shallow housing option measuring under 4-inches and an in-field adjustable collar, MX Naked provides even more options in an affordable open frame housing. Color temperature options range from 3000k to 1800K in 92 CRI. Standard 1%, 0-10V dimming with phase and Lutron options available as well as EM.
Specifications
Instruction Sheet
IES
Technical Information
Product Features
Aperture Size : 3-1/2-In,4-In
Product Category : Downlight
Construction Type : New Construction
Product Family : MX
Listings : Wet Location,Non-IC
Lumen Output : 501-1000,1001-1500
Product Shape : Square
Product Type : Downlight
Trim Type : Regressed,Trimless Regressed,Pinhole,Lensed/Wet Location
Emergency Battery Back-up : Y
Light Source Features : Warm Dim
Features & Benefits
LED Light Engine
- 92 CRI & 82 CRI in 2700K, 3000K, 3500K and 4100K with 2 SDCM binning
- >50,000 hours L70 (rated life at 70% output)
