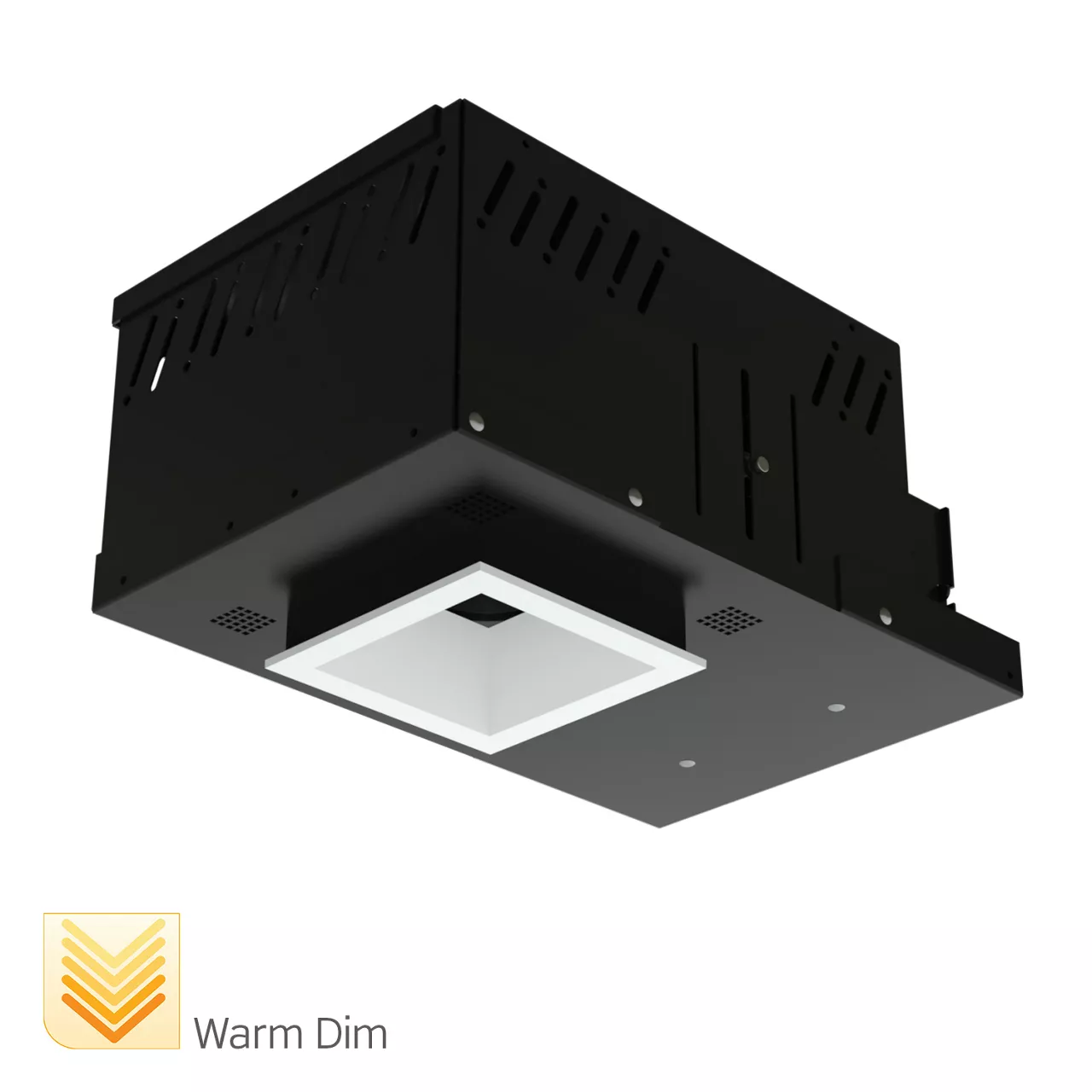

3.5" MX G2 LED Square Downlight Warm Dim
MXG2DSTR Warm Dim
3.5" MX G2 LED Square Downlight Warm Dim
MX downlight Warm Dim features a compact yet powerful light engine inside a 3.5” aperture, shallow housing form factor. Custom, high performance TIR optics ranging from 24° to 50° deliver quality light precisely where you need it. A common platform across the entire family featuring 2 SDCM and four versatile lumen packages makes specifying easy. Architectural grade die cast trims are available in a variety of standard finishes and can be configurable in round, square, trim and trimless options. Non-IC, Air-Tight IC, and CCEA (Chicago Plenum) housing forms are available with the latest in dimming technology including flicker free.
Specifications
Instruction Sheet
Resources
IES
Technical Information
Product Features
Aperture Size : 3-1/2-In,4-In
Product Category : Downlight
Construction Type : New Construction
Product Family : MX
Light Source Features : Warm Dim
Listings : Title 24 Part 6 JA8,Wet Location,ASTM E283 Air-Tight Insulated Ceiling (IC),Non-IC
Lumen Output : 501-1000,1001-1500
Product Shape : Square
Product Type : Downlight
Trim Type : Regressed,Non-Conductive,Wood Ceiling,Pinhole,Lensed/Wet Location
Emergency Battery Back-up : Y
Standards and Certifications
Buy American Act (BAA) Compliant : Yes
Features & Benefits
FEATURES
- Halogen style profile that warms as it dims
- 3000K at full intensity to 1800K at lowest dim level
- Multiple architectural trim options available
- Field changeable optics: 24°, 30°, 45°
LED LIGHT ENGINE
- 3000K to 1800K programmable tuning at 92 CRI
- 50,000 hours L70 (rated life at 70% output)
TRIM SPECIFICATION
- High quality A380 aluminum die-cast trims
