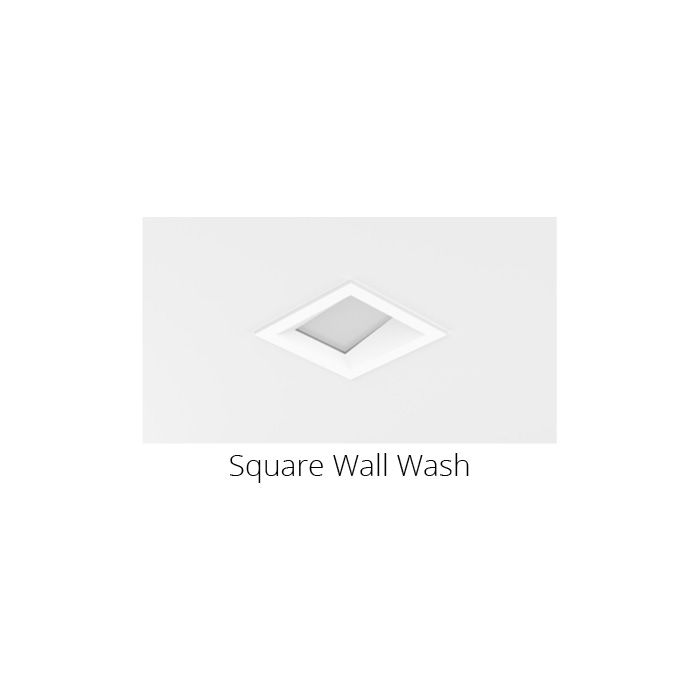

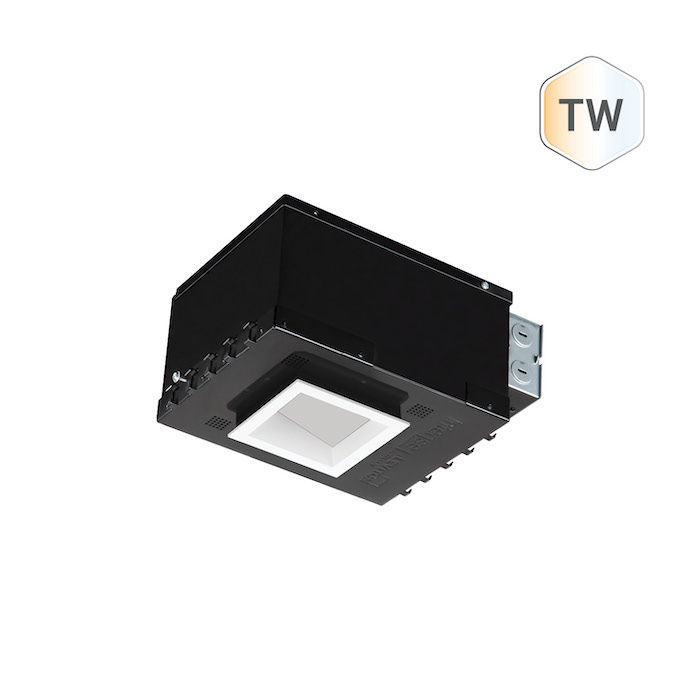

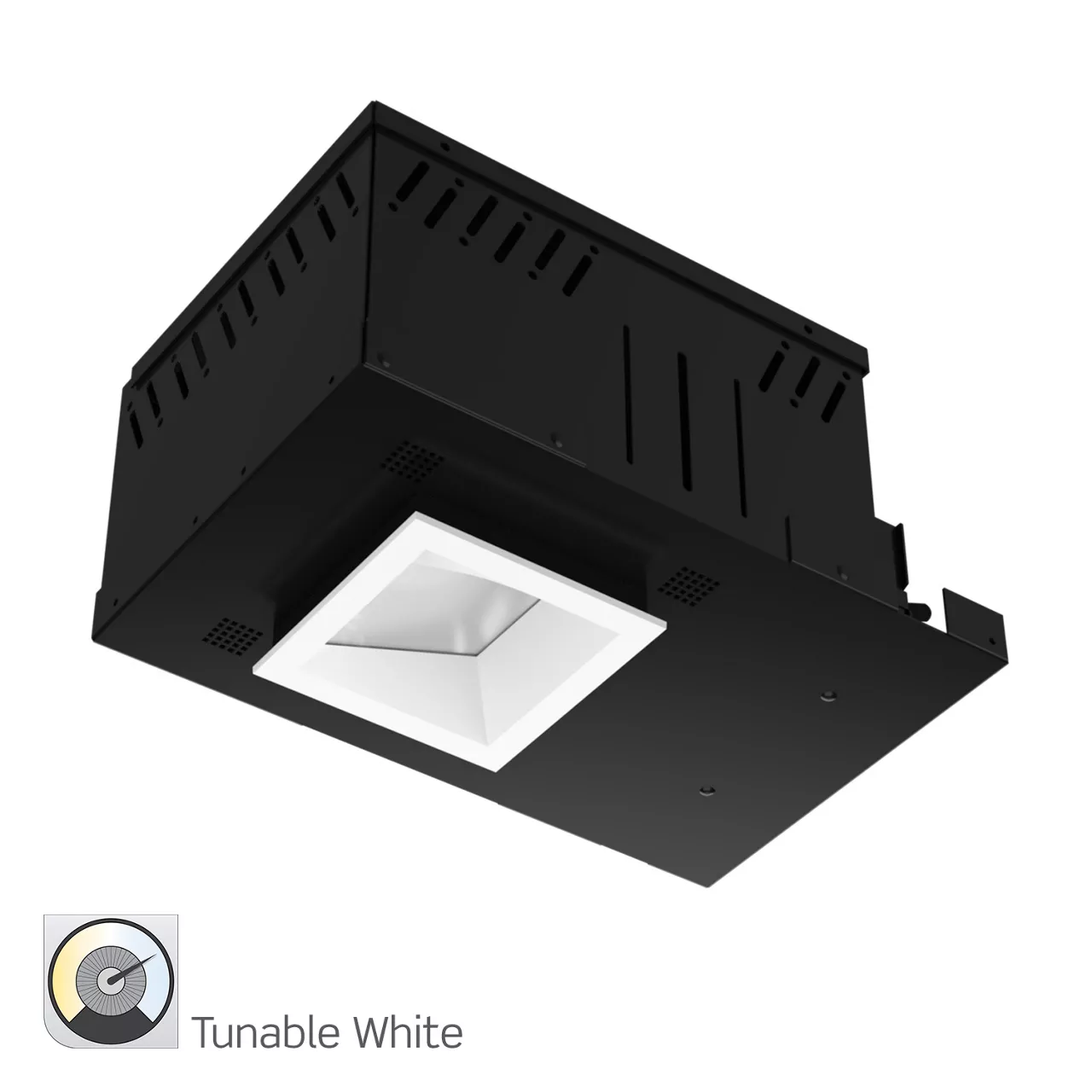

3.5" MX G2 Square Tunable White Wall Wash

MXG2WSTRTW

p.p1 {margin: 0.0px 0.0px 12.0px 36.0px; text-indent: -36.0px; line-height: 14.0px; font: 14.0px 'Helvetica Neue'; color: #000000; -webkit-text-stroke: #000000} span.s1 {font-kerning: none} MX Tunable White downlighting features a compact yet powerful light engine inside a 3.5” aperture. Custom, high performance TIR optics ranging from 14° to 45° deliver quality light precisely where you need it. A common platform across the entire family featuring 90 CRI TunableWhite (6500K- 2700K) and three versatile lumen packages makes specifying easy. Smooth, flicker-free architectural dimming options include 0-10V, DALI, DMX, and EldoLED down to 0.1%. Die cast trims are available in a variety of standard finishes and can be configurable in round, square, trim and trimless options

Country of Origin: Please Contact Customer Service

Product Information

  • Product Features

    Aperture Size : 3-1/2 in,4 in

    Application : Wall Wash

    Construction Type : New Construction

    Family : MX

    Light Source : LED

    Light Source Features : Tunable White

    Listings : Non-IC,Air-Tight IC

    Lumen Output : 501-1000

    Product Shape : Square

    Product Type : Recessed

    Trim Type : Trim



features

  • Multiple architectural trim option
  • Field changeable 14° 26°, 30° or 45° optics

led light engine

  • Tuning range from 2700K-6500K at a minimum of 92 CR
  • 3 SDCM binning throughout the tunable CCT range
  • Wattage: 8W to 17W
  • Rated life of >50,000 hours L70 based on LED testing per LM-80-08 and projected values using IESNA TM21-11
